Model # 642459370 Official Sears 12" boys' bmx bicycle

Here are the diagrams and repair parts for Official Sears 642459370 12" boys' bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Screw JB302620
#18B

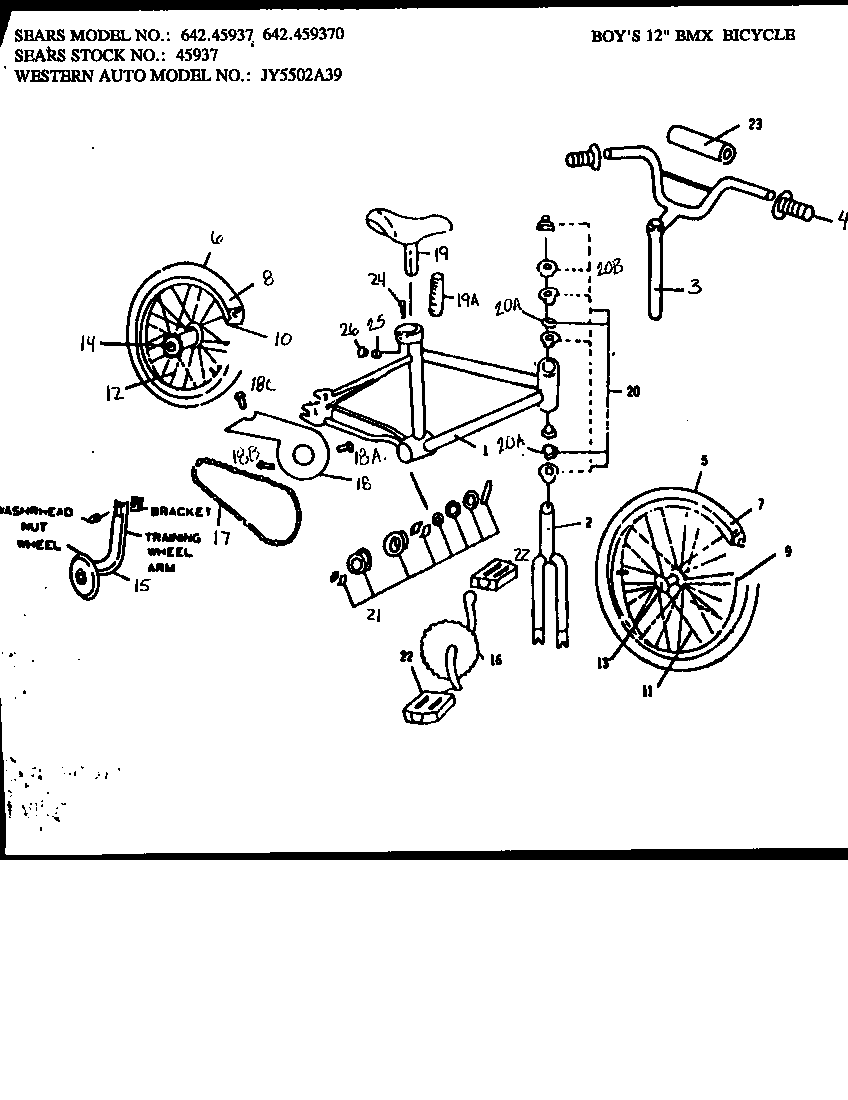

Boy's 12" bmx bicycle diagram

Screw

Part #JB302620

The manufacturer no longer makes this part, and there's no substitute part

Rr Coaster JB302614
#14

Boy's 12" bmx bicycle diagram

Rr coaster

Part #JB302614

The manufacturer no longer makes this part, and there's no substitute part

Screw JB302630
#24

Boy's 12" bmx bicycle diagram

Screw

Part #JB302630

The manufacturer no longer makes this part, and there's no substitute part

Handlebar JB302603
#3

Boy's 12" bmx bicycle diagram

Handlebar

Part #JB302603

The manufacturer no longer makes this part, and there's no substitute part

Frt Spoke JB302611
#11

Boy's 12" bmx bicycle diagram

Frt spoke

Part #JB302611

The manufacturer no longer makes this part, and there's no substitute part

Ball Retainr JB302625
#20A

Boy's 12" bmx bicycle diagram

Ball retainr

Part #JB302625

The manufacturer no longer makes this part, and there's no substitute part

Nut JB302632
#26

Boy's 12" bmx bicycle diagram

Nut

Part #JB302632

The manufacturer no longer makes this part, and there's no substitute part

Frt Hub JB302613
#13

Boy's 12" bmx bicycle diagram

Frt hub

Part #JB302613

The manufacturer no longer makes this part, and there's no substitute part

Decal JB302633

#NI

All parts diagram

Decal

Part #JB302633

The manufacturer no longer makes this part, and there's no substitute part

Grip JB302604
#4

Boy's 12" bmx bicycle diagram

Grip

Part #JB302604

The manufacturer no longer makes this part, and there's no substitute part
