Craftsman
Router

Model # 315175342 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315175342 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

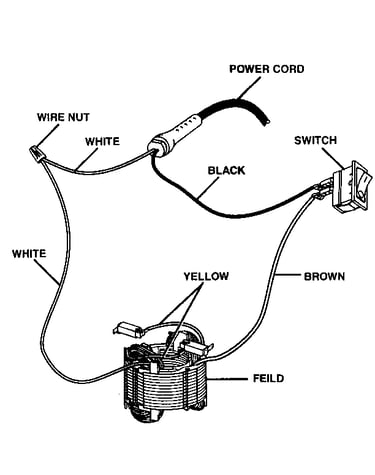

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Router Screw, #8-18 X 3/4-in 660133007
#NI

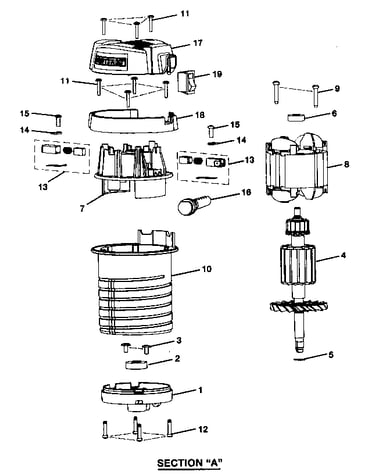

Motor assy diagram

Router screw, #8-18 x 3/4-in

Part #660133007

The manufacturer no longer makes this part, and there's no substitute part

Lower Top 342026001
#18

Motor assy diagram

Lower top

Part #342026001

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 200215010
#8

Motor assy diagram

Field assembly

Part #200215010

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 730377005
#16

Motor assy diagram

Power cord

Part #730377005

The manufacturer no longer makes this part, and there's no substitute part

Router Motor Housing 511986001
#10

Motor assy diagram

Router motor housing

Part #511986001

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 671457001
#2

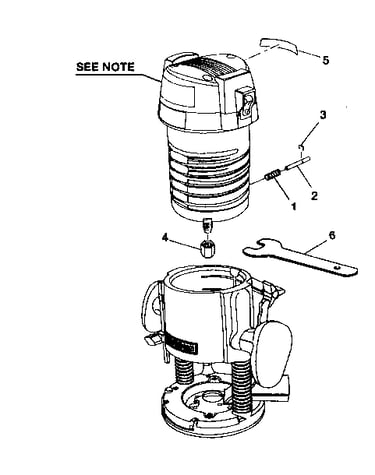

Housing assy diagram

Lock pin

Part #671457001

The manufacturer no longer makes this part, and there's no substitute part

Switch 760357001
#19

Motor assy diagram

Switch

Part #760357001

The manufacturer no longer makes this part, and there's no substitute part

Ring 671399001
#5

Motor assy diagram

Ring

Part #671399001

The manufacturer no longer makes this part, and there's no substitute part

Bearing Plate 511982001
#7

Motor assy diagram

Bearing plate

Part #511982001

The manufacturer no longer makes this part, and there's no substitute part

Upper Top 342025002
#17

Motor assy diagram

Upper top

Part #342025002

The manufacturer no longer makes this part, and there's no substitute part
