Jenn-Air JGC9430BDF13 36" gas cooktop Parts

Name: Jenn-Air JGC9430BDF13 Parts | Diagrams, Installation guides | Sears PartsDirect
Brand: Jenn-Air
SKU: JGC9430BDF13
Availability: InStock

Here are the diagrams and repair parts for Jenn-Air JGC9430BDF13 36" gas cooktop, as well as links to manuals and error code tables, if available.

Installation guide

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forJGC9430BDF13 Cooktops

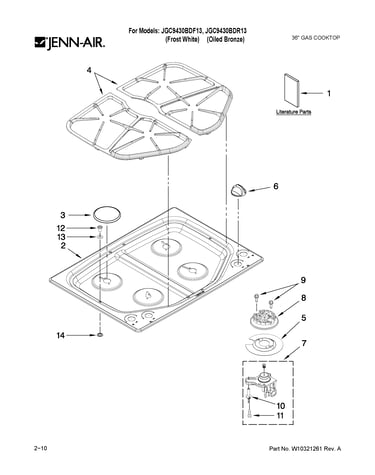

Cooktop, burner and grate parts diagram
Screw (tog 7
Part #7101P685-60
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Igniter
Part #7432P121-60
Replaced by #WP74009336
Manufacturer substitution
This part replaces 7432P121-60. Substitute parts can look different from the original.
In Stock
$29.20
17% OFF Phone Price : $35.20
Qty
Burner box, gas valves, and switches diagram
Module- Sp
Part #7431P038-60
Replaced by #WPW10475147
Manufacturer substitution
This part replaces 7431P038-60. Substitute parts can look different from the original.
In Stock
$199.83
6% OFF Phone Price : $211.83
Qty
Cooktop, burner and grate parts diagram
Burner Assembly
Part #7505P305-60
Replaced by #74007735
Manufacturer substitution
This part replaces 7505P305-60. Substitute parts can look different from the original.
In Stock
$71.40
8% OFF Phone Price : $77.40
Qty
Burner box, gas valves, and switches diagram
Switch- Bu
Part #7403P818-60
Replaced by #WP74007753
Manufacturer substitution
This part replaces 7403P818-60. Substitute parts can look different from the original.
In Stock
$29.68
17% OFF Phone Price : $35.68
Qty
Cooktop, burner and grate parts diagram
Holder, Orif
Part #7527P042-60
In Stock
$63.25
Qty
Cooktop, burner and grate parts diagram
Burner Assem
Part #7505P304-60
In Stock
$76.95
Qty
Optional parts (not included) diagram
Cooktop Wire Harness
Part #W10173478
In Stock
$180.52
Qty
Cooktop, burner and grate parts diagram
Burner Cap
Part #7504P202-60
Replaced by #WP8284669
Manufacturer substitution
This part replaces 7504P202-60. Substitute parts can look different from the original.
In Stock
$55.43
10% OFF Phone Price : $61.43
Qty
Cooktop, burner and grate parts diagram
Cooktop Burner Knob
Part #W10168628
Replaced by #WPW10168628
Manufacturer substitution
This part replaces W10168628. Substitute parts can look different from the original.
In Stock
$112.08
Qty
