Model # 7218815181 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218815181 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

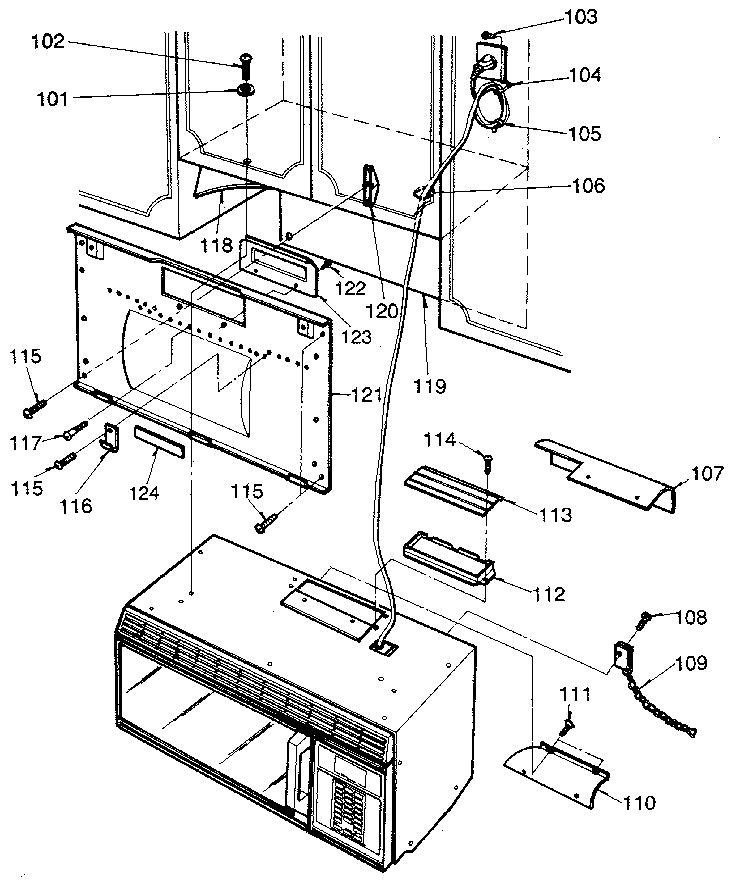

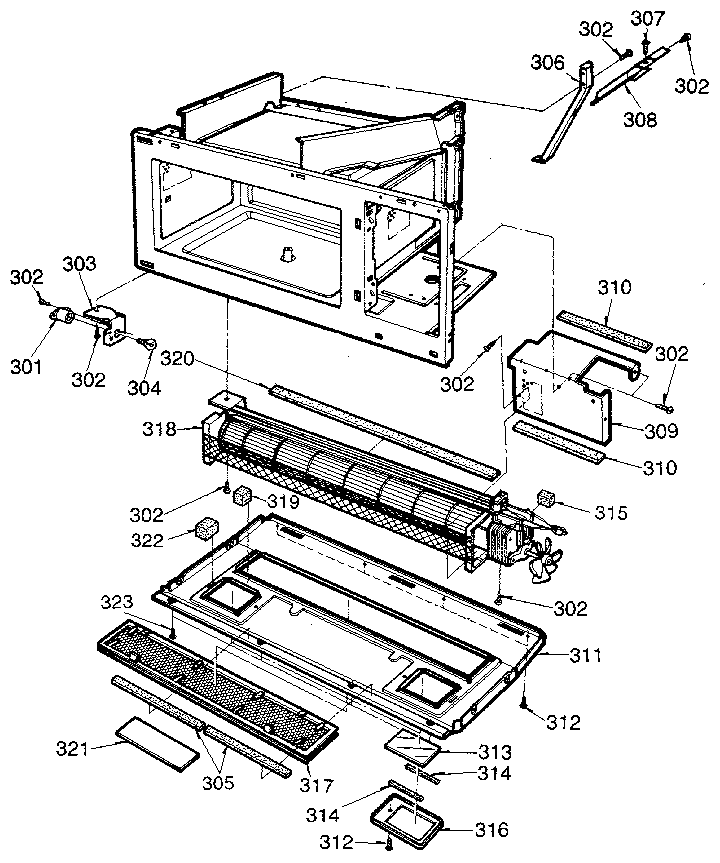

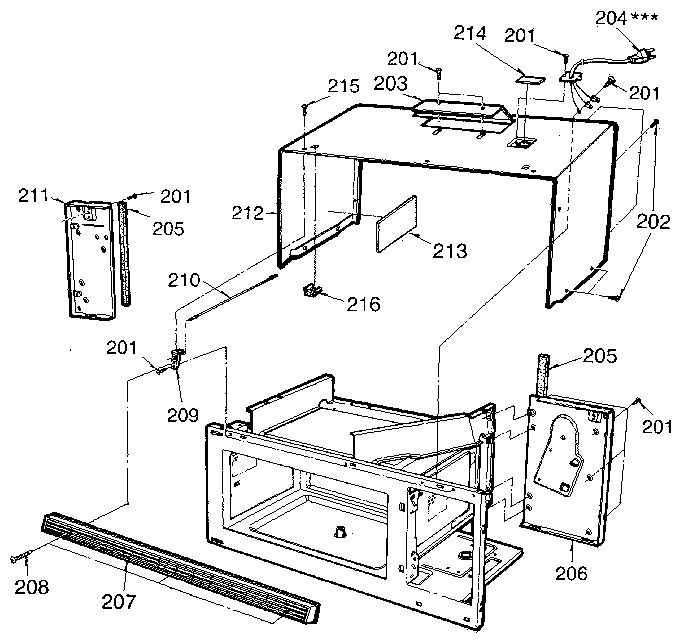

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |
Magnetron 500859
#603

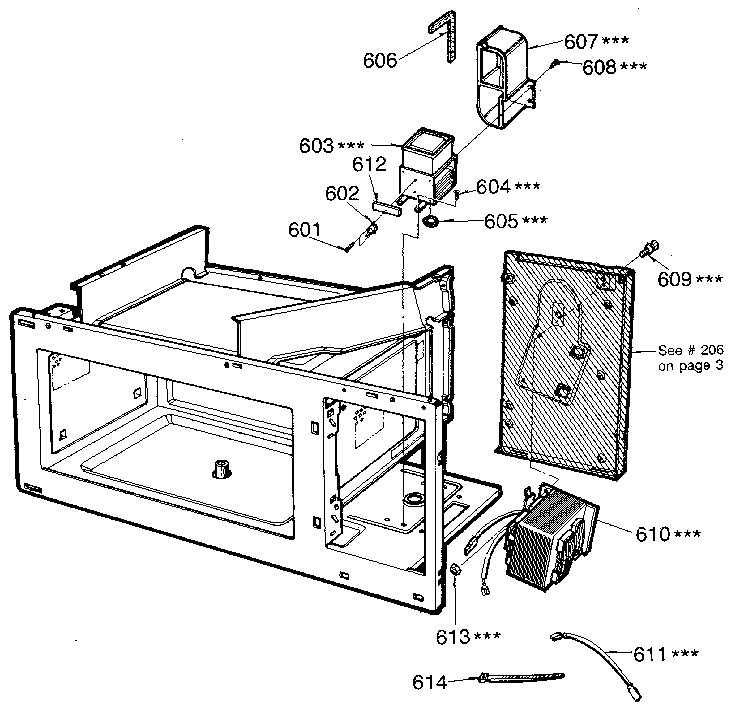

Microwave diagram

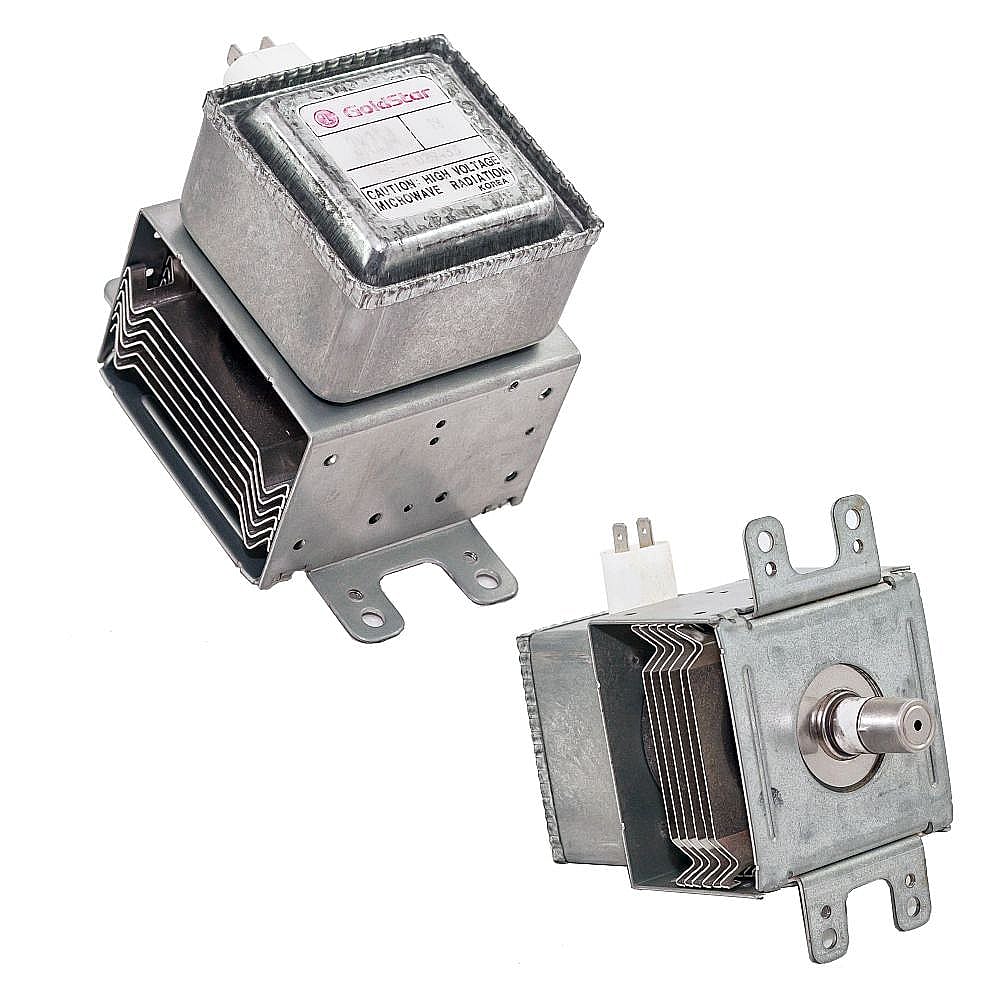

Magnetron

Part #500859

The manufacturer no longer makes this part, and there's no substitute part

Screw 500063
Screw

Part #500063

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500010
#25

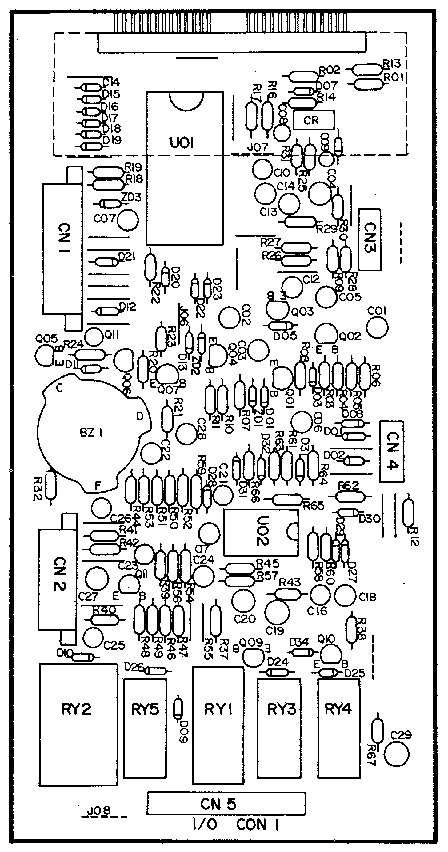

Power & control circuit board diagram

Capacitor

Part #500010

The manufacturer no longer makes this part, and there's no substitute part

Zener Diode 500777
#61

Power & control circuit board diagram

Zener diode

Part #500777

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500274
#11

Power & control circuit board diagram

Capacitor

Part #500274

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 500011
#1

Power & control circuit board diagram

Capacitor

Part #500011

The manufacturer no longer makes this part, and there's no substitute part

Screw Specil 500396
#528

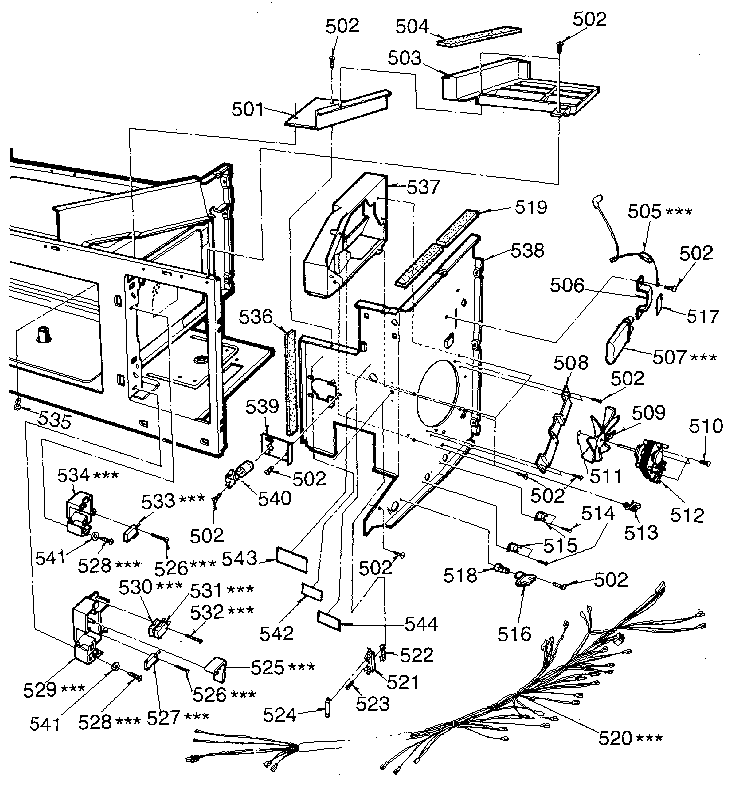

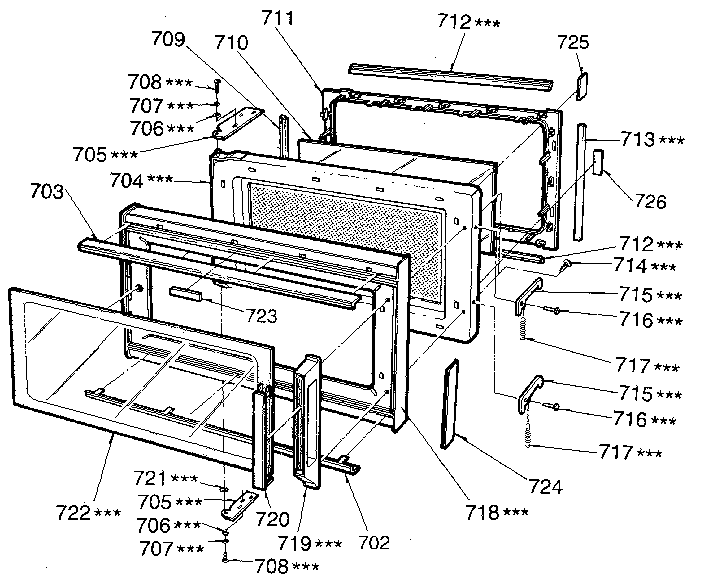

Switches and microwave diagram

Screw specil

Part #500396

The manufacturer no longer makes this part, and there's no substitute part

Fuse 15a 500081
#524

Switches and microwave diagram

Fuse 15a

Part #500081

The manufacturer no longer makes this part, and there's no substitute part

Cushion 500830
#406

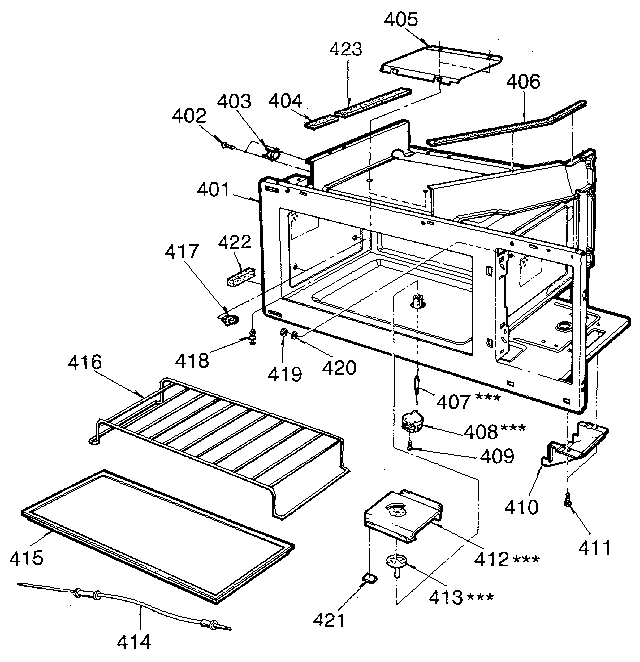

Cavity diagram

Cushion

Part #500830

Replaced by #3B72244K

?
Manufacturer substitution
This part replaces 500830. Substitute parts can look different from the original.
This item is not returnable
$4.51
In Stock
Capacitor 500773
#21

Power & control circuit board diagram

Capacitor

Part #500773

The manufacturer no longer makes this part, and there's no substitute part
