Model # IBMS1456XS0 Official Ikea built-in microwave

Here are the diagrams and repair parts for Official Ikea IBMS1456XS0 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

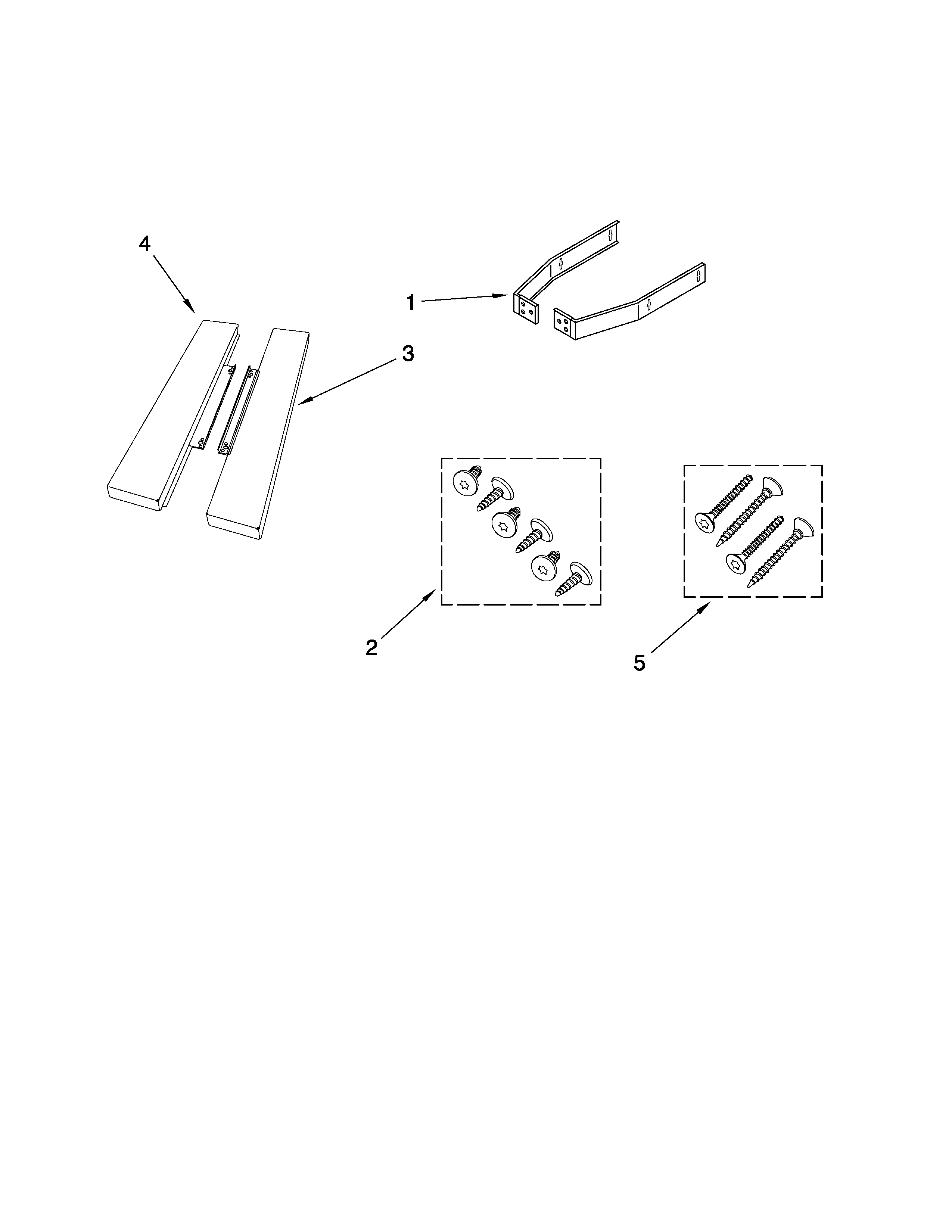

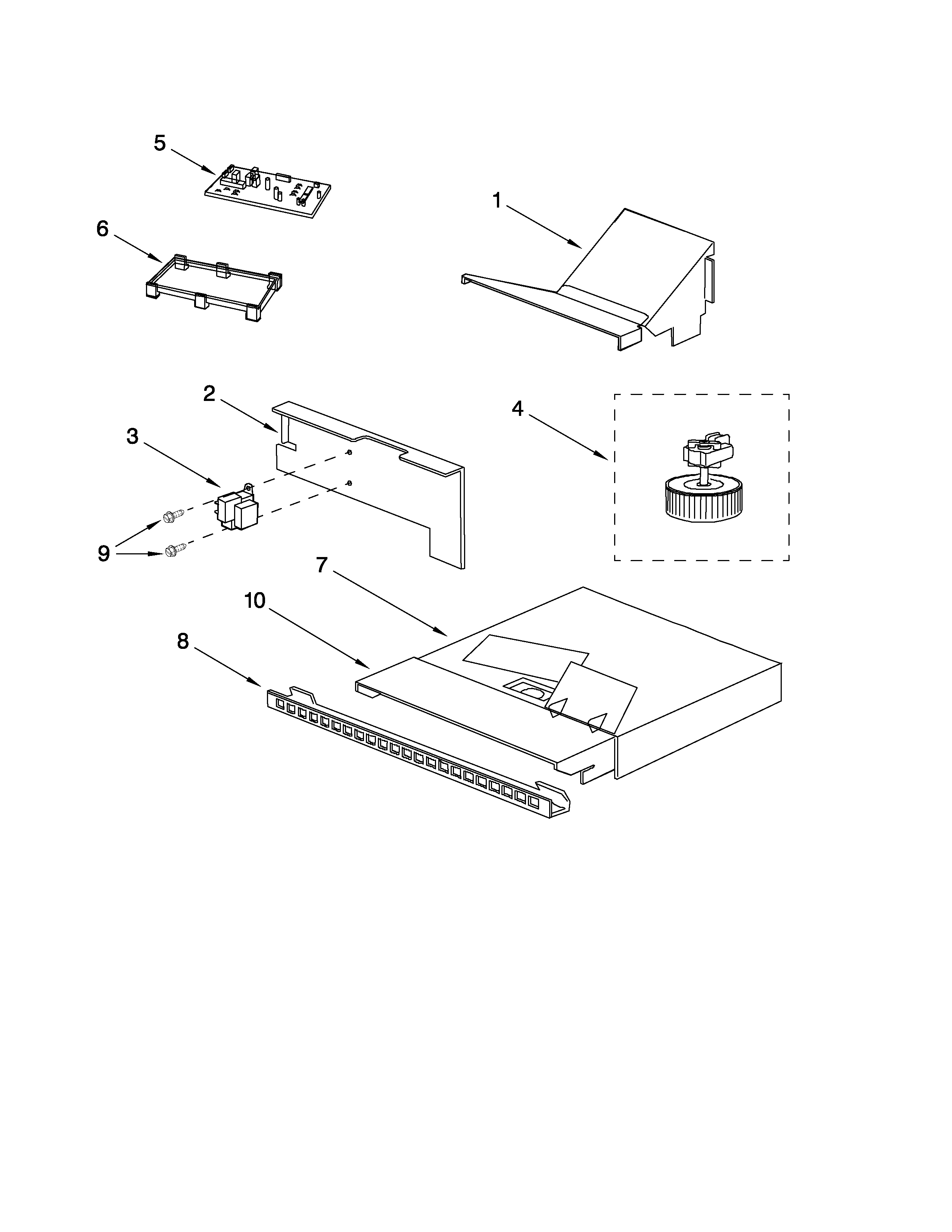

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |

Microwave Door Interlock Switch 4375346
#11

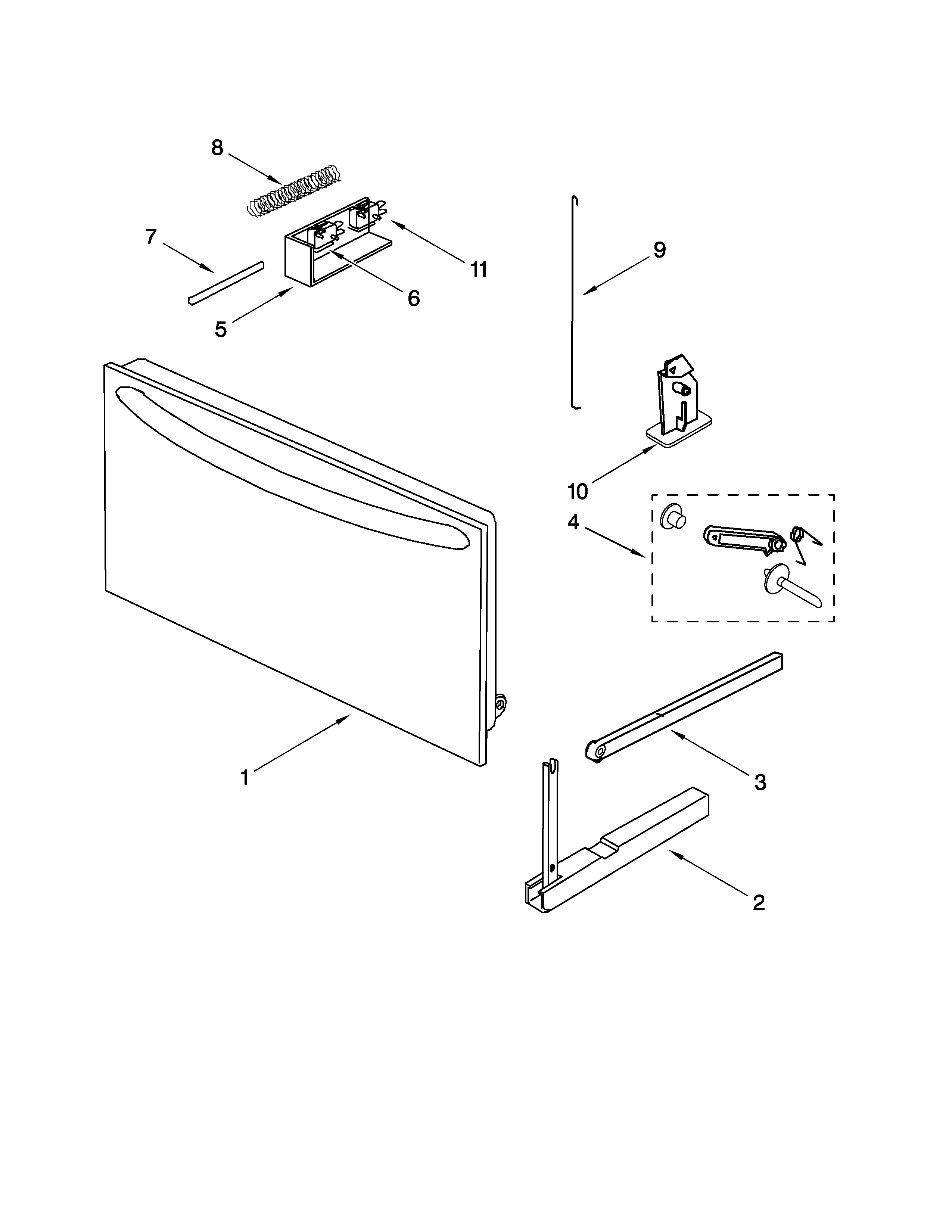

Door parts diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$25.98
53% OFF MSRP : $55.00
In Stock
Switch W10217468
#6

Door parts diagram

Switch

Part #W10217468

Replaced by #W10211972

?
Manufacturer substitution
This part replaces W10217468. Substitute parts can look different from the original.
BEST SELLER
$25.98
53% OFF MSRP : $55.00
In Stock
Microwave Button Holder W10251250
#7

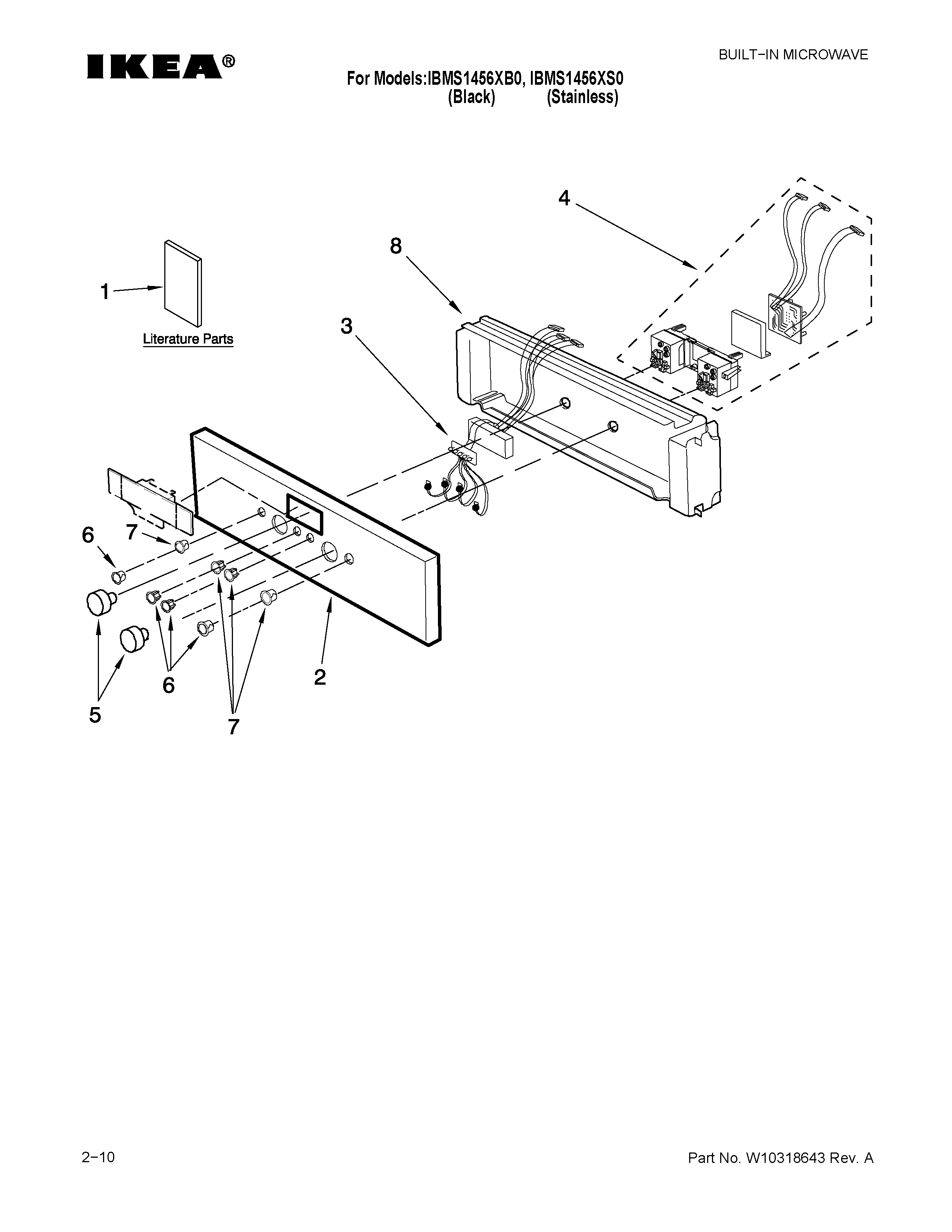

Control parts diagram

Microwave button holder

Part #W10251250

Replaced by #W11116990

?
Manufacturer substitution
This part replaces W10251250. Substitute parts can look different from the original.
This item is not returnable
$20.19
20% OFF Phone Price : $25.19
In Stock
Microwave Door W10317084
#1A

Door parts diagram

Microwave door

Part #W10317084

In Stock
Release Rod W10217473
#7

Door parts diagram

Release rod

Part #W10217473

Replaced by #WPW10120235

?
Manufacturer substitution
This part replaces W10217473. Substitute parts can look different from the original.
This item is not returnable
$7.49
12% OFF Phone Price : $8.49
In Stock
Microwave Turntable Motor Coupler 8205539
#22

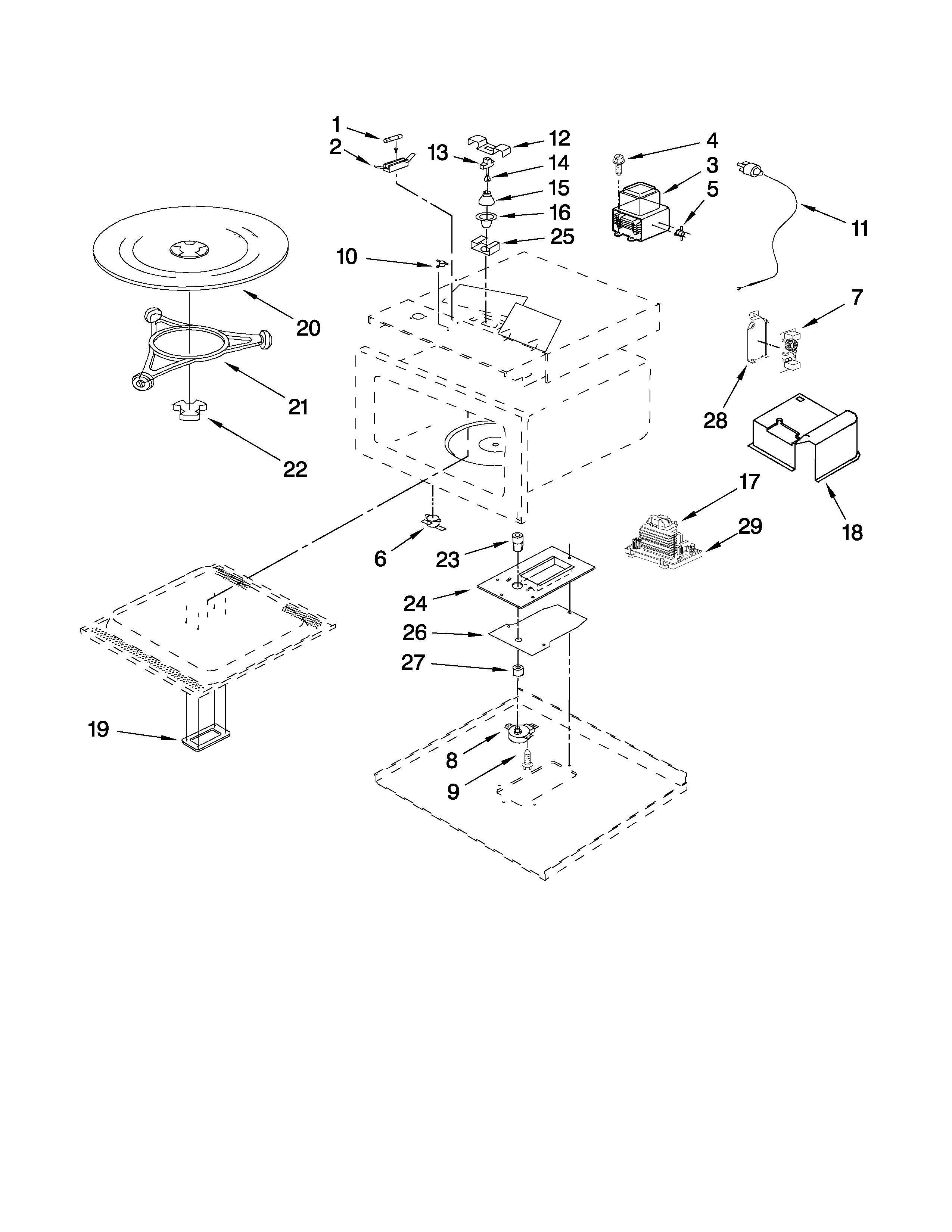

Oven interior parts diagram

Microwave turntable motor coupler

Part #8205539

Replaced by #W11223840

?
Manufacturer substitution
This part replaces 8205539. Substitute parts can look different from the original.
$21.09
19% OFF Phone Price : $26.09
In Stock
Microwave Turntable Motor Coupler 8205682
#23

Oven interior parts diagram

Microwave turntable motor coupler

Part #8205682

Replaced by #W11126044

?
Manufacturer substitution
This part replaces 8205682. Substitute parts can look different from the original.
This item is not returnable
$19.59
9% OFF Phone Price : $21.59
In Stock
Fuse (black) 4375321
#1

Oven interior parts diagram

Fuse (black)

Part #4375321

Replaced by #WP4375321

?
Manufacturer substitution
This part replaces 4375321. Substitute parts can look different from the original.
$12.46
50% OFF MSRP : $25.00
In Stock
Holder W10130891
#28

Oven interior parts diagram

Holder

Part #W10130891

In Stock
Trim W10317082
#1A

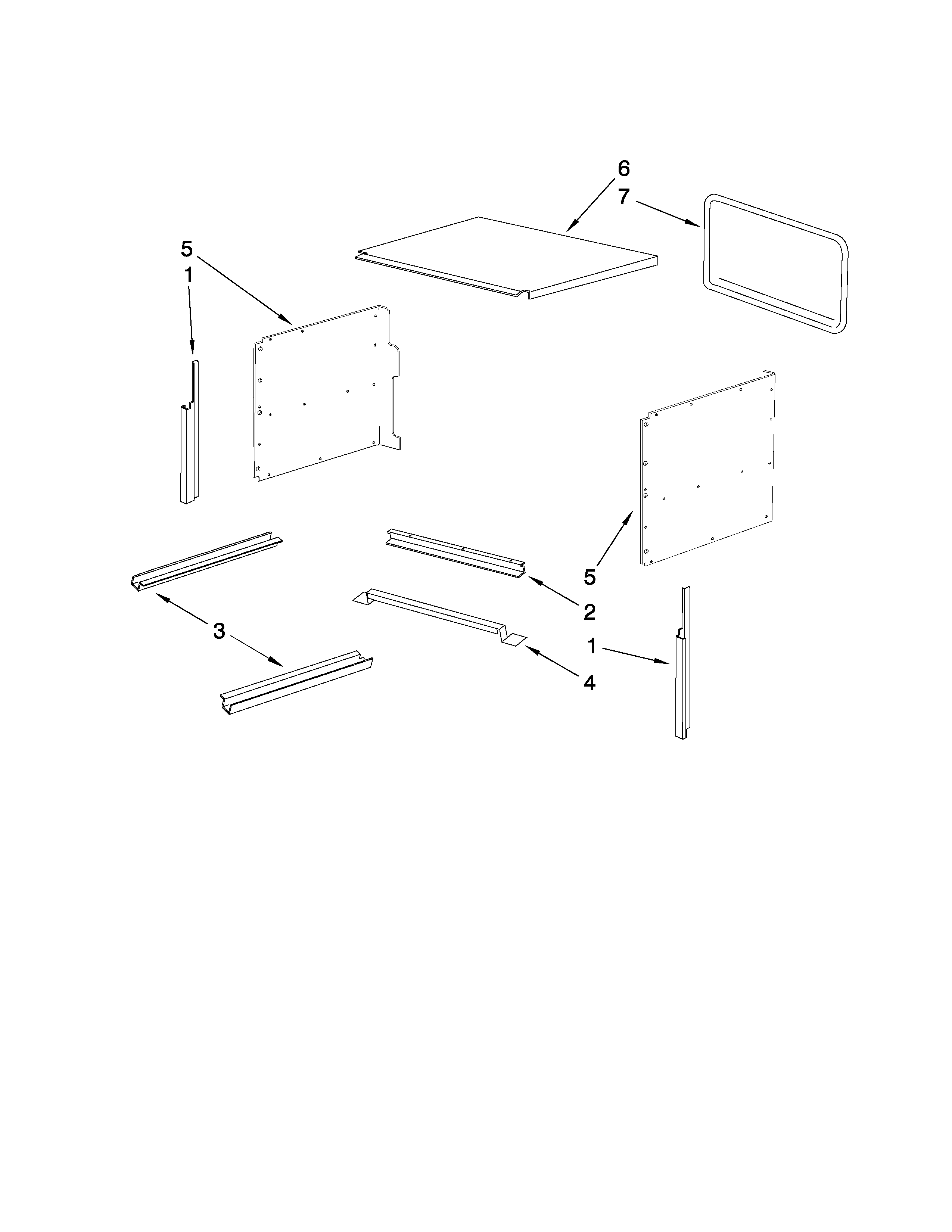

Cabinet parts diagram

Trim

Part #W10317082

In Stock
