Dacor
Built-In Microwave

Model # MMDV30S Official Dacor microwave in-a-drawer

Here are the diagrams and repair parts for Official Dacor MMDV30S microwave in-a-drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Microwave Stirrer Fan Cover Clip 66214
#3-17

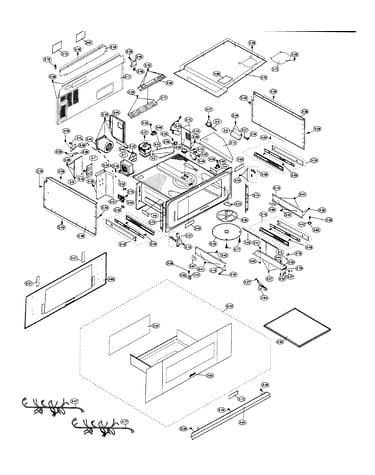

Cabinet parts diagram

Microwave stirrer fan cover clip

Part #66214

This item is not returnable
In Stock
Choke Cover 101261
#3-60

Cabinet parts diagram

Choke cover

Part #101261

In Stock
Cushion-a 101210
#2-5

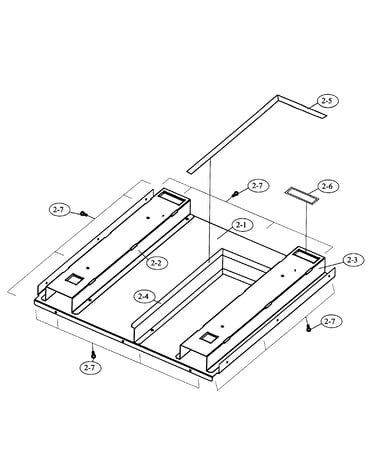

Base assy diagram

Cushion-a

Part #101210

In Stock
Screw 101216
#3-05

Cabinet parts diagram

Screw

Part #101216

This item is not returnable
In Stock
Monitor Switch 66006
Monitor switch

Part #66006

In Stock
Microwave Lamp 101259
#3-57

Cabinet parts diagram

Microwave lamp

Part #101259

This item is not returnable
In Stock
Pcb Control 101199
#1-1

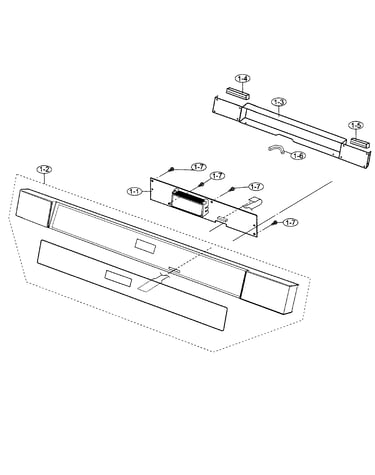

Trim assy diagram

Pcb control

Part #101199

In Stock
Rack Gear 101270
#369

Cabinet parts diagram

Rack gear

Part #101270

In Stock
Cushion 101204
#1-5

Trim assy diagram

Cushion

Part #101204

This item is not returnable
In Stock
Microwave Door Interlock Switch 66236
#3-53

Cabinet parts diagram

Microwave door interlock switch

Part #66236

The manufacturer no longer makes this part, and there's no substitute part
