Craftsman
Reel Walk-Behind Mower

Model # 53691011 Official Craftsman 18" lawn mower

Here are the diagrams and repair parts for Official Craftsman 53691011 18" lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

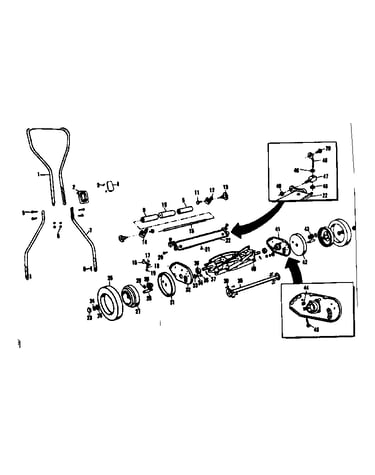

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |

Bolt 120230
#11

Replacement parts diagram

Bolt

Part #120230

The manufacturer no longer makes this part, and there's no substitute part

Screw 121887
#21

Replacement parts diagram

Screw

Part #121887

The manufacturer no longer makes this part, and there's no substitute part

Washer 274517
#33

Replacement parts diagram

Washer

Part #274517

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997314
#6

Replacement parts diagram

Lock nut

Part #997314

The manufacturer no longer makes this part, and there's no substitute part

Axle Washer 642
#25

Replacement parts diagram

Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49
11% OFF Phone Price : $9.49
In Stock
Lock Washer 120382
#34

Replacement parts diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Screw 999602
#45

Replacement parts diagram

Screw

Part #999602

Replaced by #650517

?
Manufacturer substitution
This part replaces 999602. Substitute parts can look different from the original.
This item is not returnable
In Stock
Tire 27798
#26

Replacement parts diagram

Tire

Part #27798

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 35930
#4

Replacement parts diagram

Logo plate

Part #35930

The manufacturer no longer makes this part, and there's no substitute part

Square Nut 120372
#44

Replacement parts diagram

Square nut

Part #120372

The manufacturer no longer makes this part, and there's no substitute part
