Panasonic
Plasma Television

Model # TH-42PWD5 Official Panasonic wide plasma display television

Here are the diagrams and repair parts for Official Panasonic TH-42PWD5 wide plasma display television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

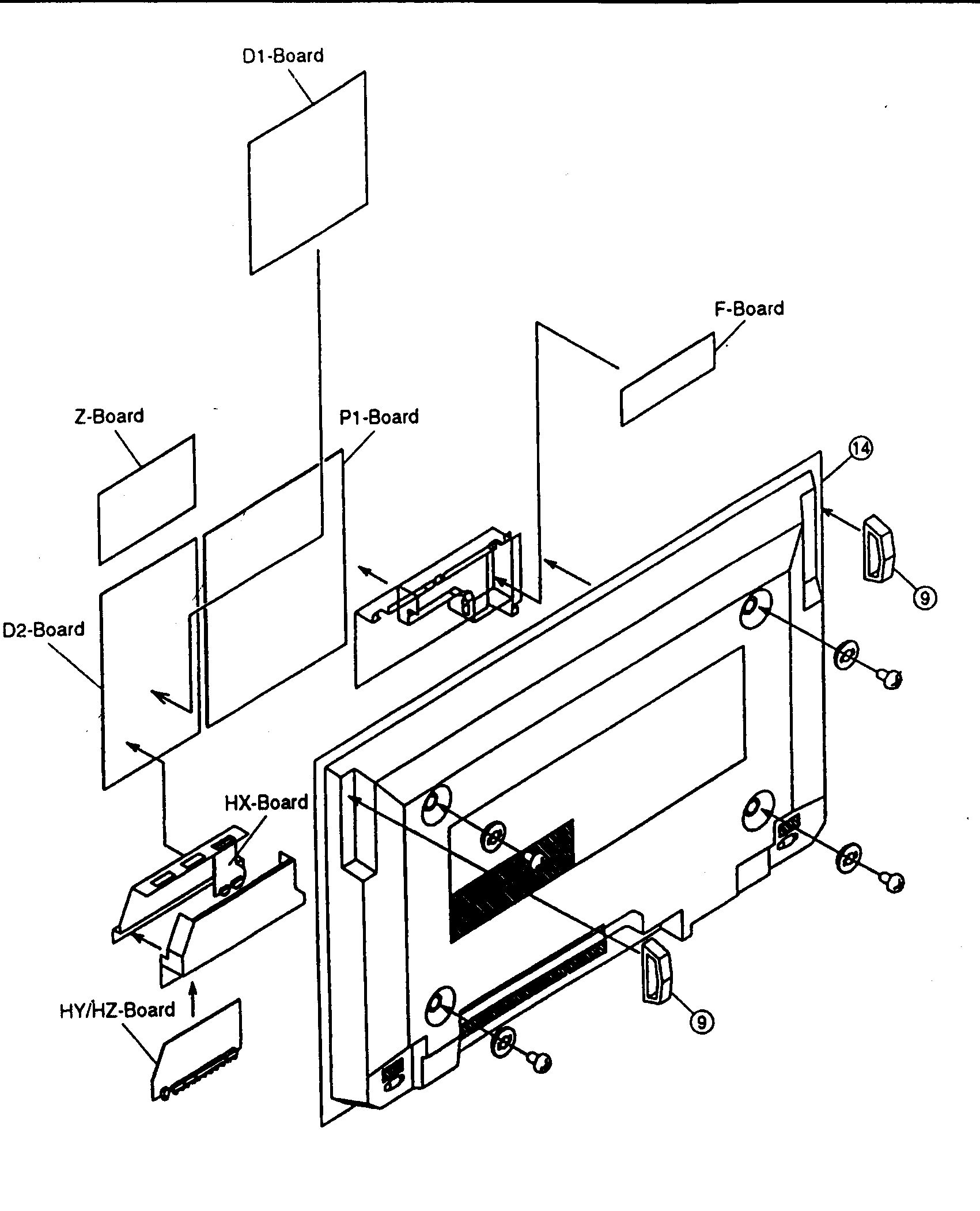

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Varistor ERZV10V621P2
#NI

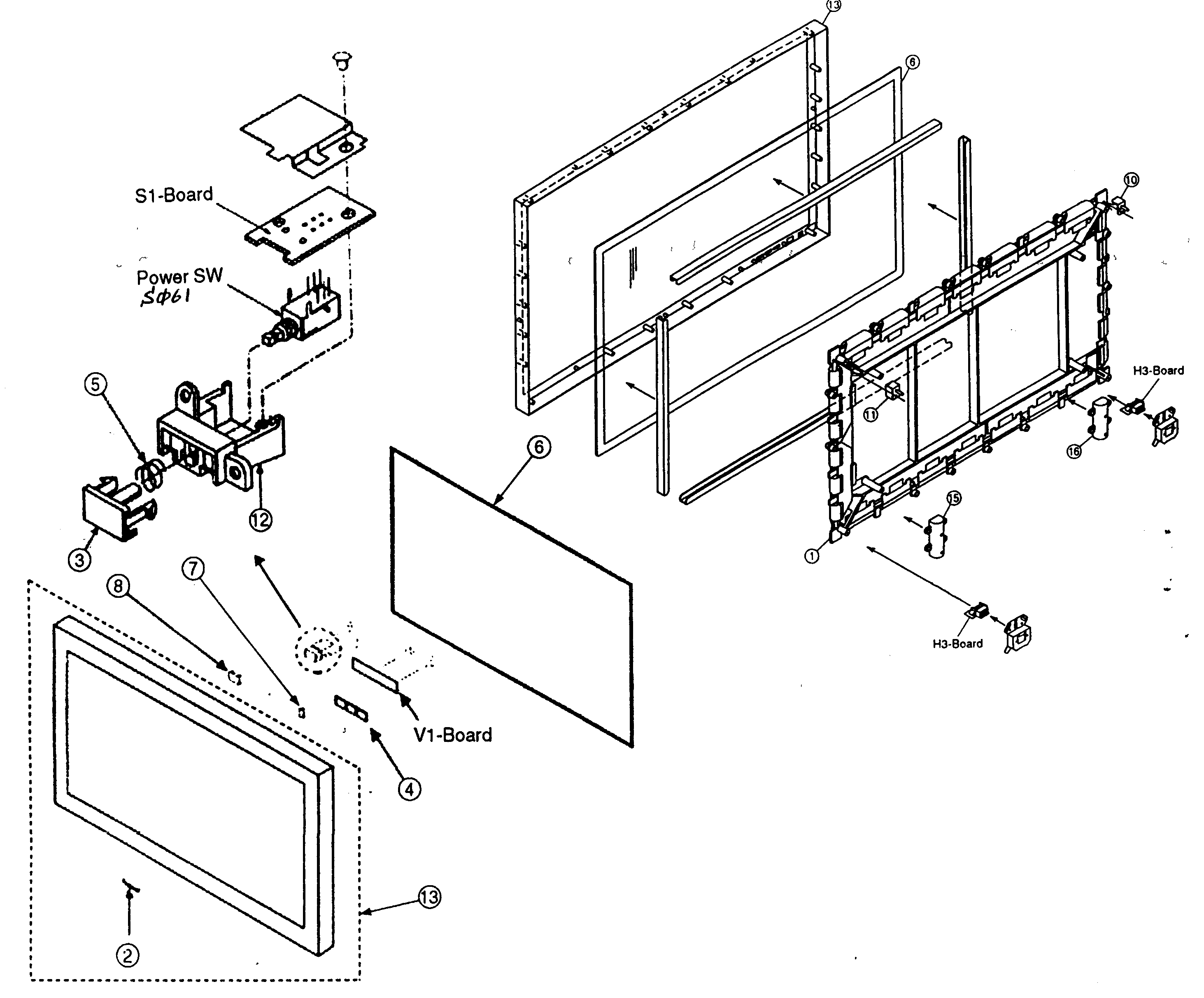

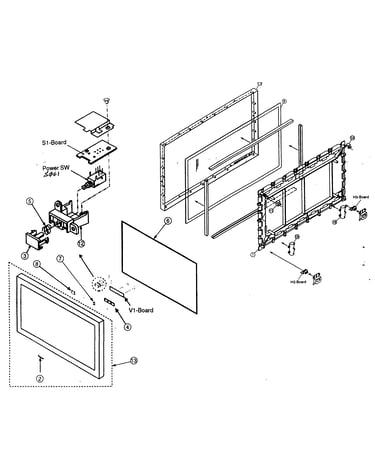

Front cabinet parts diagram

Varistor

Part #ERZV10V621P2

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit STRF6629B
#NI

Front cabinet parts diagram

Integrated circuit

Part #STRF6629B

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon TTEA0090
#13

Front cabinet parts diagram

Escutcheon

Part #TTEA0090

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit PC123FY2
#NI

Front cabinet parts diagram

Integrated circuit

Part #PC123FY2

The manufacturer no longer makes this part, and there's no substitute part

Badge TBMA118
#2A

Front cabinet parts diagram

Badge

Part #TBMA118

The manufacturer no longer makes this part, and there's no substitute part

Ser Man Cd CDR02101A0X
#NI

Front cabinet parts diagram

Ser man cd

Part #CDR02101A0X

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit AN1431T
#NI

Front cabinet parts diagram

Integrated circuit

Part #AN1431T

The manufacturer no longer makes this part, and there's no substitute part

Diode S1WBA80
#NI

Front cabinet parts diagram

Diode

Part #S1WBA80

The manufacturer no longer makes this part, and there's no substitute part

Filter J0KG00000052
#NI

Front cabinet parts diagram

Filter

Part #J0KG00000052

The manufacturer no longer makes this part, and there's no substitute part

Cap 200pf ECKCNA221KB7
#NI

Front cabinet parts diagram

Cap 200pf

Part #ECKCNA221KB7

The manufacturer no longer makes this part, and there's no substitute part
