Countertop Microwave

Model # JEM26WH01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM26WH01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

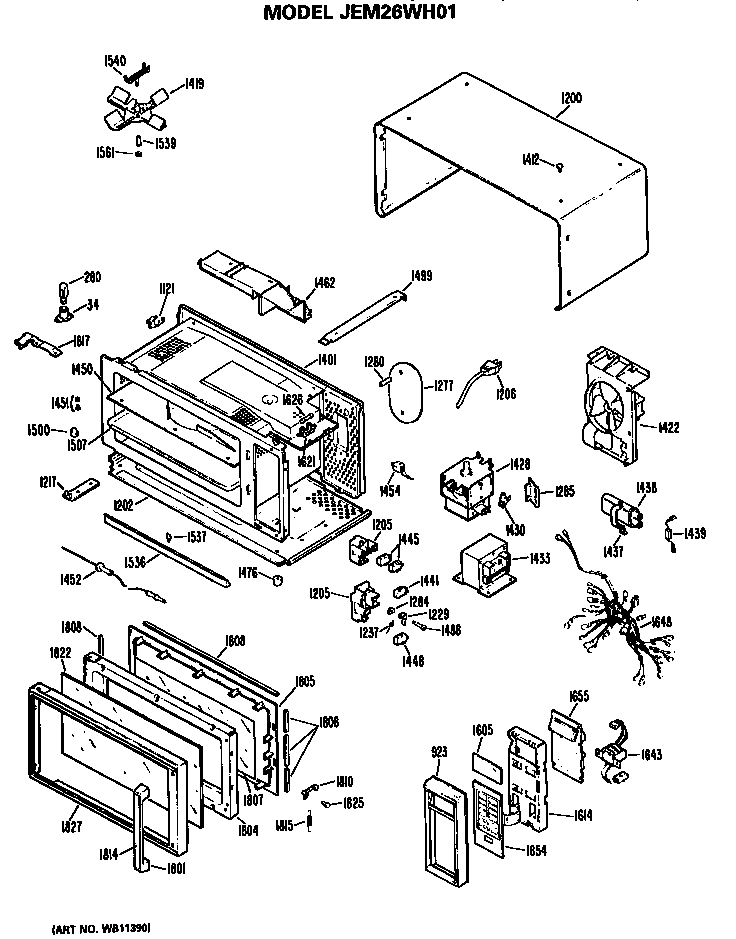

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Switch WB24X429

#1441

All parts diagram

Switch

Part #WB24X429

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X429. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Diode WB27X364

#1439

All parts diagram

Diode

Part #WB27X364

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X364. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
Use And Care Guide 49-4937

#9999

All parts diagram

Use and care guide

Part #49-4937

$8.49
In Stock
Flame Sensor WB20X141

#1121

All parts diagram

Flame sensor

Part #WB20X141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
$22.40 |
18% OFF Phone Price : $27.40
In Stock
Magnetron WB27X5334

#1428

All parts diagram

Magnetron

Part #WB27X5334

The manufacturer no longer makes this part, and there's no substitute part

Door Pin WB2X4623

#1825

All parts diagram

Door pin

Part #WB2X4623

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover WB56X1945

#1475

All parts diagram

Lamp cover

Part #WB56X1945

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X363

#1438

All parts diagram

Capacitor

Part #WB27X363

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover WB6X303

#1450

All parts diagram

Stirrer cover

Part #WB6X303

The manufacturer no longer makes this part, and there's no substitute part

Ferrite-7 WB2X4898

#1808

All parts diagram

Ferrite-7

Part #WB2X4898

The manufacturer no longer makes this part, and there's no substitute part
