Sharp
Microwave/Hood Combo

Model # R-1851A Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1851A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

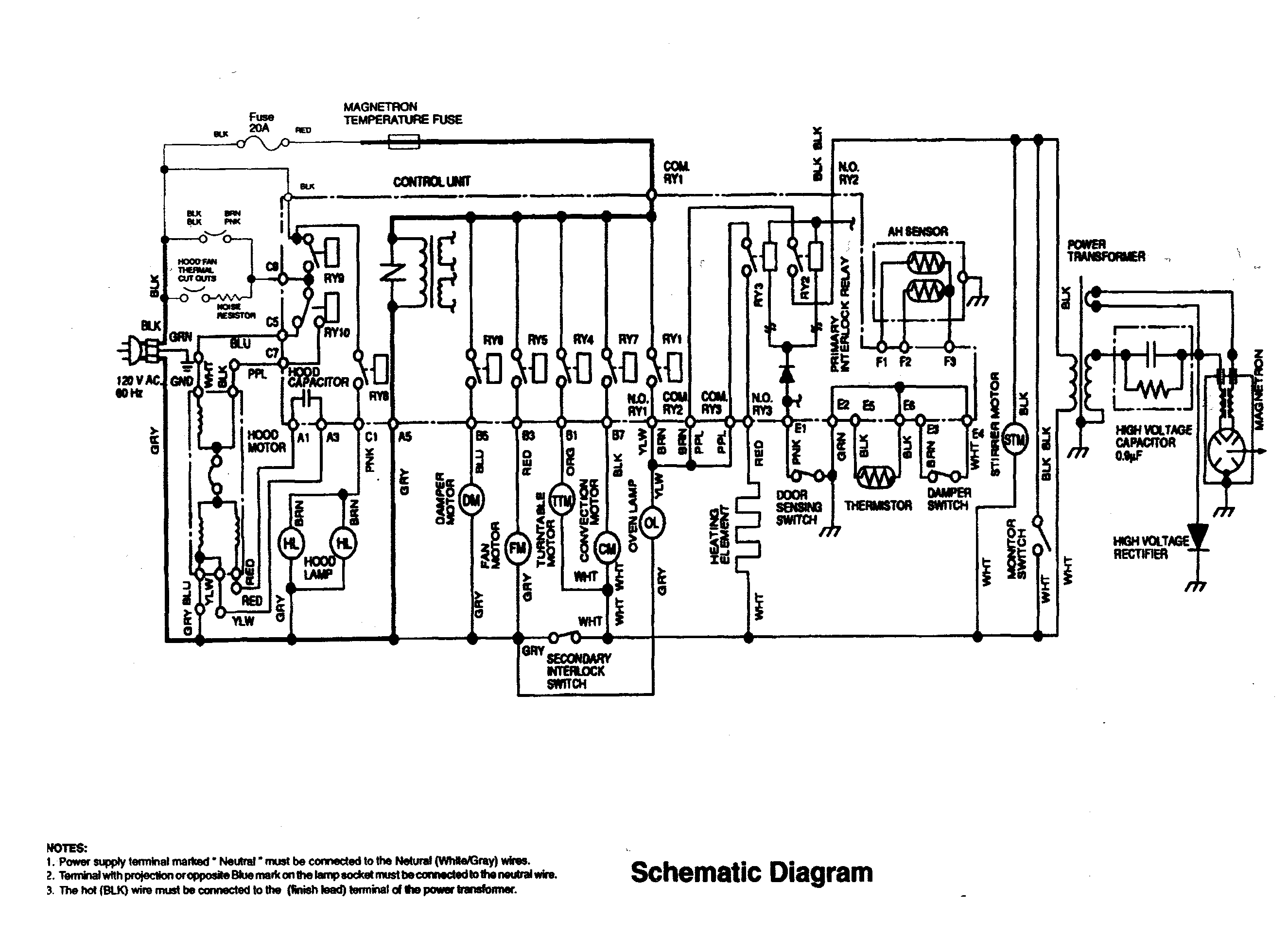

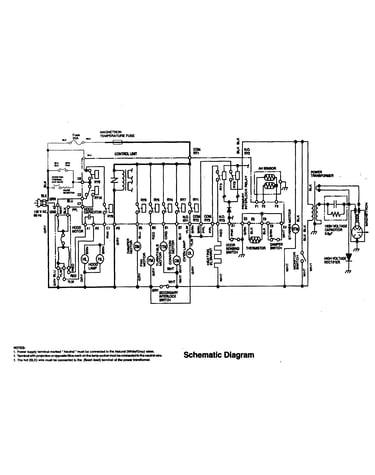

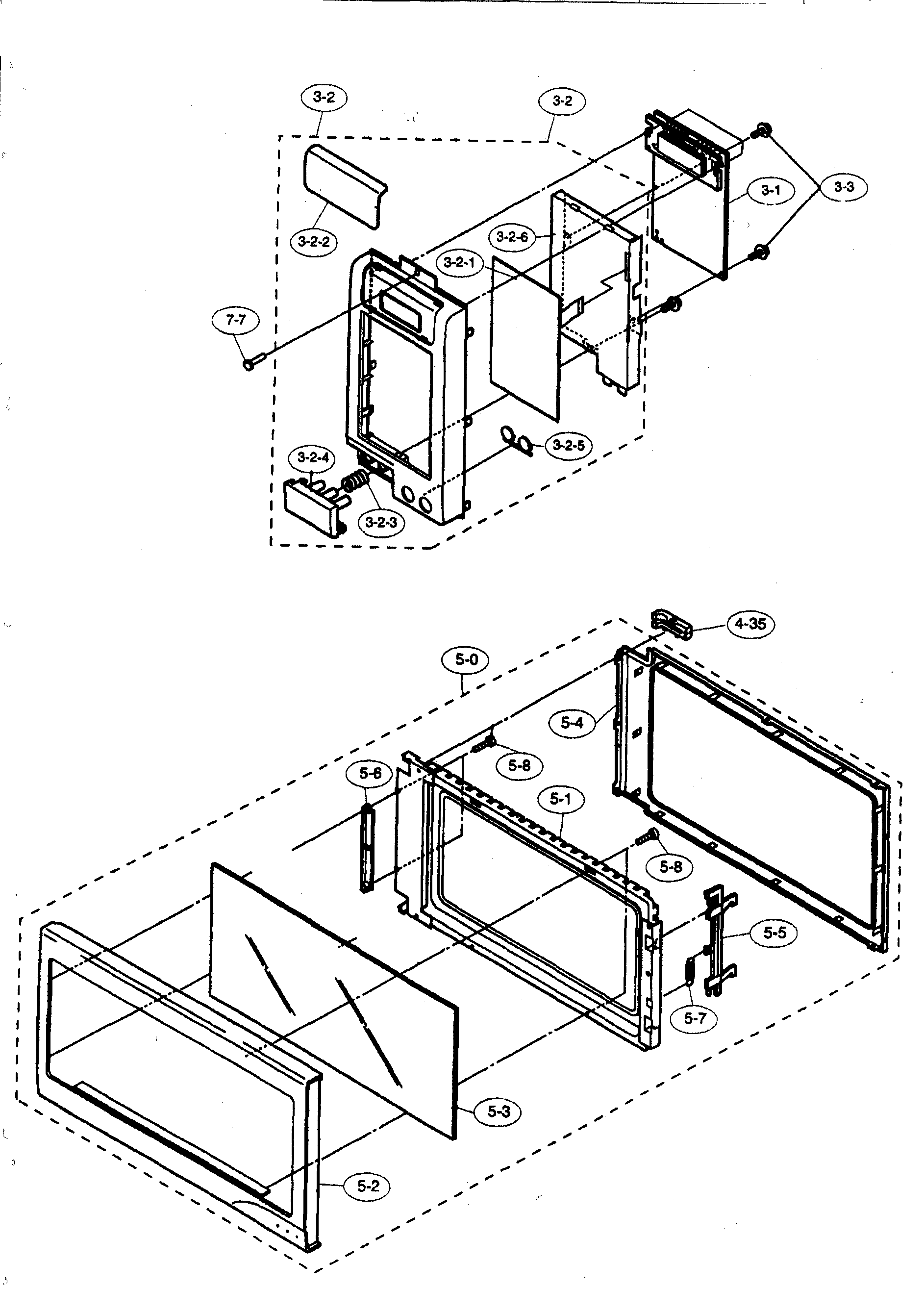

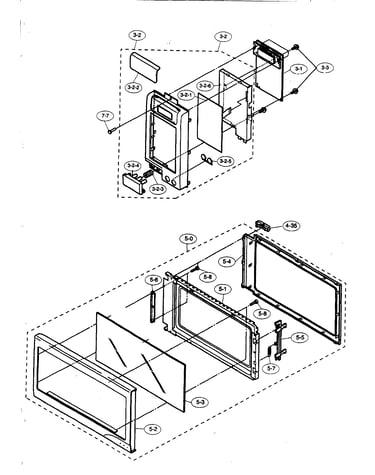

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Switch QSW-MA110WRE0
#1-11

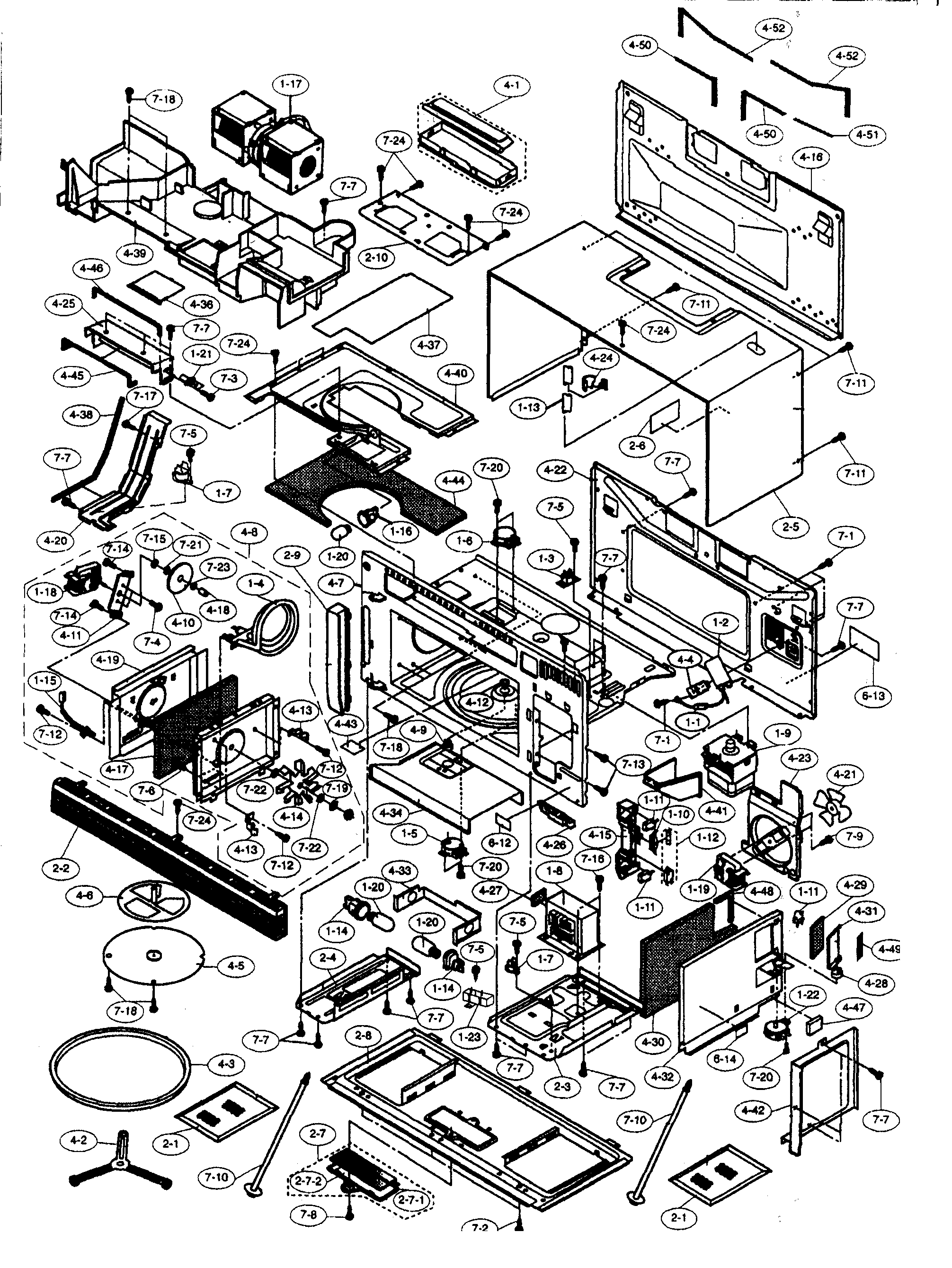

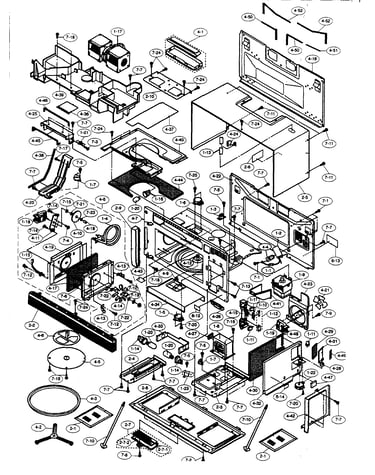

Cavity assy diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Bracket LANGQB033MRP0
#4-33

Cavity assy diagram

Bracket

Part #LANGQB033MRP0

The manufacturer no longer makes this part, and there's no substitute part

Coller PPIPFB002MRE0
#4-18

Cavity assy diagram

Coller

Part #PPIPFB002MRE0

The manufacturer no longer makes this part, and there's no substitute part

Plate PFTA-B003MRP0
#4-31

Cavity assy diagram

Plate

Part #PFTA-B003MRP0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens PGLSPB004MRE0
#2-72

Cavity assy diagram

Microwave surface light lens

Part #PGLSPB004MRE0

The manufacturer no longer makes this part, and there's no substitute part

Main Harness FW-VZB077MRE0
#6-7

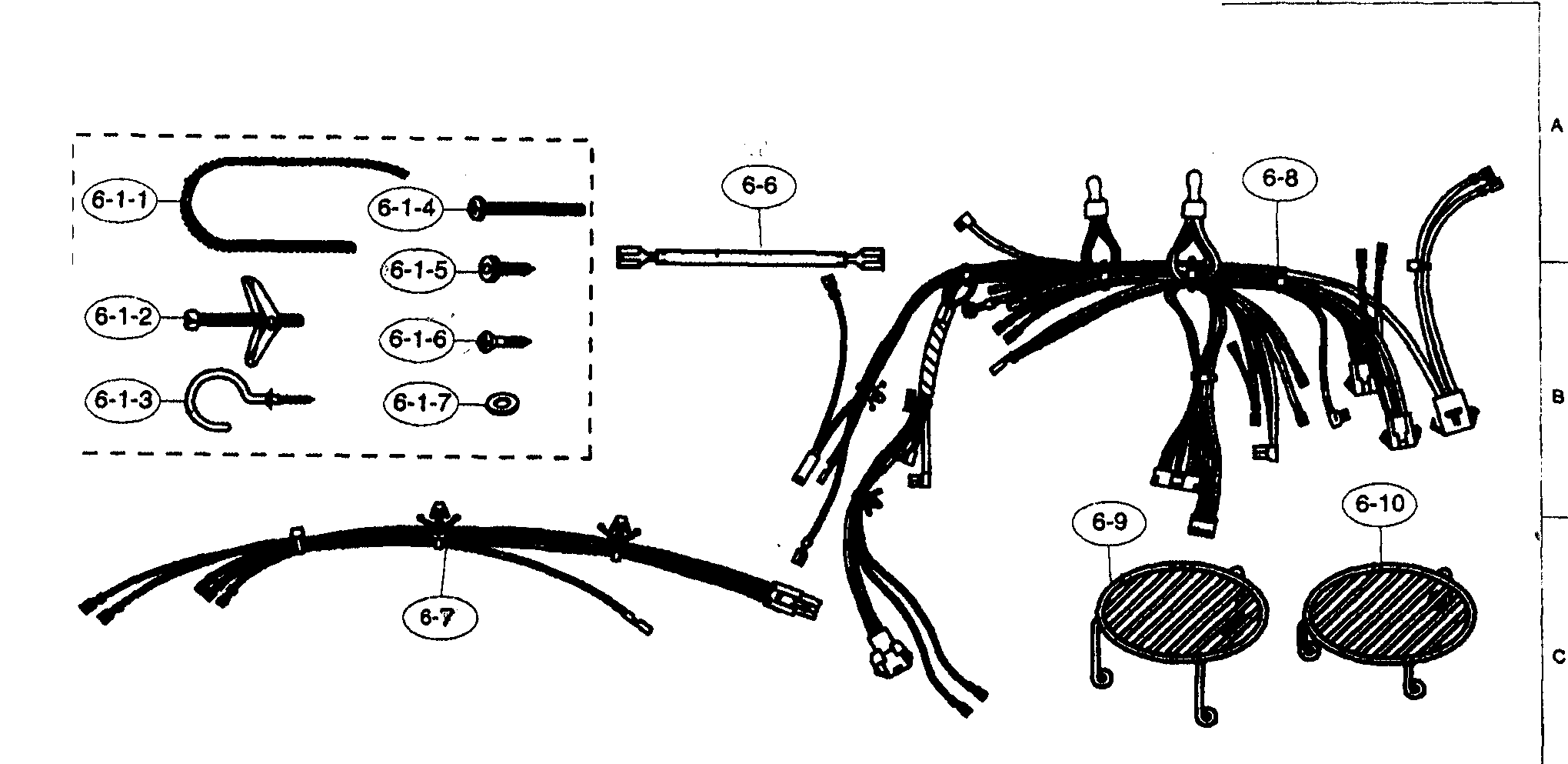

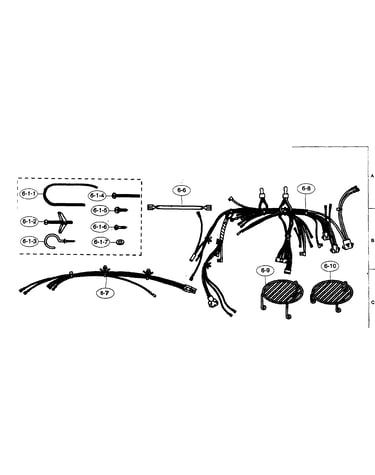

Miscellaneous diagram

Main harness

Part #FW-VZB077MRE0

The manufacturer no longer makes this part, and there's no substitute part

Template TINSKB018MRR0
#NI

Miscellaneous diagram

Template

Part #TINSKB018MRR0

The manufacturer no longer makes this part, and there's no substitute part

Sensor FDTCTA171WRK0
#1-21

Cavity assy diagram

Sensor

Part #FDTCTA171WRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave/hood Lamp Cover PCOVPB047MRP0
#4-36

Cavity assy diagram

Microwave/hood lamp cover

Part #PCOVPB047MRP0

The manufacturer no longer makes this part, and there's no substitute part

Wall Template TINSKB019MRR0
#NI

Miscellaneous diagram

Wall template

Part #TINSKB019MRR0

The manufacturer no longer makes this part, and there's no substitute part
