Bolens
Electric Line Trimmer

Model # BL50 Official Bolens trimmer

Here are the diagrams and repair parts for Official Bolens BL50 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Knob Asm-bmp 791-153066
#15

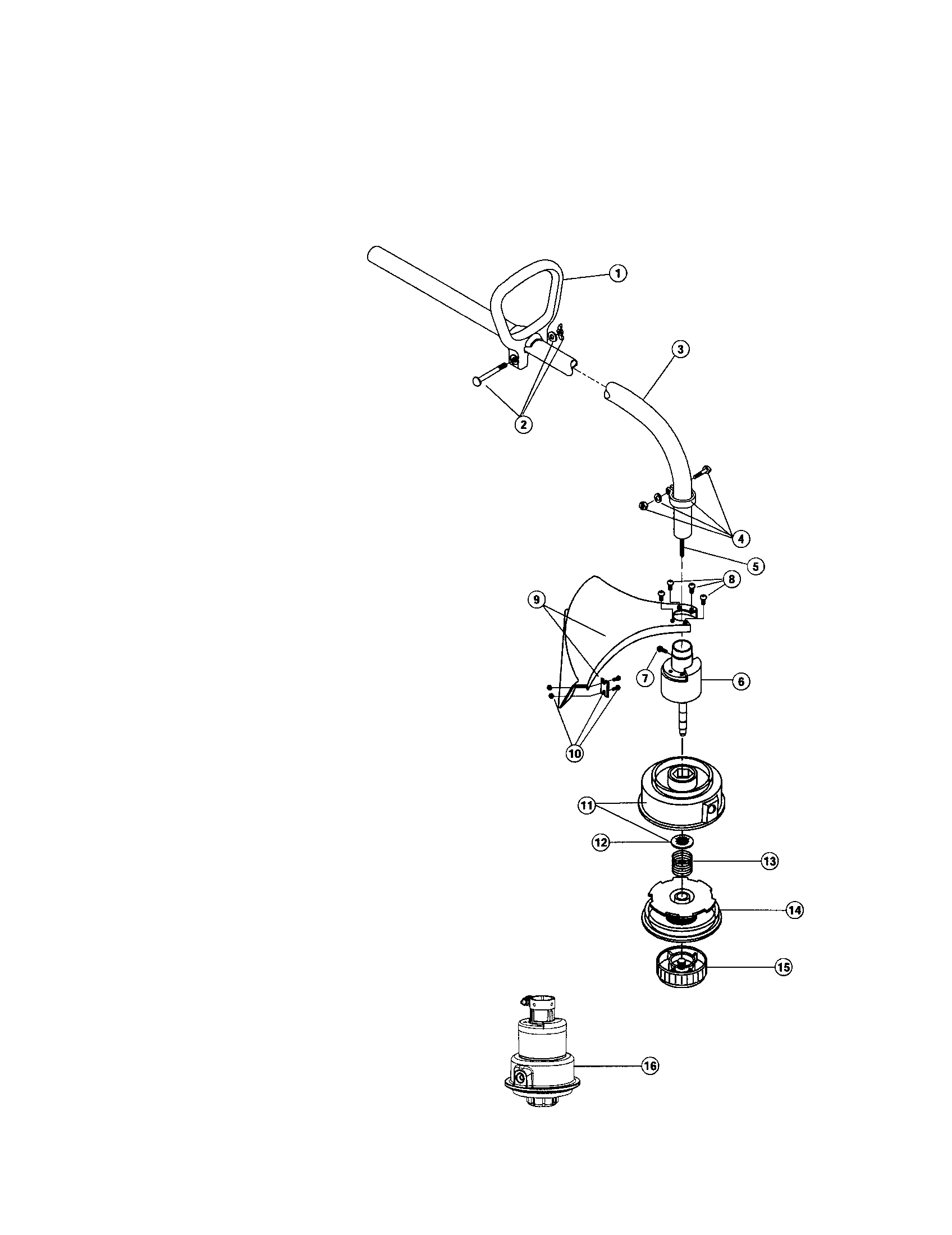

Driveshaft/d-handl/guard/blade diagram

Knob asm-bmp

Part #791-153066

Replaced by #791-153066B

?
Manufacturer substitution
This part replaces 791-153066. Substitute parts can look different from the original.
BEST SELLER
$17.84 |
22% OFF MSRP : $23.00
In Stock
Screw 791-182519
#2

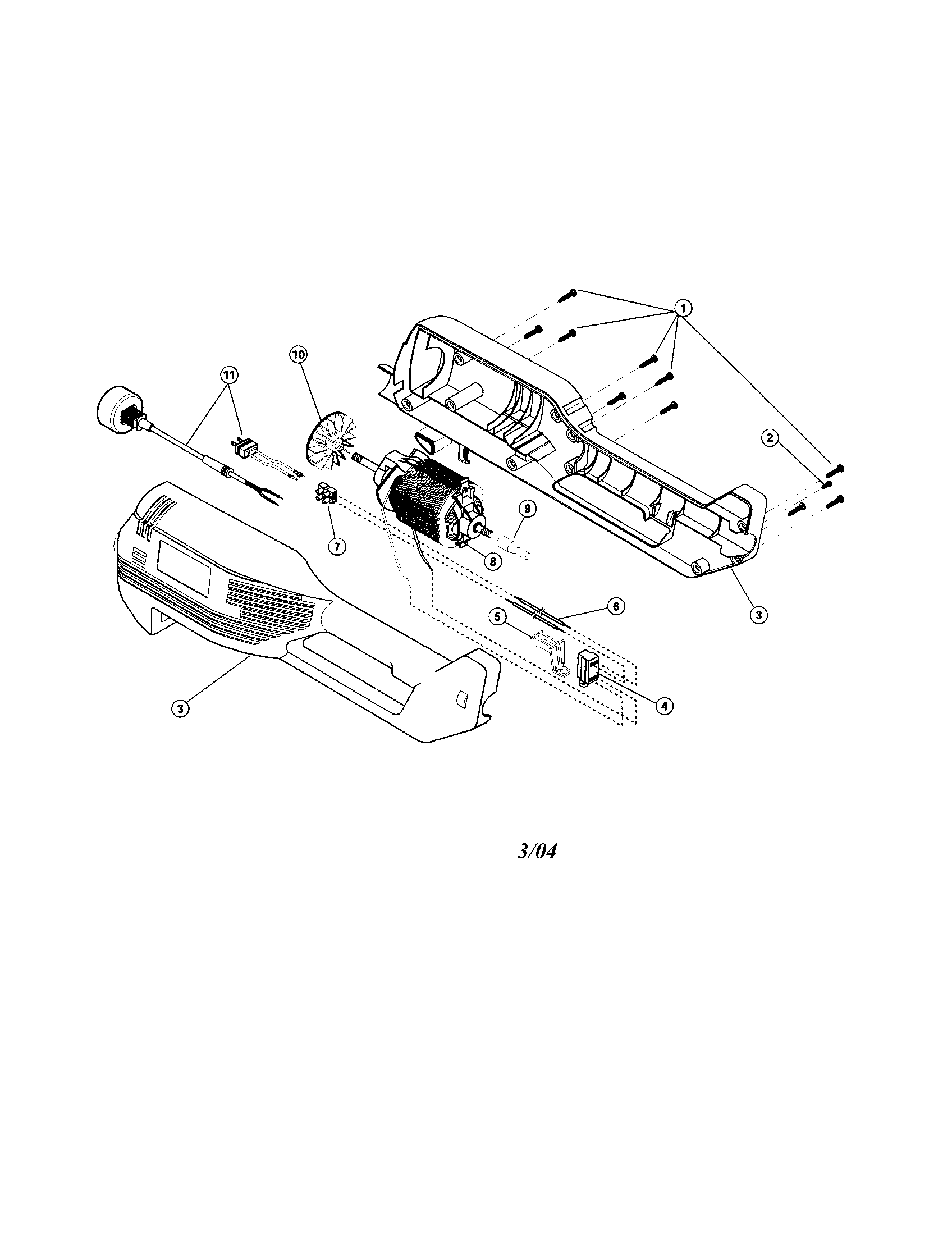

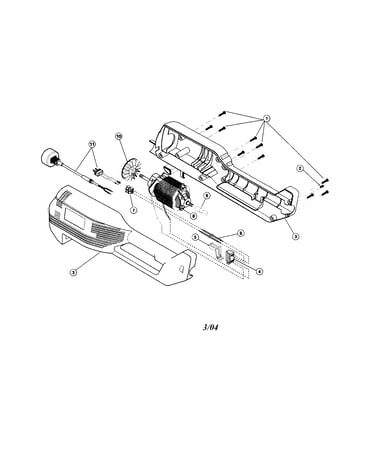

Motor housing/driver/motor diagram

Screw

Part #791-182519

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-180531
#8

Driveshaft/d-handl/guard/blade diagram

Screw

Part #791-180531

The manufacturer no longer makes this part, and there's no substitute part

Screw 791-145569
#7

Driveshaft/d-handl/guard/blade diagram

Screw

Part #791-145569

The manufacturer no longer makes this part, and there's no substitute part

Housing Motor Assembly 753-04271
#3

Motor housing/driver/motor diagram

Housing motor assembly

Part #753-04271

The manufacturer no longer makes this part, and there's no substitute part

Driver 791-180152
#9

Motor housing/driver/motor diagram

Driver

Part #791-180152

The manufacturer no longer makes this part, and there's no substitute part

Cutting Assembly 791-182172
#16

Driveshaft/d-handl/guard/blade diagram

Cutting assembly

Part #791-182172

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 791-180559
#6

Motor housing/driver/motor diagram

Lead wire

Part #791-180559

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 791-682061
#10

Driveshaft/d-handl/guard/blade diagram

Blade assembly

Part #791-682061

The manufacturer no longer makes this part, and there's no substitute part

D-handle Assembly 791-153067
#1

Driveshaft/d-handl/guard/blade diagram

D-handle assembly

Part #791-153067

The manufacturer no longer makes this part, and there's no substitute part
