Craftsman
Lawn Tractor Attachment

Model # 486243151 Official Craftsman 40" tine dethatcher

Here are the diagrams and repair parts for Official Craftsman 486243151 40" tine dethatcher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Lawn Tractor Dethatcher Attachment Spring Tine (replaces Af-43783) 43783
#3

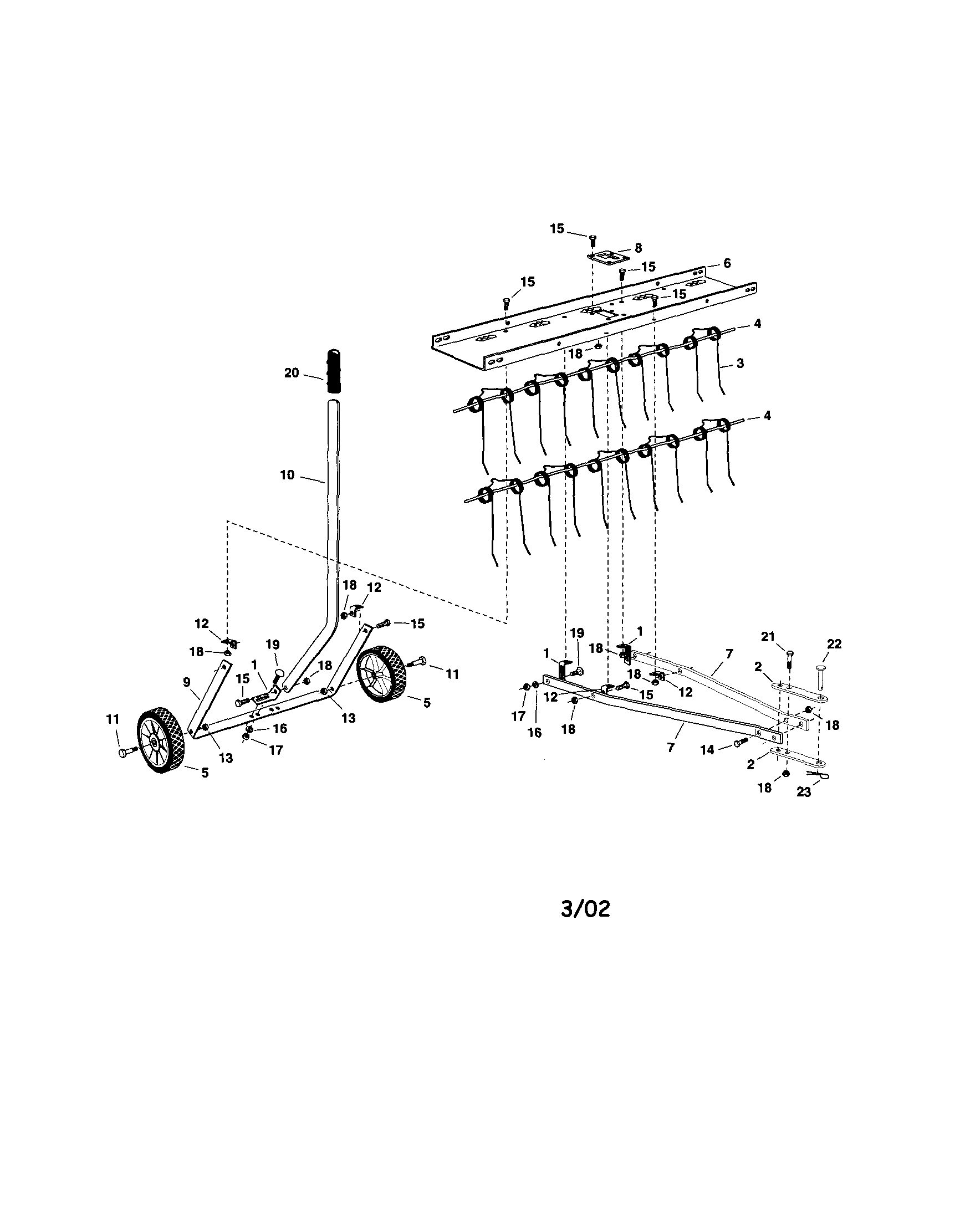

40" tine dethatcher diagram

Lawn tractor dethatcher attachment spring tine (replaces af-43783)

Part #43783

BEST SELLER
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Lawn & Garden Equipment Carriage Bolt (replaces 43079) 44326
#19

40" tine dethatcher diagram

Lawn & garden equipment carriage bolt (replaces 43079)

Part #44326

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Lock Nut 43082
#13

40" tine dethatcher diagram

Lawn & garden equipment lock nut

Part #43082

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Lock Nut, 5/16-in 43064
#18

40" tine dethatcher diagram

Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#14

40" tine dethatcher diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hex Nut, 5/16-in 43083
#17

40" tine dethatcher diagram

Lawn tractor attachment hex nut, 5/16-in

Part #43083

This item is not returnable
$2.16
In Stock
Lawn Tractor Dethatcher Attachment Spring Alignment Wire 47633
#4

40" tine dethatcher diagram

Lawn tractor dethatcher attachment spring alignment wire

Part #47633

Replaced by #47654

?
Manufacturer substitution
This part replaces 47633. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lift Handle 24596
#10

40" tine dethatcher diagram

Lift handle

Part #24596

Replaced by #24596BL1

?
Manufacturer substitution
This part replaces 24596. Substitute parts can look different from the original.
This item is not returnable
$21.94 |
19% OFF Phone Price : $26.94
In Stock
Lawn Tractor Dethatcher Attachment Hitch Arm Mounting Bracket 23442
#1

40" tine dethatcher diagram

Lawn tractor dethatcher attachment hitch arm mounting bracket

Part #23442

This item is not returnable
$9.49 |
10% OFF Phone Price : $10.49
In Stock
Lawn Tractor Dethatcher Attachment Hitch Arm Mounting Bracket 23914
#7

40" tine dethatcher diagram

Lawn tractor dethatcher attachment hitch arm mounting bracket

Part #23914

Replaced by #23914BL1

?
Manufacturer substitution
This part replaces 23914. Substitute parts can look different from the original.
This item is not returnable
$11.38
In Stock
