Model # 7KCDC250T0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 7KCDC250T0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Mounting Gasket 4211334
#8

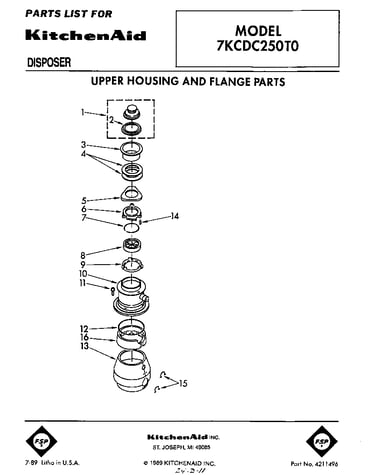

Upper housing and flange diagram

Mounting gasket

Part #4211334

Replaced by #WP4211334

?
Manufacturer substitution
This part replaces 4211334. Substitute parts can look different from the original.
This item is not returnable
$22.59 |
18% OFF Phone Price : $27.59
In Stock
Wire Shield 4211326
#17

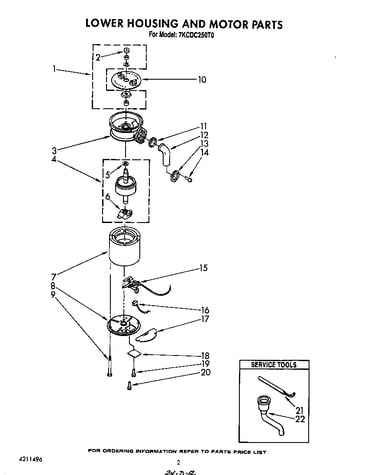

Lower housing and motor diagram

Wire shield

Part #4211326

The manufacturer no longer makes this part, and there's no substitute part

Shredder 4211342
#10

Lower housing and motor diagram

Shredder

Part #4211342

The manufacturer no longer makes this part, and there's no substitute part

Washer 4211321
#5

Lower housing and motor diagram

Washer

Part #4211321

The manufacturer no longer makes this part, and there's no substitute part

O-ring 4211337
#12

Upper housing and flange diagram

O-ring

Part #4211337

The manufacturer no longer makes this part, and there's no substitute part

End Frame Assembly (lower) 4211327
#8

Lower housing and motor diagram

End frame assembly (lower)

Part #4211327

The manufacturer no longer makes this part, and there's no substitute part

Bolt, Thru (4) 4211335
#11

Upper housing and flange diagram

Bolt, thru (4)

Part #4211335

The manufacturer no longer makes this part, and there's no substitute part

Ground Screw 4211330
#20

Lower housing and motor diagram

Ground screw

Part #4211330

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Top 4211444
#16

Upper housing and flange diagram

Insulation, top

Part #4211444

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly Start 4211449
#15

Lower housing and motor diagram

Switch assembly start

Part #4211449

The manufacturer no longer makes this part, and there's no substitute part
