Model #FFC13C4AW2 Frigidaire freezer

Here are the diagrams and repair parts for Frigidaire FFC13C4AW2 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 55 parts

    Freezer Door Key#5

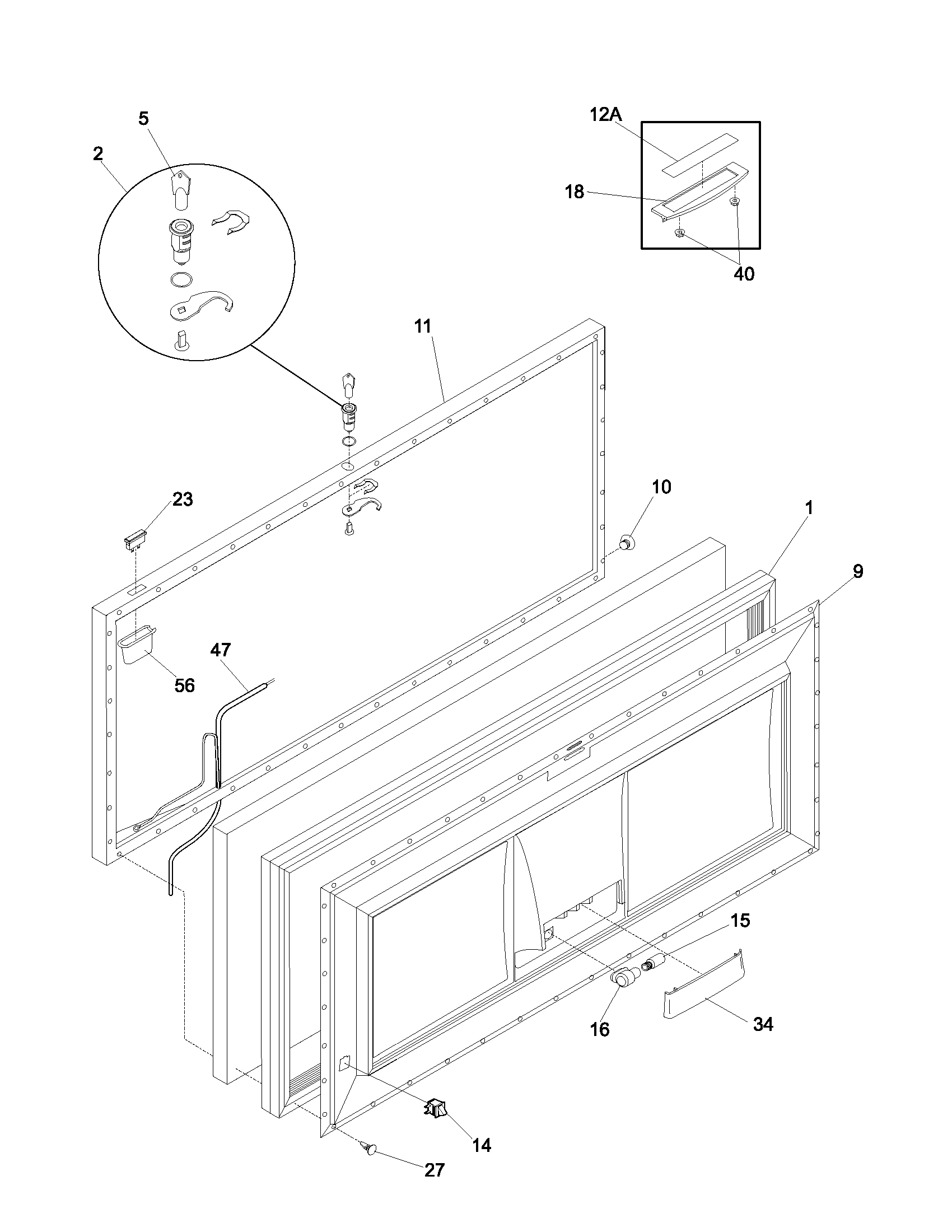

    Door Diagram

    Freezer door key

    Part #216702900
    Replaced by #297147700
    ?
    Manufacturer substitution
    This part replaces 216702900. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.19
    Refrigerator Run Capacitor#55

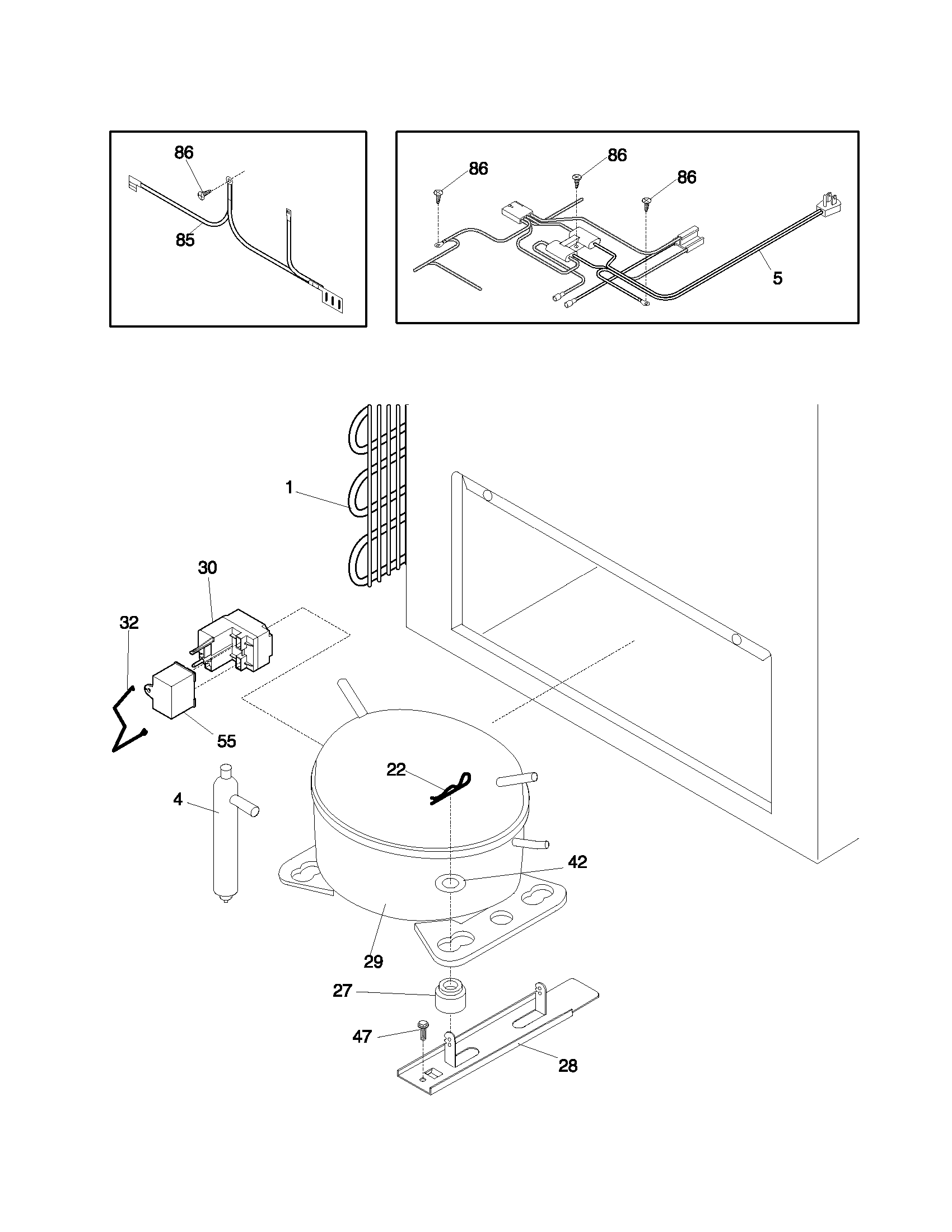

    System Diagram

    Chest freezer run capacitor

    Part #218909901
    Replaced by #5304464438
    ?
    Manufacturer substitution
    This part replaces 218909901. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $42.39
    Freezer Door Switch#14

    Door Diagram

    Freezer door switch

    Part #216822900
    BEST SELLER
    In Stock
    $48.19 |
    11% OFF
    MSRP: $54.00
    Appliance Touch-Up Paint, 0.6-oz (White)#NI

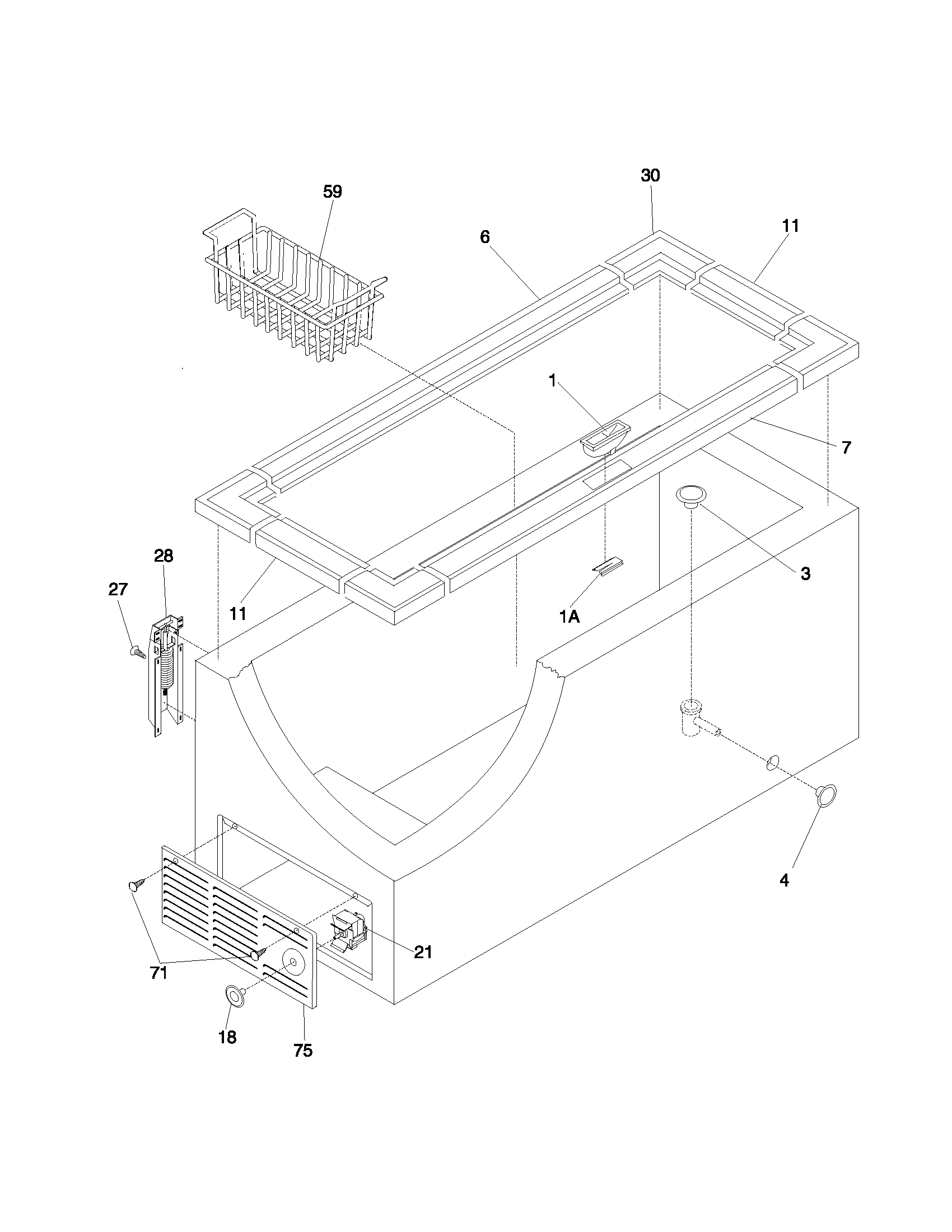

    Cabinet Diagram

    Touch paint

    Part #5303305324
    Replaced by #5303321319
    ?
    Manufacturer substitution
    This part replaces 5303305324. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $15.09
    Freezer Inner Door Panel Rivet#27

    Door Diagram

    Freezer inner door panel rivet

    Part #5303212828
    BEST SELLER
    In Stock
    $15.59
    Freezer Drain Plug#3

    Cabinet Diagram

    Freezer drain plug

    Part #216502600
    BEST SELLER
    This item is not returnable
    In Stock
    $12.09 |
    7% OFF
    MSRP: $13.00
    Refrigerator Filter Dryer#4

    System Diagram

    Filter drier

    Part #216634500
    Replaced by #5303305677
    ?
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $16.89 |
    20% OFF
    Was: $21.09
    Freezer Light Socket#16

    Door Diagram

    Light socket

    Part #216817600
    Replaced by #297139501
    ?
    Manufacturer substitution
    This part replaces 216817600. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $19.99
    Freezer Compressor#29

    System Diagram

    Compressor

    Part #216856700
    Replaced by #5304507765
    ?
    Manufacturer substitution
    This part replaces 216856700. Substitute parts can look different from the original.
    In Stock
    $325.99 |
    28% OFF
    MSRP: $450.00
    Freezer Temperature Control Knob#18

    Cabinet Diagram

    In Stock
    $37.39
