Craftsman
Water Pump

Model # 390282540 Official Craftsman submersible pump

Here are the diagrams and repair parts for Official Craftsman 390282540 submersible pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

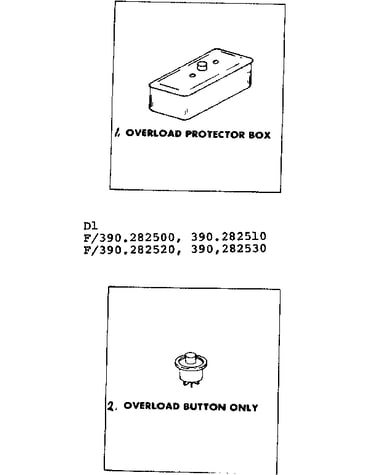

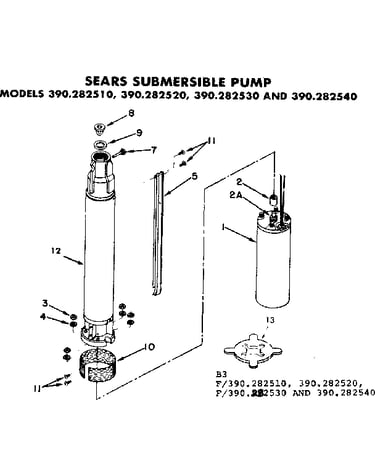

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Centrng Gde P97-23P
Centrng gde

Part #P97-23P

$14.64
In Stock
Control E238-2
#25

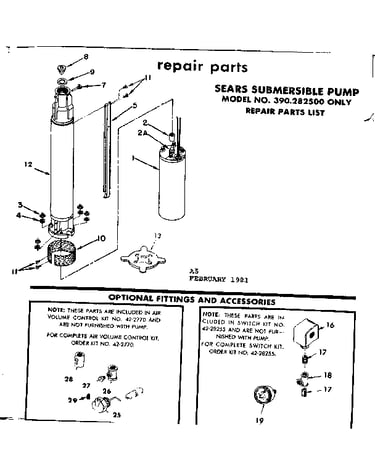

Replacement parts/282500 only diagram

Control

Part #E238-2

$68.79
In Stock
Screen P8-20
Screen

Part #P8-20

This item is not returnable
$5.19
In Stock
Connector J43-13C
#18

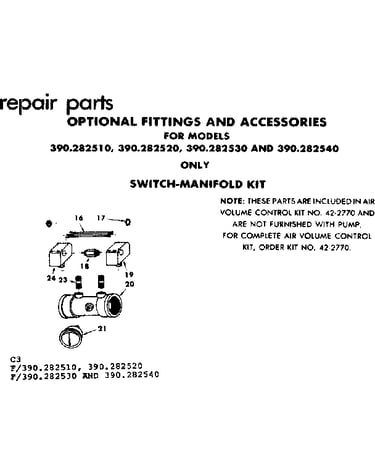

Switch-manifold kit diagram

Connector

Part #J43-13C

$9.39
In Stock
Pipe Nipple U37-17GP
Pipe nipple

Part #U37-17GP

This item is not returnable
$6.98
In Stock
Lock Washer U43-11SS
Lock washer

Part #U43-11SS

The manufacturer no longer makes this part, and there's no substitute part

Gauge U239-2
#19

Replacement parts/282500 only diagram

Gauge

Part #U239-2

Replaced by #TC104-P2

?
Manufacturer substitution
This part replaces U239-2. Substitute parts can look different from the original.
$27.99 |
15% OFF Phone Price : $32.99
In Stock
Gauge U239-3
#21

Switch-manifold kit diagram

Gauge

Part #U239-3

Replaced by #TC104-P2

?
Manufacturer substitution
This part replaces U239-3. Substitute parts can look different from the original.
$27.99 |
15% OFF Phone Price : $32.99
In Stock
Pressure Switch U217-366
#24

Switch-manifold kit diagram

Pressure switch

Part #U217-366

Replaced by #TC2153-P2

?
Manufacturer substitution
This part replaces U217-366. Substitute parts can look different from the original.
$25.99
In Stock
Nut U36-41SS
Nut

Part #U36-41SS

Replaced by #B76087

?
Manufacturer substitution
This part replaces U36-41SS. Substitute parts can look different from the original.
$53.74
In Stock
