Weslo
Exercise Cycle

Model # WLEX69051 Official Weslo pursuit 690 exercise cycle

Here are the diagrams and repair parts for Official Weslo WLEX69051 pursuit 690 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Assy,pedal,l 112778
#10A

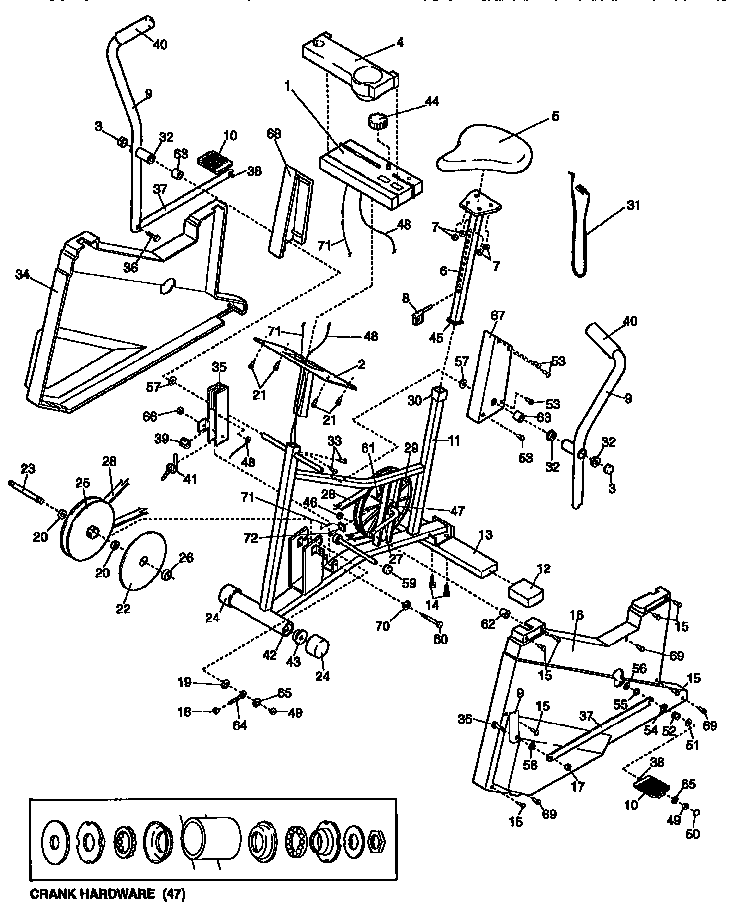

Unit parts diagram

Assy,pedal,l

Part #112778

Replaced by #176563

?
Manufacturer substitution
This part replaces 112778. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.46 |
10% OFF Phone Price : $10.46
In Stock
Nut,hex Nyl 012090
#18

Unit parts diagram

Nut,hex nyl

Part #012090

The manufacturer no longer makes this part, and there's no substitute part

Magnet,rnd,m 100498
#61

Unit parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
Back Order
Exercise Equipment Hex Nut 012056
Exercise equipment hex nut

Part #012056

This item is not returnable
$2.16
In Stock
Exercise Equipment Hex Nut 012108
#66

Unit parts diagram

Exercise equipment hex nut

Part #012108

This item is not returnable
$2.16
In Stock
Elliptical Washer 014132
#19

Unit parts diagram

Elliptical washer

Part #014132

This item is not returnable
$2.16
In Stock
Exercise Cycle Hand Crank Bearing Assembly 110465
#47

Unit parts diagram

Exercise cycle hand crank bearing assembly

Part #110465

Replaced by #176991

?
Manufacturer substitution
This part replaces 110465. Substitute parts can look different from the original.
$22.99
In Stock
Exercise Equipment Flat Washer 014041
#65

Unit parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
$2.16
In Stock
Screw,tekphp 107428
#69

Unit parts diagram

Screw,tekphp

Part #107428

This item is not returnable
$2.16
In Stock
Exercise Equipment Push Nut 101768
#59

Unit parts diagram

Exercise equipment push nut

Part #101768

This item is not returnable
$2.16
In Stock
