KitchenAid
Warming Drawer

Model # KEWS145SSS00 Official KitchenAid warming drawer

Here are the diagrams and repair parts for Official KitchenAid KEWS145SSS00 warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Screw 3196537
Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drawer Slide 9762346
#3

Internal warming drawer parts diagram

Drawer slide

Part #9762346

Replaced by #WPW10188461

?
Manufacturer substitution
This part replaces 9762346. Substitute parts can look different from the original.
$55.45 |
8% OFF Phone Price : $60.45
In Stock
Warming Drawer Control Switch W10121337
#6

Internal warming drawer parts diagram

Warming drawer control switch

Part #W10121337

$142.36 |
7% OFF Phone Price : $152.36
In Stock
Screw (black) 4449743
#7

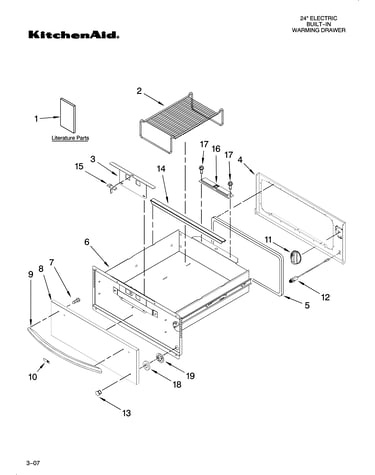

Control, door and drawer parts diagram

Screw (black)

Part #4449743

Replaced by #WP4449743

?
Manufacturer substitution
This part replaces 4449743. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Enclosure 9763122
#9

Internal warming drawer parts diagram

Enclosure

Part #9763122

$41.56
In Stock
Warming Drawer Indicator Light Lens Retainer 4456862
#19

Control, door and drawer parts diagram

Warming drawer indicator light lens retainer

Part #4456862

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Light Lens 4456314
Light lens

Part #4456314

$43.67
In Stock
Grommet 4452601
#NI

Internal warming drawer parts diagram

Grommet

Part #4452601

$27.69
In Stock
Washer 4456861
#18

Control, door and drawer parts diagram

Washer

Part #4456861

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Warm Drawer 9763127
#6

Control, door and drawer parts diagram

Warm drawer

Part #9763127

This item is not returnable
$228.13
In Stock
