Model # 7700 Official Porter Cable miter saw with laserloc

Here are the diagrams and repair parts for Official Porter Cable 7700 miter saw with laserloc, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Rubber Plug 878053
#166

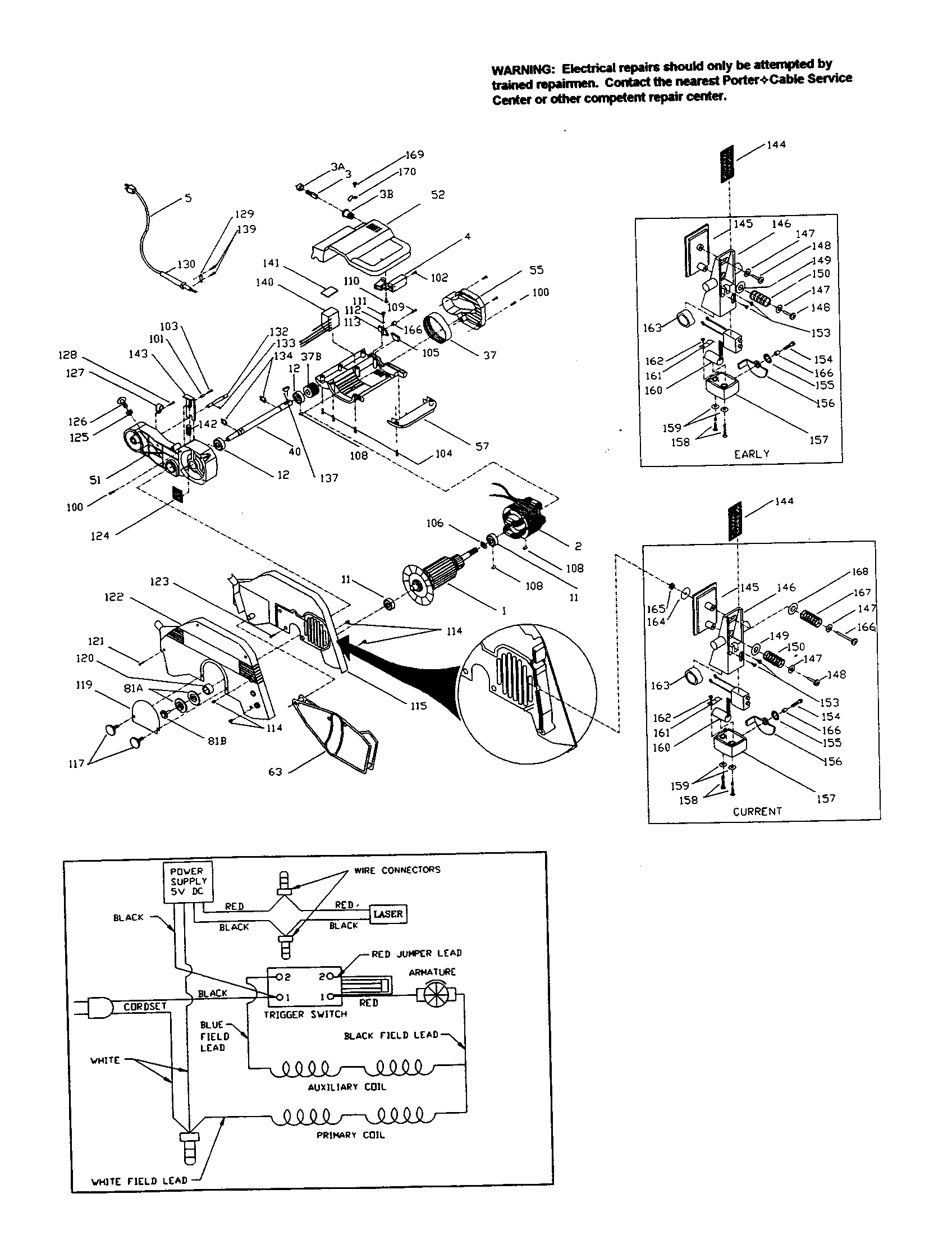

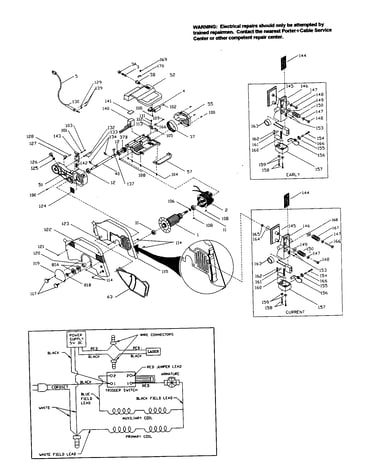

Armature/motor housing set/guard diagram

Rubber plug

Part #878053

The manufacturer no longer makes this part, and there's no substitute part

Screw 694015
#158

Armature/motor housing set/guard diagram

Screw

Part #694015

The manufacturer no longer makes this part, and there's no substitute part

Foam Pad 695620
#141

Armature/motor housing set/guard diagram

Foam pad

Part #695620

The manufacturer no longer makes this part, and there's no substitute part

Spacer 693968
#101

Armature/motor housing set/guard diagram

Spacer

Part #693968

The manufacturer no longer makes this part, and there's no substitute part

Washer 848551
#201

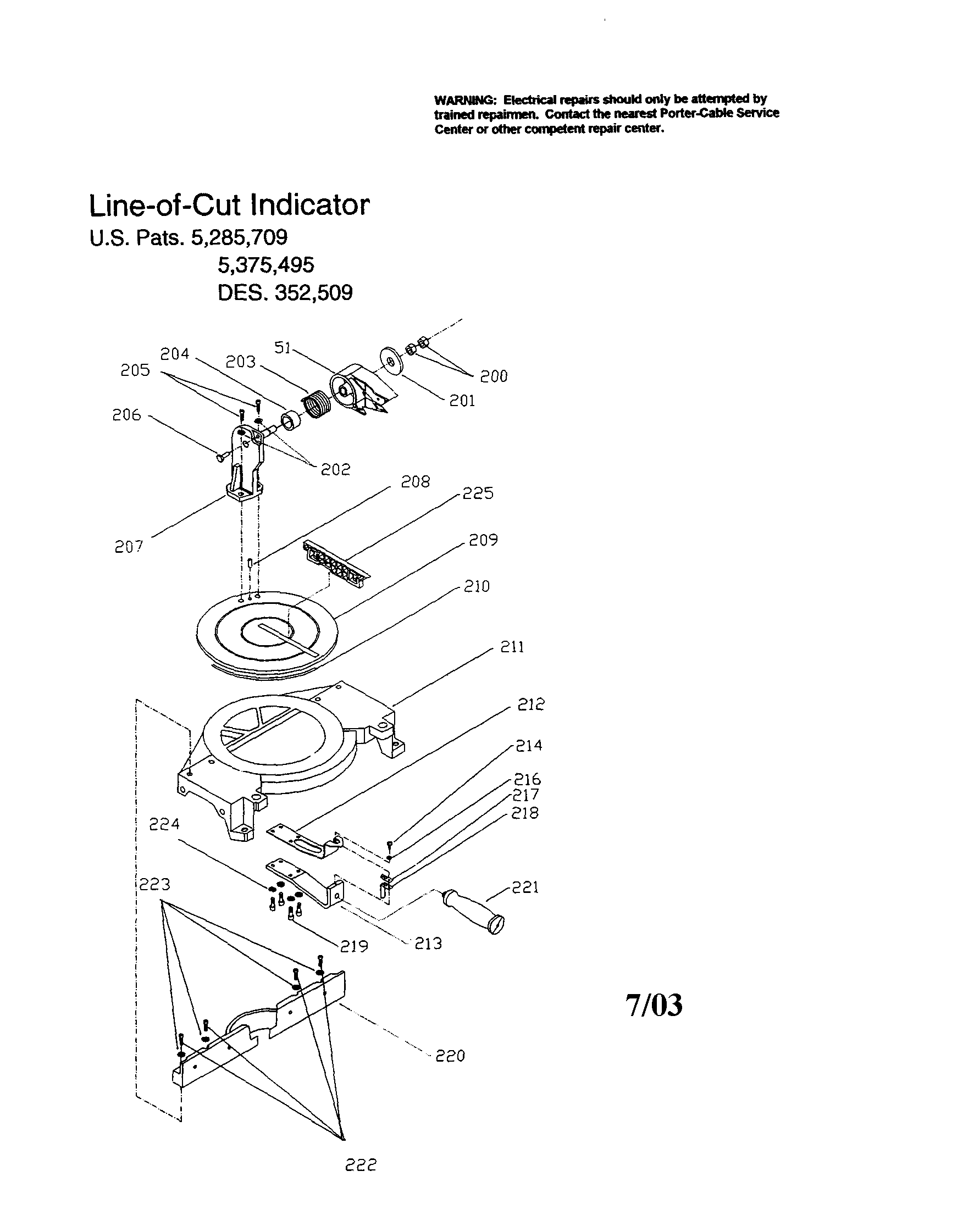

Miter saw diagram

Washer

Part #848551

The manufacturer no longer makes this part, and there's no substitute part

Up Guard Cov 876387
#122

Armature/motor housing set/guard diagram

Up guard cov

Part #876387

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder Clip 801271
#161

Armature/motor housing set/guard diagram

Brush holder clip

Part #801271

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear Nut 802677
#125

Armature/motor housing set/guard diagram

Drive gear nut

Part #802677

The manufacturer no longer makes this part, and there's no substitute part

Key 841002
#137

Armature/motor housing set/guard diagram

Key

Part #841002

The manufacturer no longer makes this part, and there's no substitute part

Washer 847769
#149

Armature/motor housing set/guard diagram

Washer

Part #847769

The manufacturer no longer makes this part, and there's no substitute part
