Model #KCMS185JWH2 KitchenAid countertop microwave

Here are the diagrams and repair parts for KitchenAid KCMS185JWH2 countertop microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 91 parts

    Microwave High-Voltage Diode

    #8

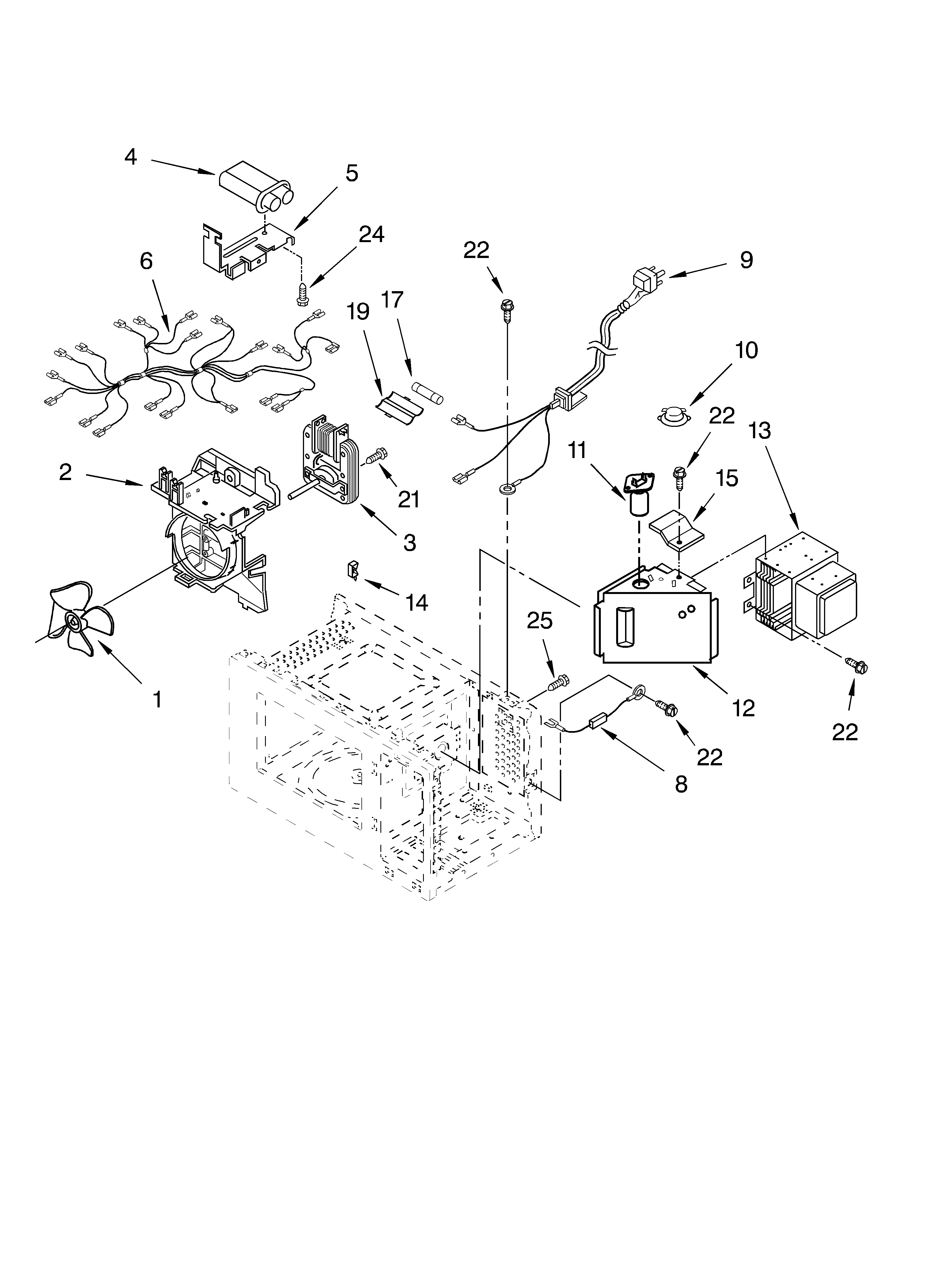

    Oven interior parts Diagram

    Microwave high-voltage diode

    Part #WP8205489
    ?
    Manufacturer substitution
    This part replaces 8171879. Substitute parts can look different from the original.
    This part replaces 8171879
    $22.57 |
    19% OFF MSRP:$28.00

    In Stock

    Microwave Waveguide Cover

    #1

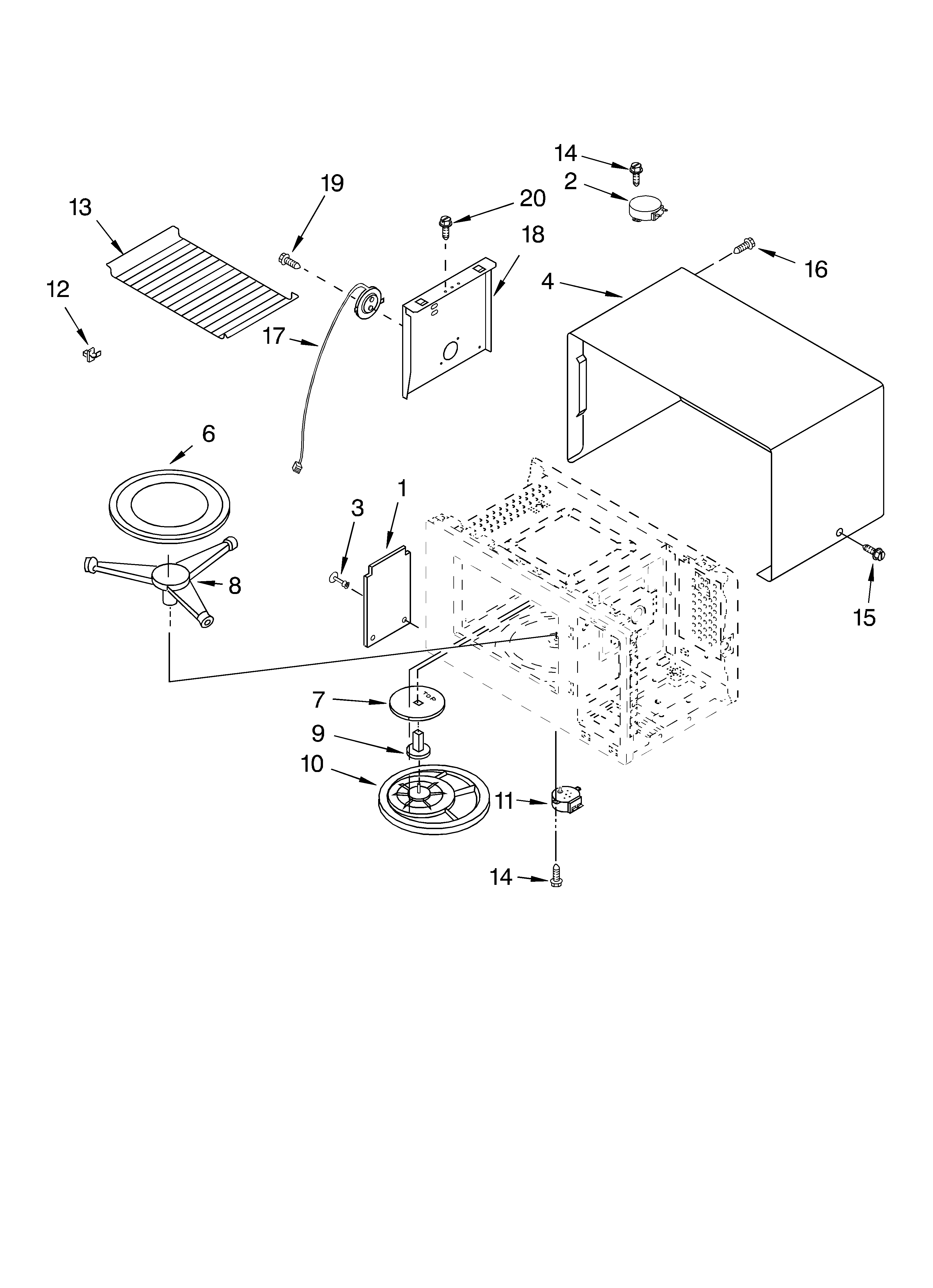

    Oven cavity parts Diagram

    Microwave waveguide cover

    Part #8184278
    ?
    Manufacturer substitution
    This part replaces 8171935. Substitute parts can look different from the original.
    This part replaces 8171935
    $19.98

    In Stock

    Microwave Fuse

    #17

    Oven interior parts Diagram

    Microwave fuse

    Part #WP8183507
    ?
    Manufacturer substitution
    This part replaces 8183507. Substitute parts can look different from the original.
    This part replaces 8183507
    $10.64

    In Stock

    Microwave Magnetron

    #13

    Oven interior parts Diagram

    Microwave magnetron

    Part #8184652

    The manufacturer no longer makes this part, and there's no substitute part

    Microwave Latch Body

    #2

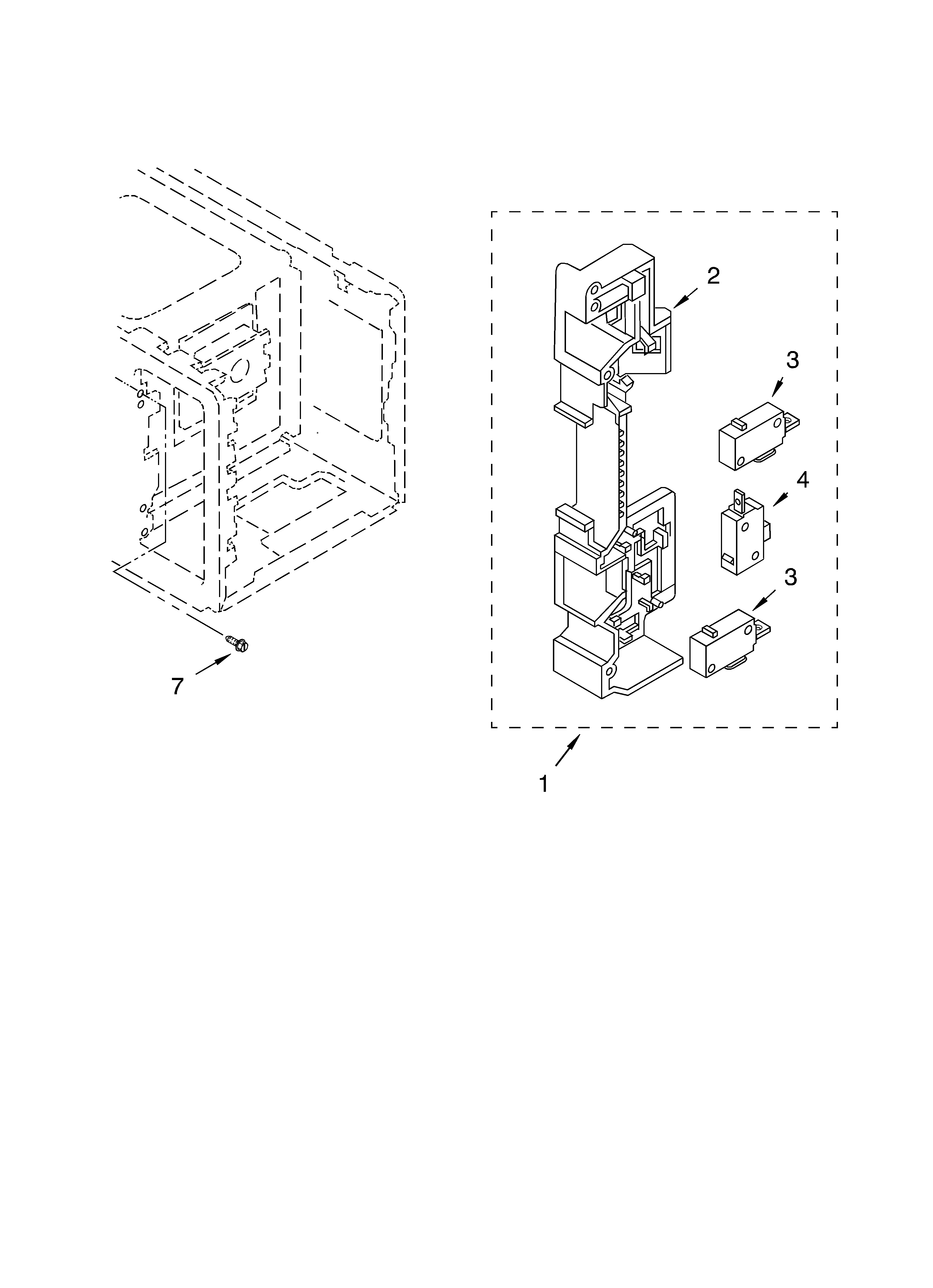

    Latch board parts Diagram

    Microwave latch body

    Part #WP8185271
    ?
    Manufacturer substitution
    This part replaces 8184812. Substitute parts can look different from the original.
    This part replaces 8184812
    $26.16 |
    27% OFF MSRP:$36.00

    In Stock

    Screw

    #7

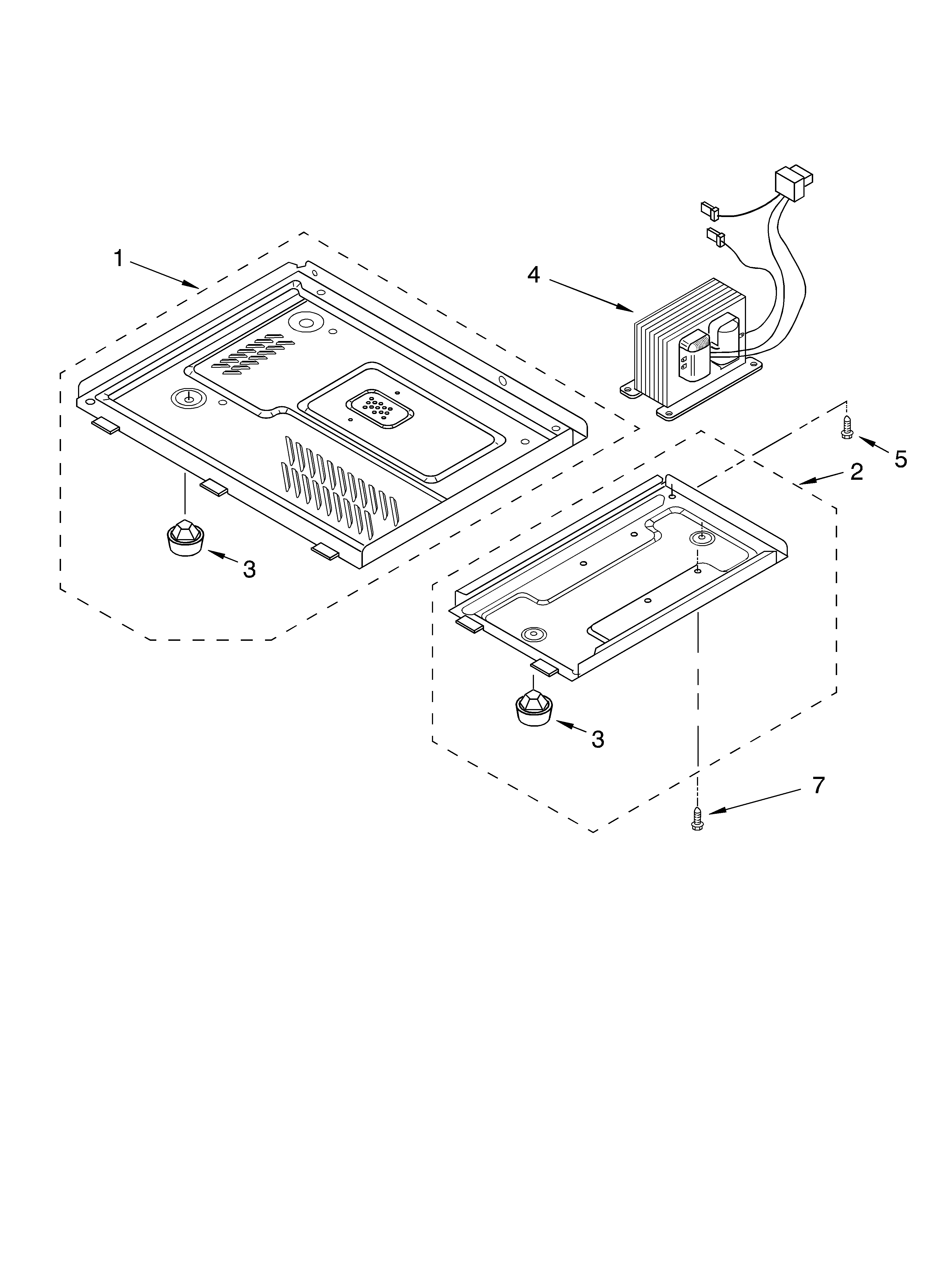

    Base plate parts Diagram

    Screw

    Part #4344826
    ?
    Manufacturer substitution
    This part replaces 4358489. Substitute parts can look different from the original.
    This part replaces 4358489
    $12.49

    In Stock

    Microwave Screw

    #14

    Oven cavity parts Diagram

    Microwave screw

    Part #WP4158079
    ?
    Manufacturer substitution
    This part replaces 4358188. Substitute parts can look different from the original.
    This part replaces 4358188
    This item is not returnable
    $2.19

    In Stock

    Seal Tape

    #5

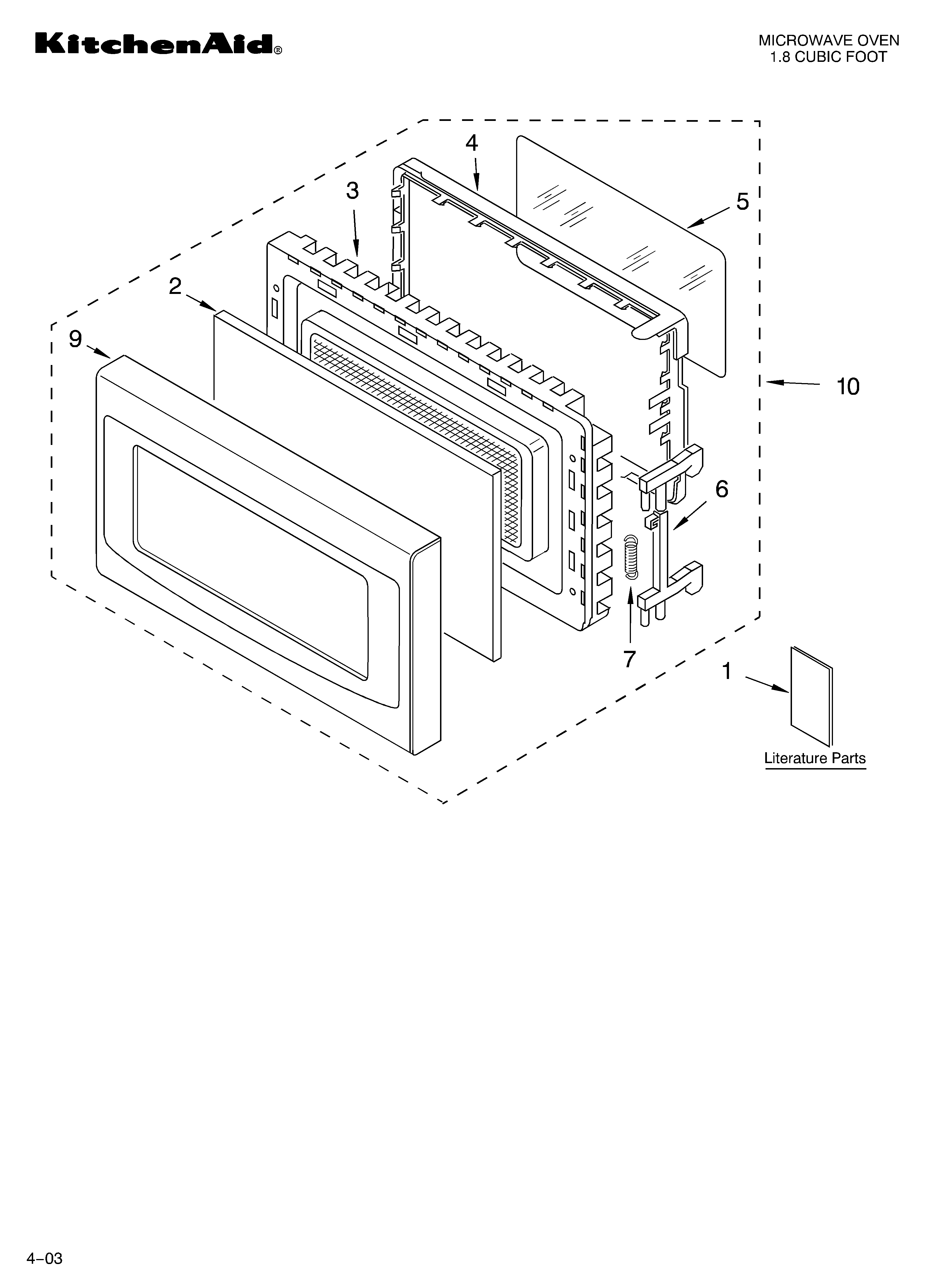

    Door parts Diagram

    Seal tape

    Part #53001850
    ?
    Manufacturer substitution
    This part replaces 4359870. Substitute parts can look different from the original.
    This part replaces 4359870
    $27.85

    In Stock

    Microwave High-Voltage Capacitor

    #4

    Oven interior parts Diagram

    Microwave high-voltage capacitor

    Part #WP8184813
    ?
    Manufacturer substitution
    This part replaces 8183525. Substitute parts can look different from the original.
    This part replaces 8183525
    $67.89 |
    9% OFF MSRP:$75.00

    Back Order

    Spring

    #3

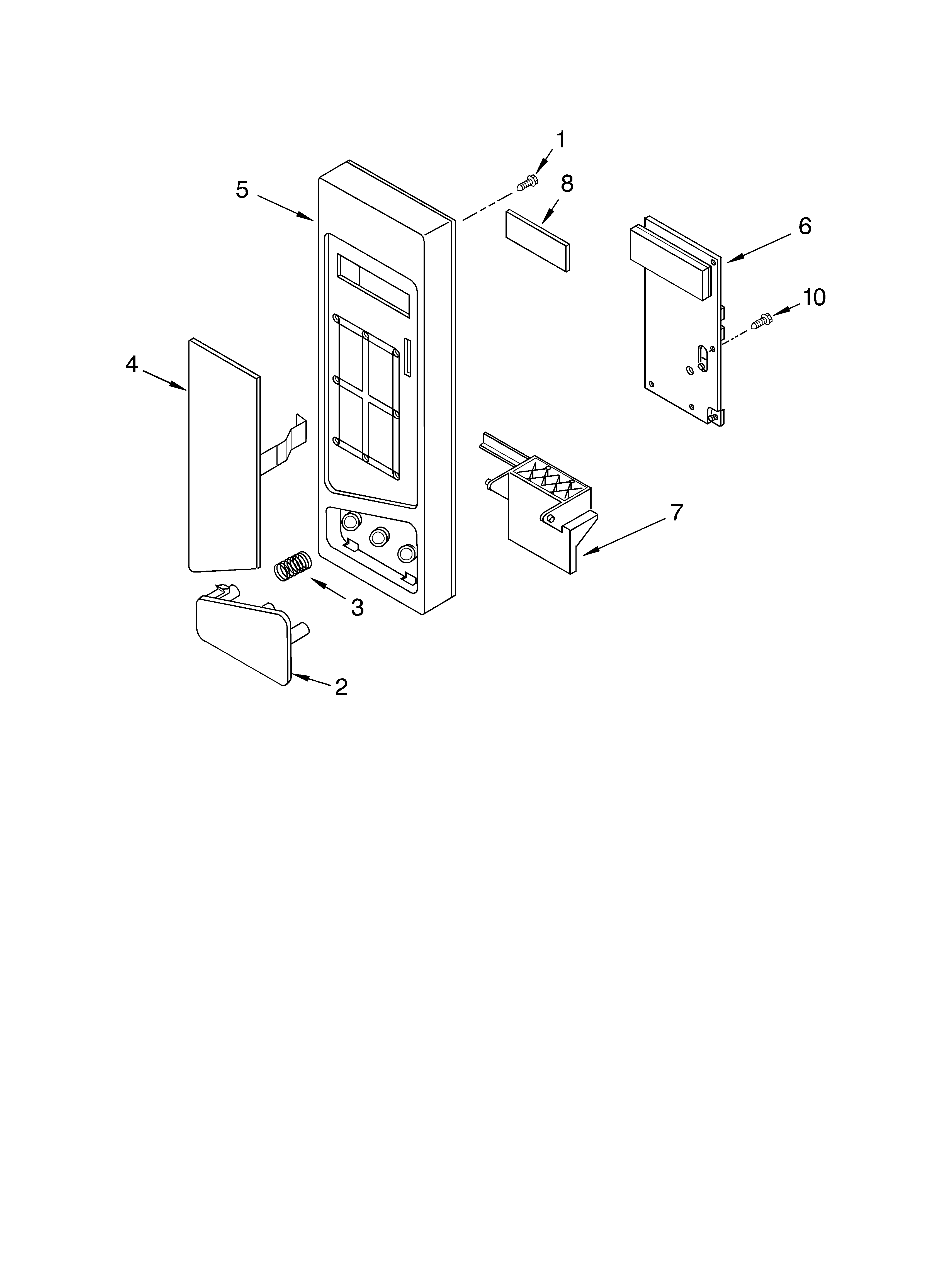

    Control panel parts Diagram

    Spring

    Part #WP4158178
    ?
    Manufacturer substitution
    This part replaces 4158178. Substitute parts can look different from the original.
    This part replaces 4158178
    This item is not returnable
    $6.09

    In Stock
