Model # 701153320 Official LXI leg lift arm curl accessory

Here are the diagrams and repair parts for Official LXI 701153320 leg lift arm curl accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Bracket 6200490
#22

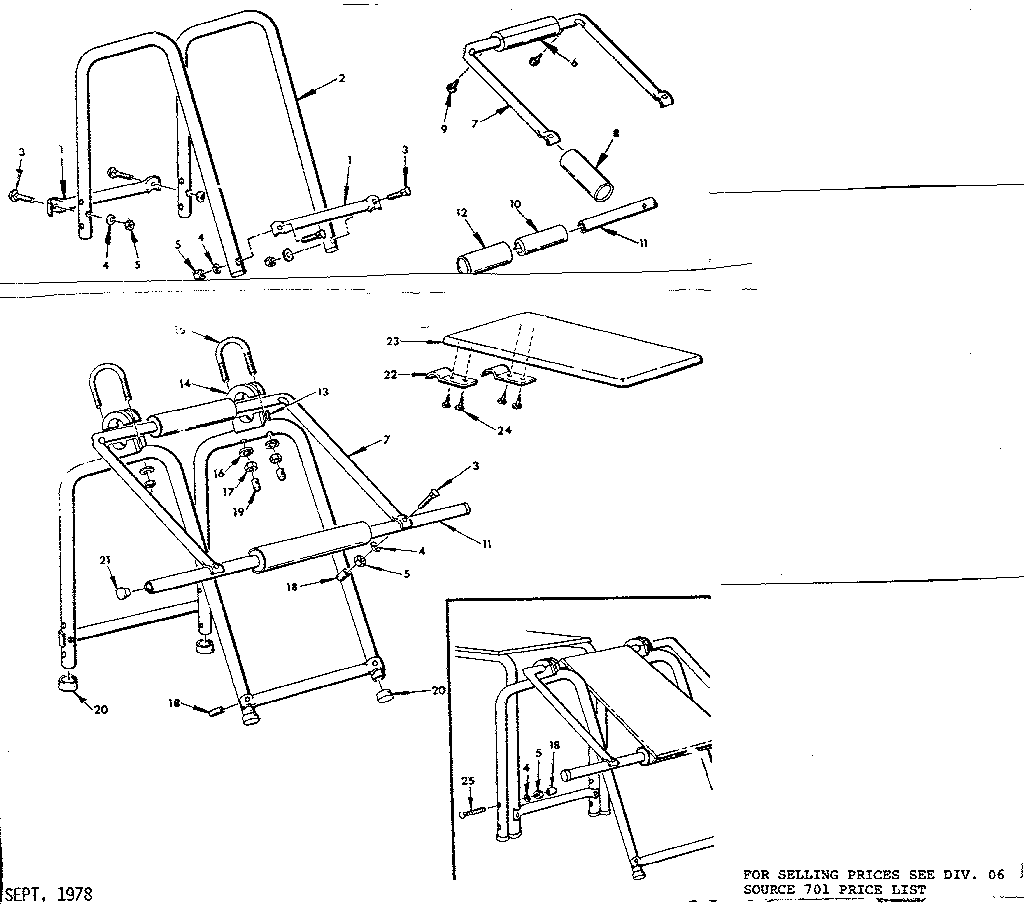

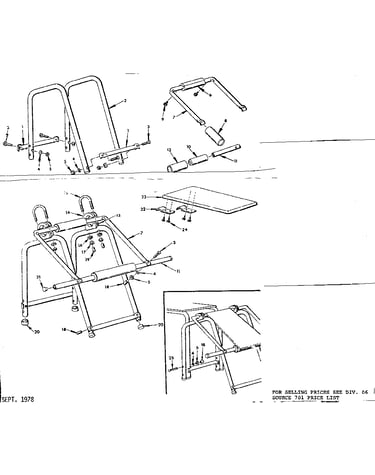

Unit parts diagram

Bracket

Part #6200490

The manufacturer no longer makes this part, and there's no substitute part

Bushing 2993920
#14

Unit parts diagram

Bushing

Part #2993920

The manufacturer no longer makes this part, and there's no substitute part

Knee Pad 2807550
#6

Unit parts diagram

Knee pad

Part #2807550

The manufacturer no longer makes this part, and there's no substitute part

Lift Tube 6200530
#11

Unit parts diagram

Lift tube

Part #6200530

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly 6200550
#8

Unit parts diagram

Cover assembly

Part #6200550

The manufacturer no longer makes this part, and there's no substitute part

Support Arm 6200520
#7

Unit parts diagram

Support arm

Part #6200520

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2997540
#3

Unit parts diagram

Bolt

Part #2997540

The manufacturer no longer makes this part, and there's no substitute part

Washer 2997520
#4

Unit parts diagram

Washer

Part #2997520

The manufacturer no longer makes this part, and there's no substitute part

Bolt Tip Cvr 2996430
#19

Unit parts diagram

Bolt tip cvr

Part #2996430

The manufacturer no longer makes this part, and there's no substitute part

Head Screw 2996830
#24

Unit parts diagram

Head screw

Part #2996830

The manufacturer no longer makes this part, and there's no substitute part
