Craftsman
Walk-Behind Mower

Model #3924 Craftsman lawn mower

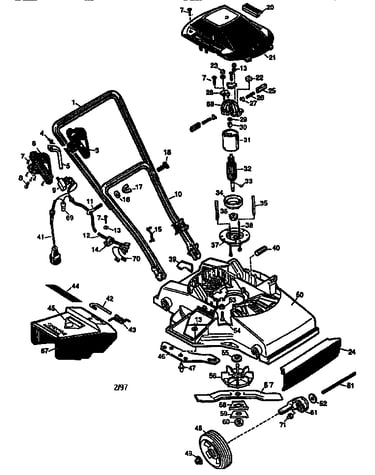

Here are the diagrams and repair parts for Craftsman 3924 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 68 parts

    Lawn Mower Blade Insulator#58

    Replacement parts Diagram

    Lawn mower blade insulator

    Part #241381-01

    The manufacturer no longer makes this part, and there's no substitute part

    Rivet#47

    Replacement parts Diagram

    Rivet

    Part #241875-00

    The manufacturer no longer makes this part, and there's no substitute part

    Plug#39

    Replacement parts Diagram

    Plug

    Part #241540-01

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#40

    Replacement parts Diagram

    Pin

    Part #241578-00

    The manufacturer no longer makes this part, and there's no substitute part

    Washer#16

    Replacement parts Diagram

    Washer

    Part #38297-00
    This item is not returnable
    In Stock
    $2.16
    Lawn Mower Torsion Spring#4

    Replacement parts Diagram

    Lawn mower torsion spring

    Part #681269-00

    The manufacturer no longer makes this part, and there's no substitute part

    Flap#24

    Replacement parts Diagram

    Flap

    Part #241524-00

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn Mower Fan#56

    Replacement parts Diagram

    Lawn mower fan

    Part #241125-00

    The manufacturer no longer makes this part, and there's no substitute part

    Pin#42

    Replacement parts Diagram

    Pin

    Part #241979-00

    The manufacturer no longer makes this part, and there's no substitute part

    Lawn Mower Bolt#11

    Replacement parts Diagram

    Lawn mower bolt

    Part #241948-00
    This item is not returnable
    In Stock
    $2.16
