Craftsman
Drill/Driver

Model # 315DD2101 Official Craftsman cordless drill

Here are the diagrams and repair parts for Official Craftsman 315DD2101 cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Power Tool Battery Charger, 12 To 19.2-volt 140155008
#NI

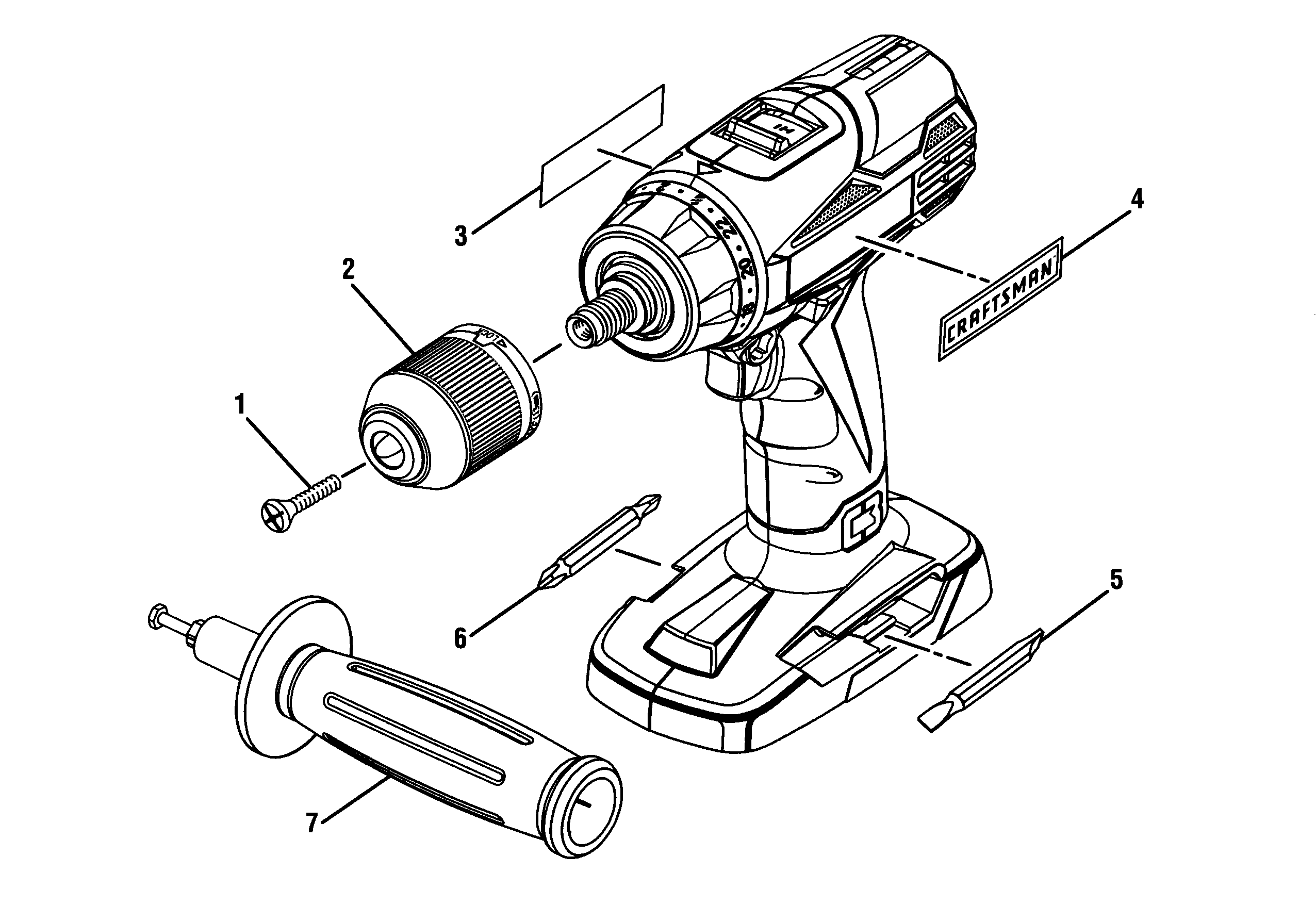

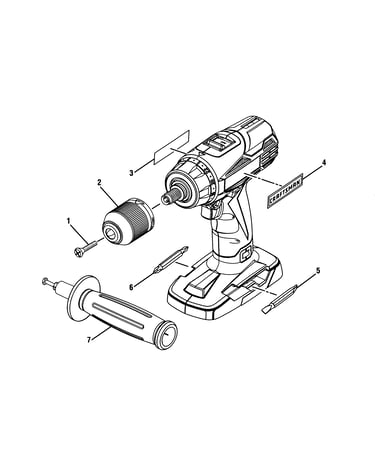

Main asy diagram

Power tool battery charger, 12 to 19.2-volt

Part #140155008

BEST SELLER
$40.08 |
11% OFF Phone Price : $45.08
In Stock
Drill Chuck 670794005
#2

Main asy diagram

Drill chuck

Part #670794005

The manufacturer no longer makes this part, and there's no substitute part

Label 941002030
#4

Main asy diagram

Label

Part #941002030

The manufacturer no longer makes this part, and there's no substitute part

Label Data 941003161
#3

Main asy diagram

Label data

Part #941003161

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bit, 6 To 7-mm 6782405
#5

Main asy diagram

Power tool bit, 6 to 7-mm

Part #6782405

The manufacturer no longer makes this part, and there's no substitute part

Drill Battery Charger, 12 To 19.2-volt 140152001
#NI

Main asy diagram

Drill battery charger, 12 to 19.2-volt

Part #140152001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 130279003
#NI

Main asy diagram

Battery pack

Part #130279003

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 660134006
#1

Main asy diagram

Drill chuck screw

Part #660134006

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Phillips Screwdriver Bit 6782106
#6

Main asy diagram

Drill/driver phillips screwdriver bit

Part #6782106

The manufacturer no longer makes this part, and there's no substitute part

Auxiliary Handle 305560003
#7

Main asy diagram

Auxiliary handle

Part #305560003

The manufacturer no longer makes this part, and there's no substitute part
