GE JXDC410N3BC cooktop

GE JXDC410N3BC cooktop Parts

Here are the diagrams and repair parts for GE JXDC410N3BC cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JXDC410N3BC Cooktops

  • Range Drip Pan, 8-in (chrome) for GE JXDC410N3BC - Part WB31K10266

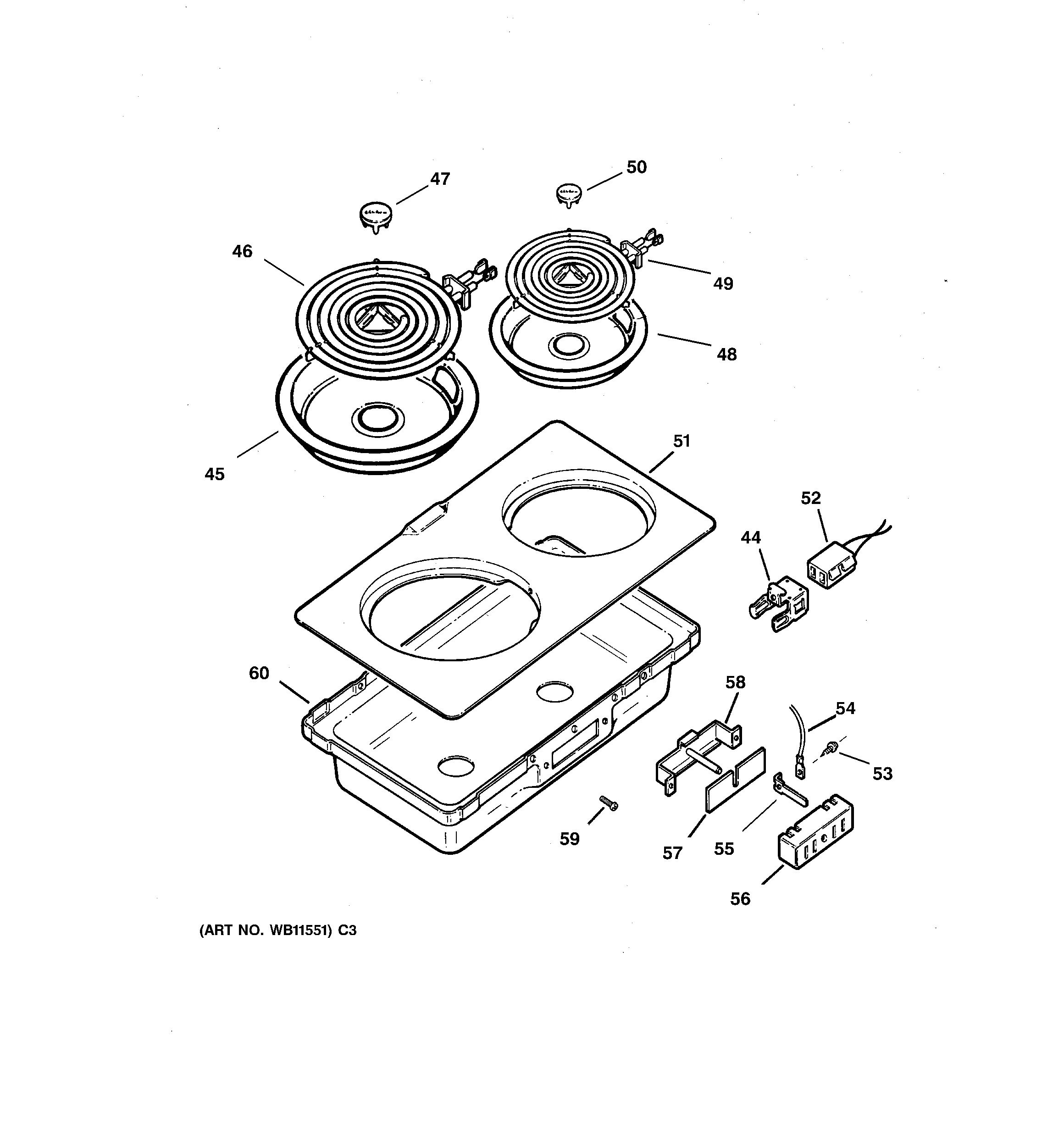

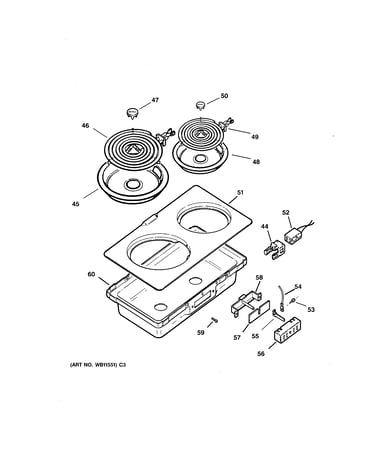

    Cooktop diagram

    Range Drip Pan

    Part #WB32X5076

    Replaced by #WB31K10266

    Info Icon
    Manufacturer substitution
    This part replaces WB32X5076. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $11.38
    15% OFF Phone Price : $13.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Drip Pan, 6-in (chrome) for GE JXDC410N3BC - Part WB31K10265

    Cooktop diagram

    Range Drip Pan

    Part #WB32X5075

    Replaced by #WB31K10265

    Info Icon
    Manufacturer substitution
    This part replaces WB32X5075. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.13
    10% OFF Phone Price : $10.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle for GE JXDC410N3BC - Part WB17X5113

    Cooktop diagram

    Receptacle

    Part #WB02X7618

    Replaced by #WB17X5113

    Info Icon
    Manufacturer substitution
    This part replaces WB02X7618. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $33.41
    15% OFF Phone Price : $39.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Receptacle for GE JXDC410N3BC - Part WB17X5113

    Cooktop diagram

    Receptacle

    Part #WB17X5094

    Replaced by #WB17X5113

    Info Icon
    Manufacturer substitution
    This part replaces WB17X5094. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $33.41
    15% OFF Phone Price : $39.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JXDC410N3BC - Part WB1X536

    Cooktop diagram

    Screw

    Part #WB01X5763

    Replaced by #WB1X536

    Info Icon
    Manufacturer substitution
    This part replaces WB01X5763. Substitute parts can look different from the original.
    In Stock
    $10.32
    16% OFF Phone Price : $12.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 8-in for GE JXDC410N3BC - Part WB30M2

    Cooktop diagram

    8" Surf Elem

    Part #WB30M0002

    Replaced by #WB30M2

    Info Icon
    Manufacturer substitution
    This part replaces WB30M0002. Substitute parts can look different from the original.
    In Stock
    $59.19
    9% OFF Phone Price : $65.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Coil Surface Element, 6-in for GE JXDC410N3BC - Part WB30M1

    Cooktop diagram

    6" Surf Elem

    Part #WB30M0001

    Replaced by #WB30M1

    Info Icon
    Manufacturer substitution
    This part replaces WB30M0001. Substitute parts can look different from the original.
    In Stock
    $42.34
    12% OFF Phone Price : $48.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Terminal for GE JXDC410N3BC - Part WB17X5099

    Cooktop diagram

    Terminal

    Part #WB17X5099

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for GE JXDC410N3BC - Part WB01X5355

    Cooktop diagram

    Screw

    Part #WB01X5355

    The manufacturer no longer makes this part, and there's no substitute part

  • Trim for GE JXDC410N3BC - Part WB32X0052

    Cooktop diagram

    Trim

    Part #WB32X0052

    The manufacturer no longer makes this part, and there's no substitute part
