Kenmore 79049603317 electric oven with microwave

Kenmore 79049603317 electric oven with microwave Parts

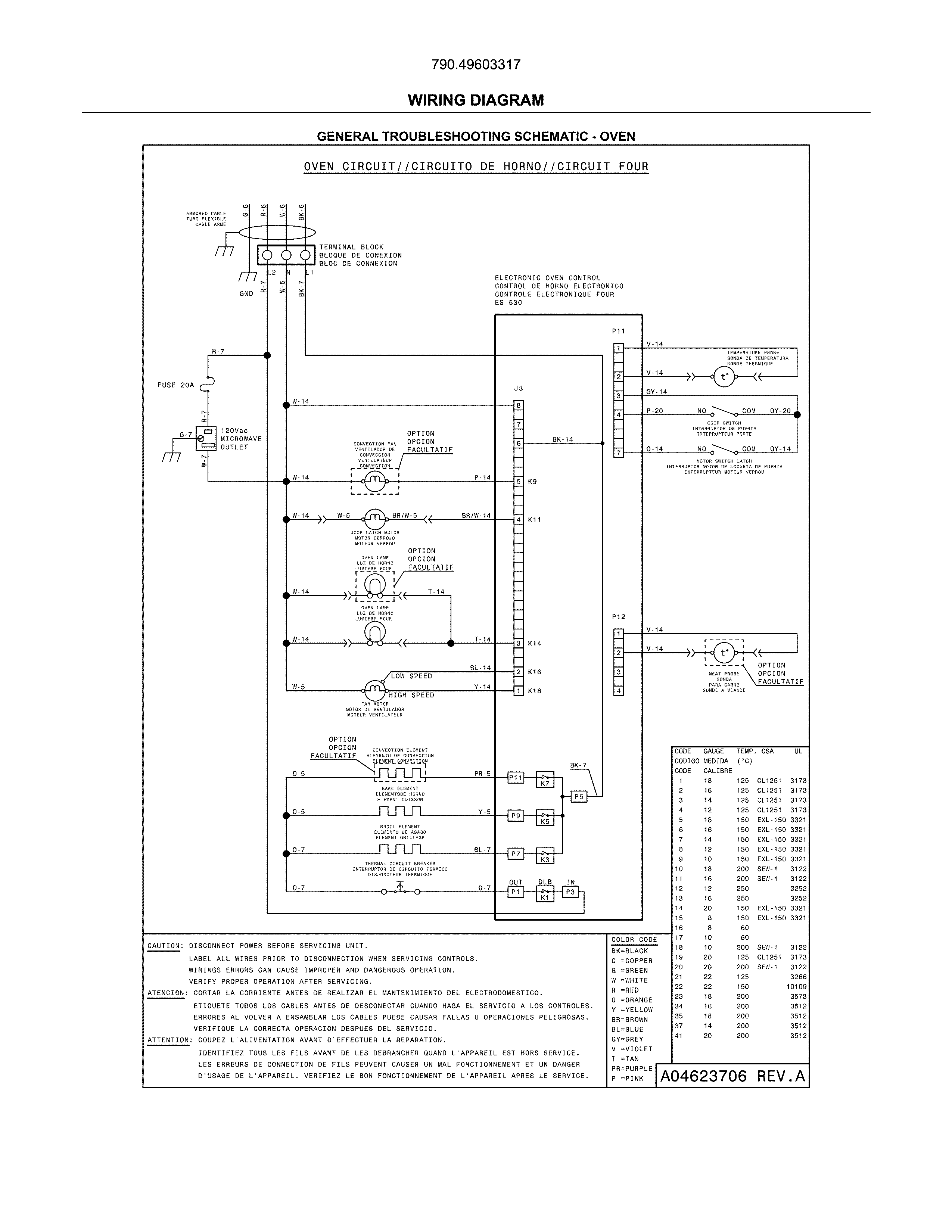

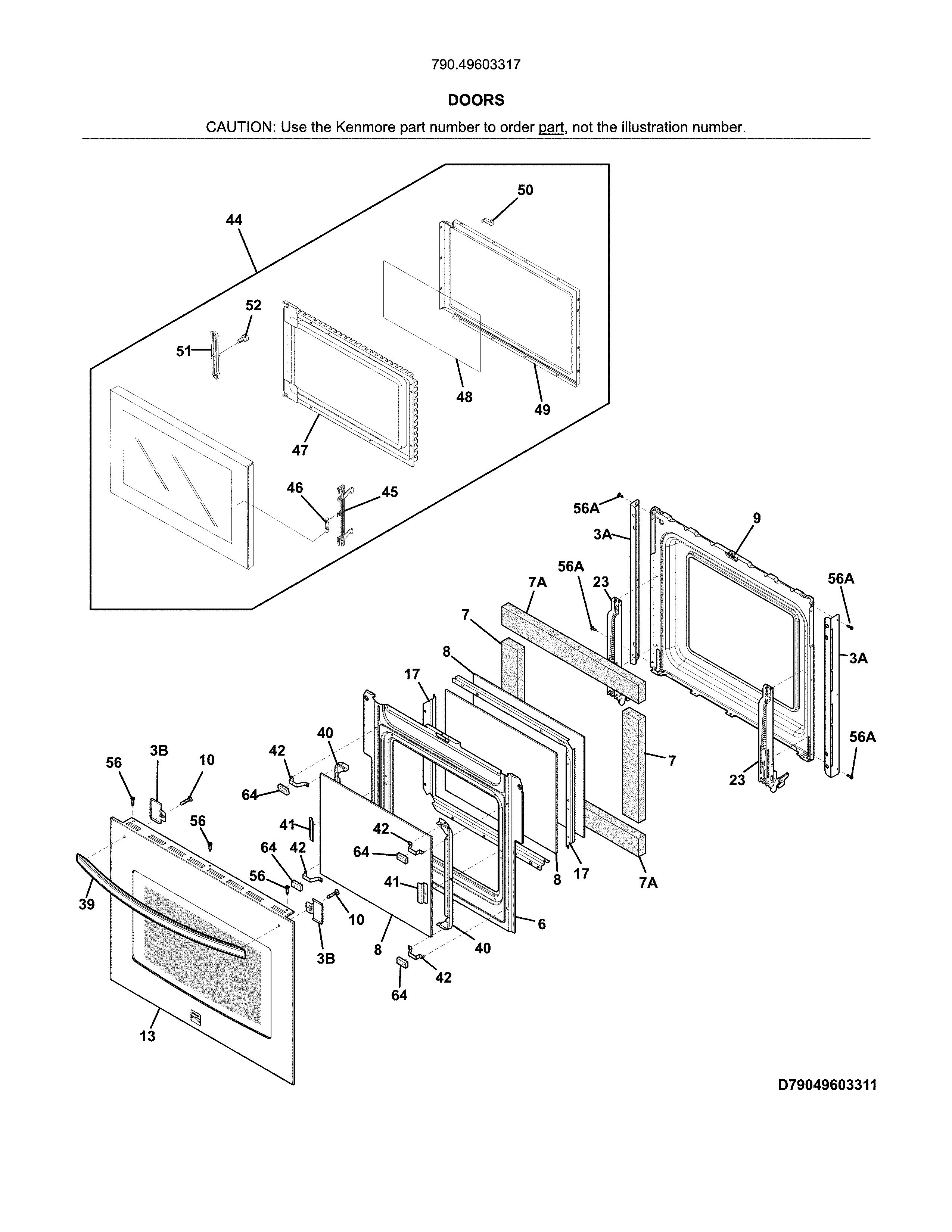

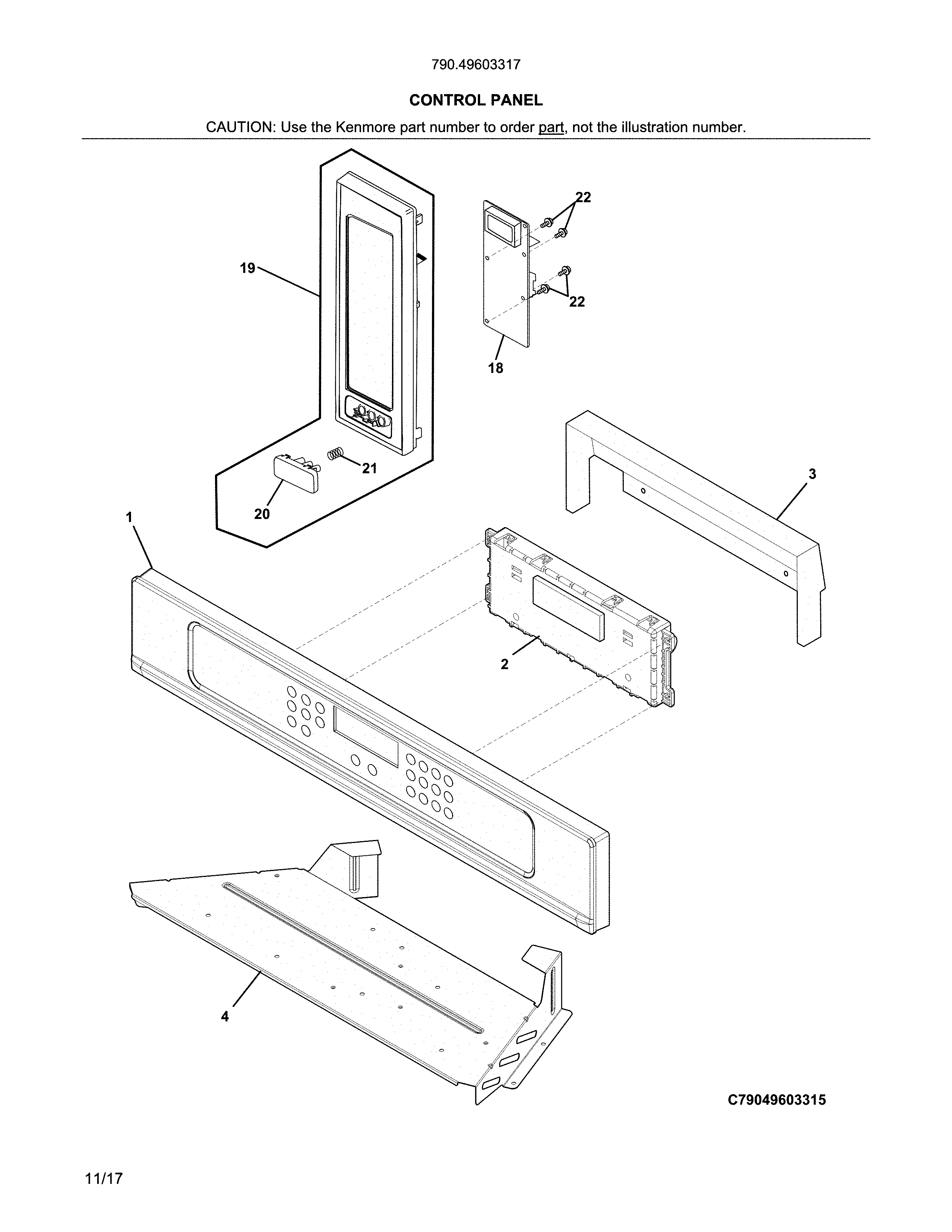

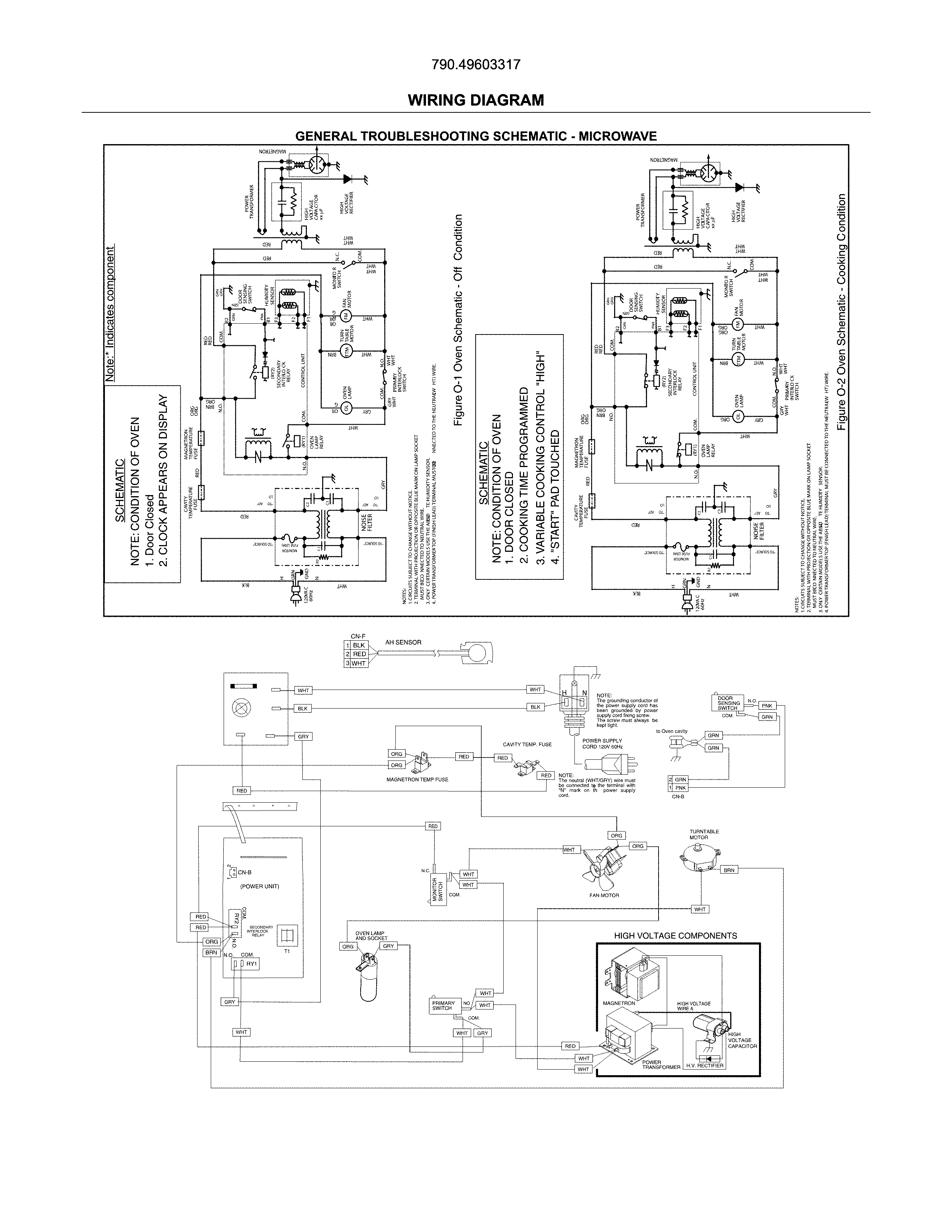

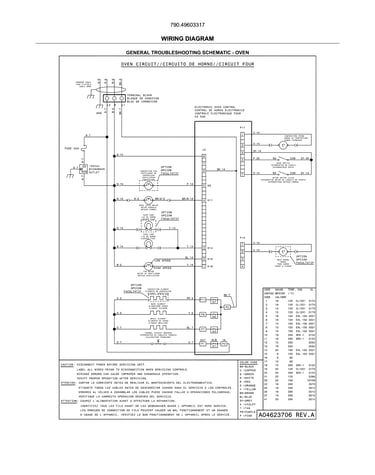

Here are the diagrams and repair parts for Kenmore 79049603317 electric oven with microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

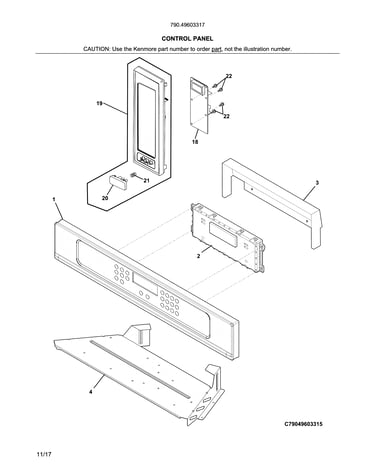

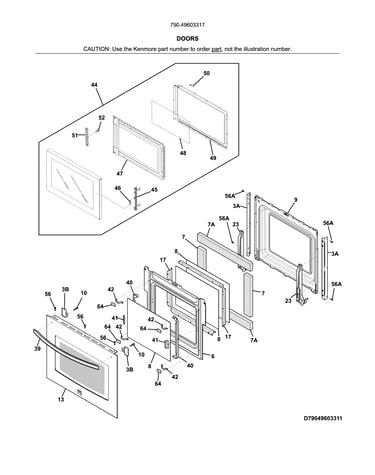

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79049603317 Electric Oven with Microwave

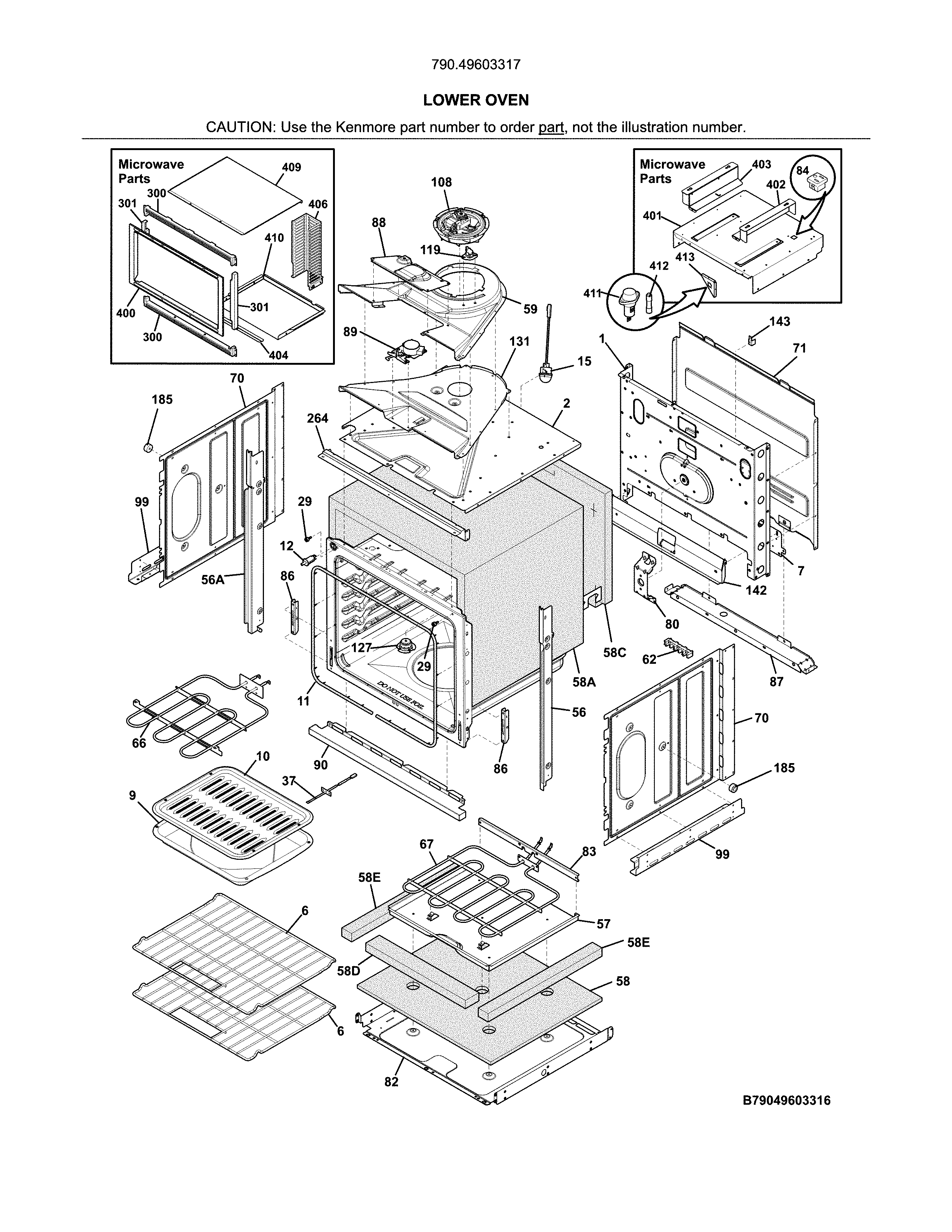

  • Cooking Appliance Oven Temperature Sensor for Kenmore 79049603317 - Part 5304504897

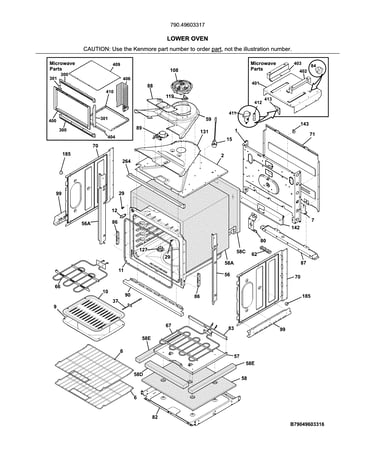

    Lower oven diagram

    Cooking Appliance Oven Temperature Sensor

    Part #5304504897
    In Stock
    $24.70
    20% OFF Phone Price : $30.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Kelvinator Range Terminal Block for Kenmore 79049603317 - Part 5304409888

    Lower oven diagram

    Terminal Block

    Part #316056000

    Replaced by #5304409888

    Info Icon
    Manufacturer substitution
    This part replaces 316056000. Substitute parts can look different from the original.
    In Stock
    $25.30
    19% OFF Phone Price : $31.30Info Icon
    Minus Item
    Qty
    Plus Item

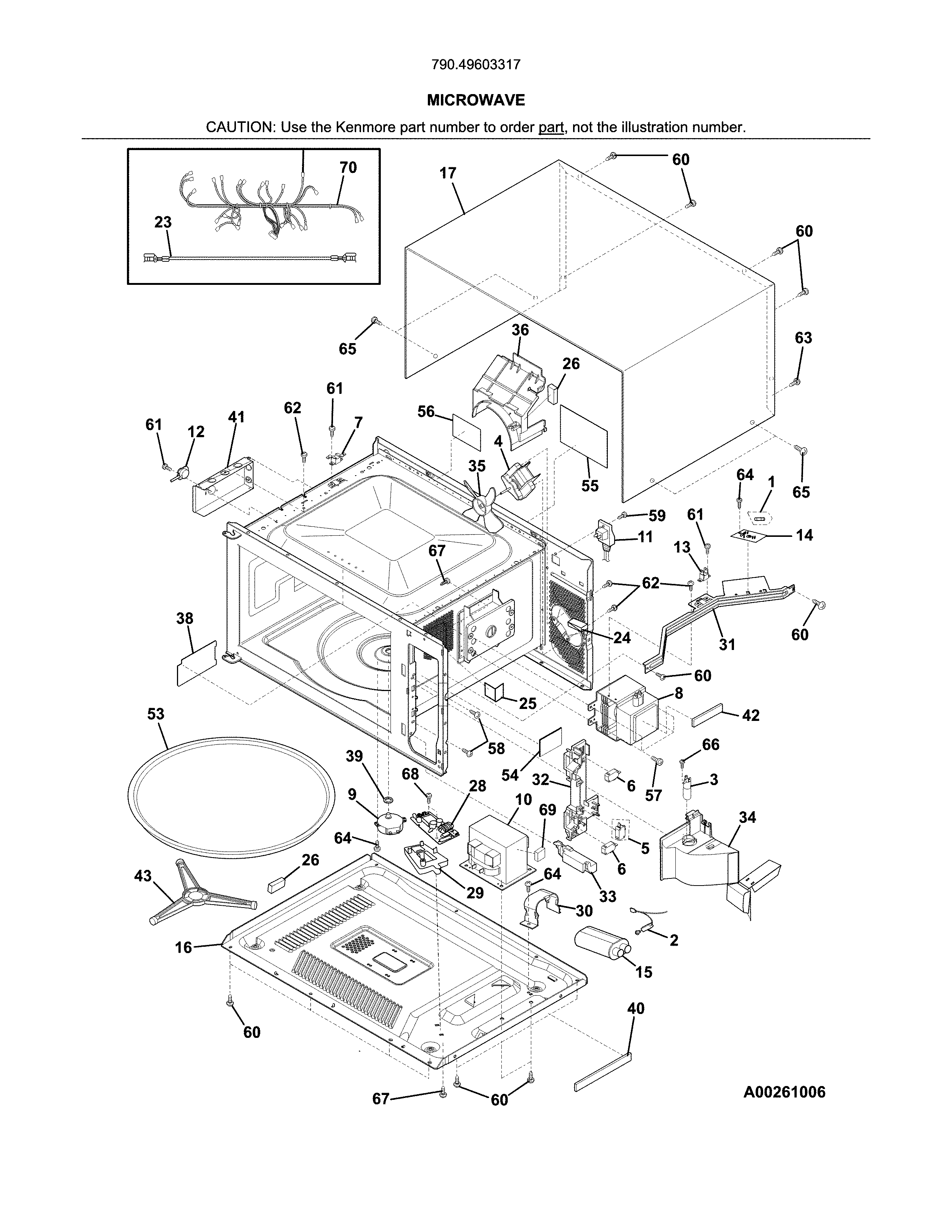

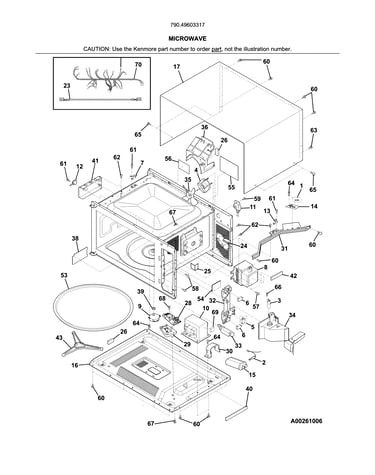

  • Microwave Door Interlock Switch for Kenmore 79049603317 - Part 5304493153

    Microwave diagram

    Microwave Door Interlock Switch

    Part #5304493153
    In Stock
    $48.44
    11% OFF Phone Price : $54.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Release Lever for Kenmore 79049603317 - Part 5304485407

    Microwave diagram

    Lever

    Part #5304464899

    Replaced by #5304485407

    Info Icon
    Manufacturer substitution
    This part replaces 5304464899. Substitute parts can look different from the original.
    In Stock
    $54.57
    10% OFF Phone Price : $60.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Magnetron for Kenmore 79049603317 - Part 5304521745

    Microwave diagram

    Wall Oven Microwave Magnetron

    Part #5304472253

    Replaced by #5304521745

    Info Icon
    Manufacturer substitution
    This part replaces 5304472253. Substitute parts can look different from the original.
    In Stock
    $165.16
    7% OFF Phone Price : $177.16Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Latch Body for Kenmore 79049603317 - Part 5304503439

    Microwave diagram

    Microwave Latch Body

    Part #5304503439
    In Stock
    $35.21
    31% OFF Was : $51.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Control Panel Cooling Fan for Kenmore 79049603317 - Part 318575612

    Lower oven diagram

    Range Control Panel Cooling Fan

    Part #318575612
    In Stock
    $174.67
    6% OFF Phone Price : $186.67Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Fuse And Holder for Kenmore 79049603317 - Part 318647300

    Lower oven diagram

    Fuse

    Part #318576100

    Replaced by #318647300

    Info Icon
    Manufacturer substitution
    This part replaces 318576100. Substitute parts can look different from the original.
    In Stock
    $139.25
    8% OFF Phone Price : $151.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Fuse And Holder for Kenmore 79049603317 - Part 318647300

    Lower oven diagram

    Holder

    Part #318576200

    Replaced by #318647300

    Info Icon
    Manufacturer substitution
    This part replaces 318576200. Substitute parts can look different from the original.
    In Stock
    $139.25
    8% OFF Phone Price : $151.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for Kenmore 79049603317 - Part 5304462314

    Microwave diagram

    Cover

    Part #5304478947

    Replaced by #5304462314

    Info Icon
    Manufacturer substitution
    This part replaces 5304478947. Substitute parts can look different from the original.
    In Stock
    $50.47
    11% OFF Phone Price : $56.47Info Icon
    Minus Item
    Qty
    Plus Item
