Model # 358795630-1995 Official Craftsman gas hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 358795630-1995 gas hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Line Kit 530-069247
#58

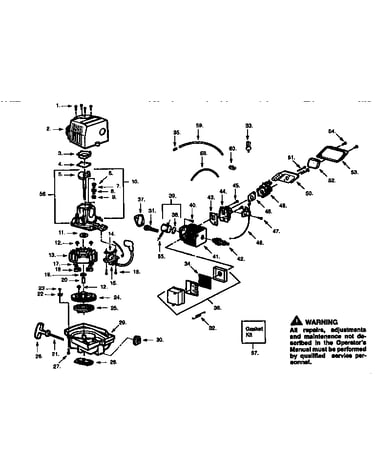

Engine diagram

Line kit

Part #530-069247

Replaced by #530069247

?
Manufacturer substitution
This part replaces 530-069247. Substitute parts can look different from the original.
BEST SELLER
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Fuel Assembly 530-014362
#33

Engine diagram

Fuel assembly

Part #530-014362

Replaced by #530095646

?
Manufacturer substitution
This part replaces 530-014362. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Fitting 530-023877
#35

Engine diagram

Fitting

Part #530-023877

Replaced by #530023877

?
Manufacturer substitution
This part replaces 530-023877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.19 |
24% OFF Phone Price : $4.19
In Stock
Gasket 530-035313
#41

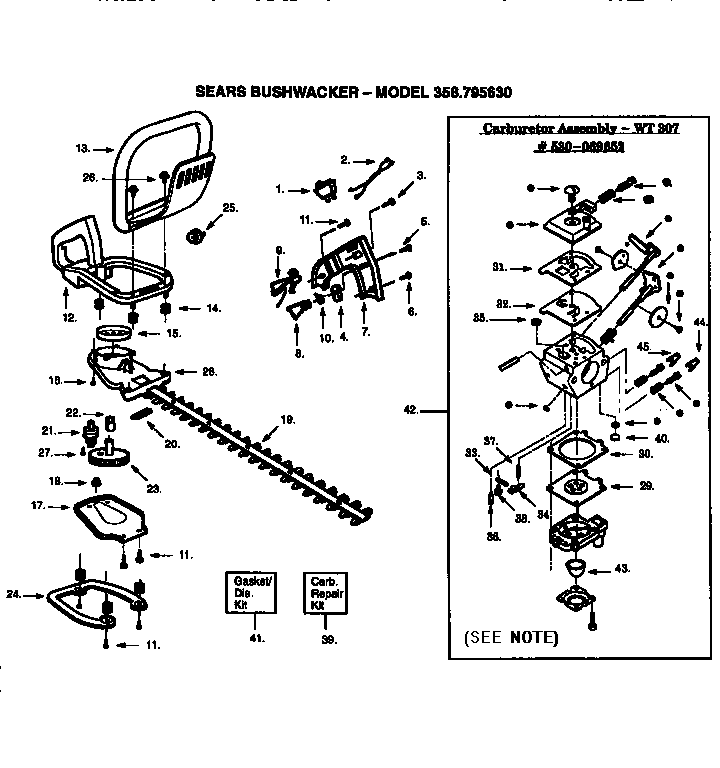

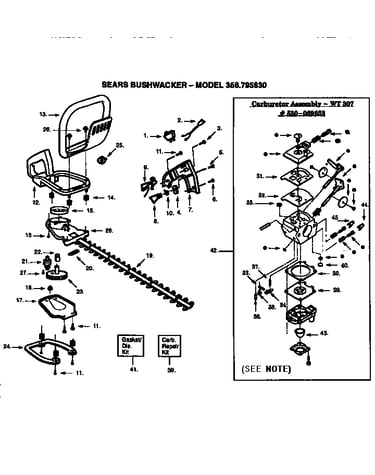

Bushwacker/carburetor diagram

Gasket

Part #530-035313

Replaced by #530069844

?
Manufacturer substitution
This part replaces 530-035313. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$14.37 |
12% OFF Phone Price : $16.37
Back Order
Flywheel Assembly 530-039149
#13

Engine diagram

Flywheel assembly

Part #530-039149

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530-039149. Substitute parts can look different from the original.
This item is not returnable
$15.99 |
11% OFF Phone Price : $17.99
In Stock
Assy-fuel Ca 530-014871
#25

Bushwacker/carburetor diagram

Assy-fuel ca

Part #530-014871

Replaced by #577858601

?
Manufacturer substitution
This part replaces 530-014871. Substitute parts can look different from the original.
This item is not returnable
$5.39 |
16% OFF Phone Price : $6.39
In Stock
Screw 530-015849
#51

Engine diagram

Screw

Part #530-015849

Replaced by #530015849

?
Manufacturer substitution
This part replaces 530-015849. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
Screw 530-015805
#27

Bushwacker/carburetor diagram

Screw

Part #530-015805

Replaced by #530015805

?
Manufacturer substitution
This part replaces 530-015805. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Screw 530-015496
#23

Engine diagram

Screw

Part #530-015496

Replaced by #530015805

?
Manufacturer substitution
This part replaces 530-015496. Substitute parts can look different from the original.
This item is not returnable
$3.43
In Stock
Screw 530-015934
#11

Bushwacker/carburetor diagram

Screw

Part #530-015934

Replaced by #530015934

?
Manufacturer substitution
This part replaces 530-015934. Substitute parts can look different from the original.
This item is not returnable
$2.99
In Stock
