Kenmore 625342170 deluxe automatic iron filter Parts

Name: Kenmore 625342170 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 625342170
Availability: InStock

Here are the diagrams and repair parts for Kenmore 625342170 deluxe automatic iron filter, as well as links to manuals and error code tables, if available.

Error Codes

Kenmore 625342170 deluxe automatic iron filter

By Schematic

SELECT DIAGRAM

Browse Parts for625342170 Water Treatment

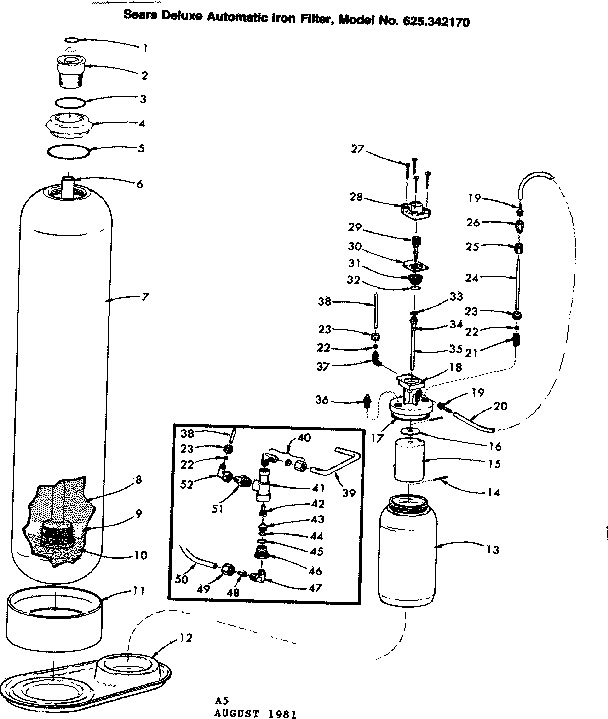

Unit parts diagram
Screw
Part #900821
Replaced by #9006042
Manufacturer substitution
This part replaces 900821. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.99
Qty

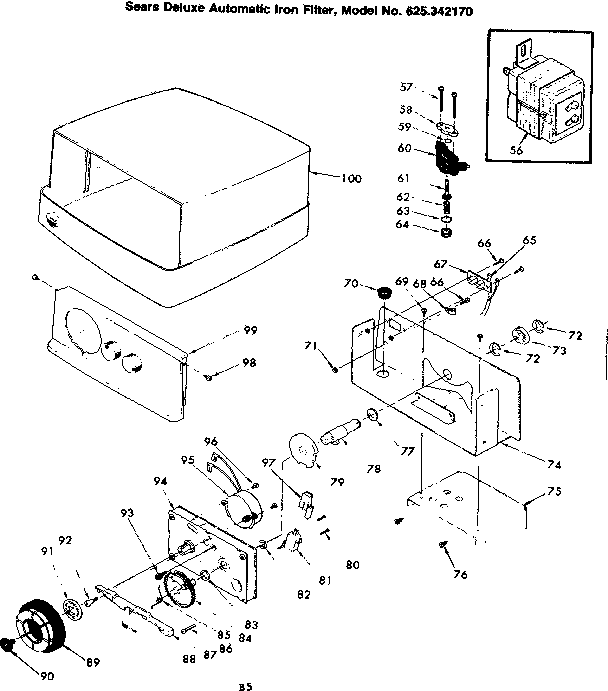

Timer assembly diagram
Clutch
Part #523604
Replaced by #0523604
Manufacturer substitution
This part replaces 523604. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.69
Qty
Timer assembly diagram
Transformer
Part #2260000
Replaced by #7289540
Manufacturer substitution
This part replaces 2260000. Substitute parts can look different from the original.
In Stock
$164.94
Qty
Timer assembly diagram
Screw
Part #900528
The manufacturer no longer makes this part, and there's no substitute part

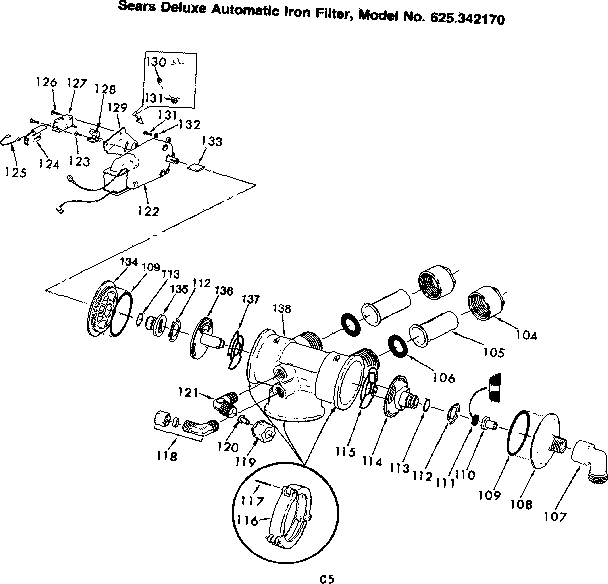

Filter valve diagram
Drain Elbow
Part #1105800
The manufacturer no longer makes this part, and there's no substitute part
Timer assembly diagram
E-ring
Part #900096
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Bent Tubing
Part #1155500
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Pin
Part #1135800
The manufacturer no longer makes this part, and there's no substitute part
Filter valve diagram
O-ring
Part #900208
The manufacturer no longer makes this part, and there's no substitute part
Timer assembly diagram
Screw
Part #9006011
The manufacturer no longer makes this part, and there's no substitute part
