Model # PA13NR03600GAAAA Official Payne split-system air conditioner

Here are the diagrams and repair parts for Official Payne PA13NR03600GAAAA split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Contactor HN51KC024
#21

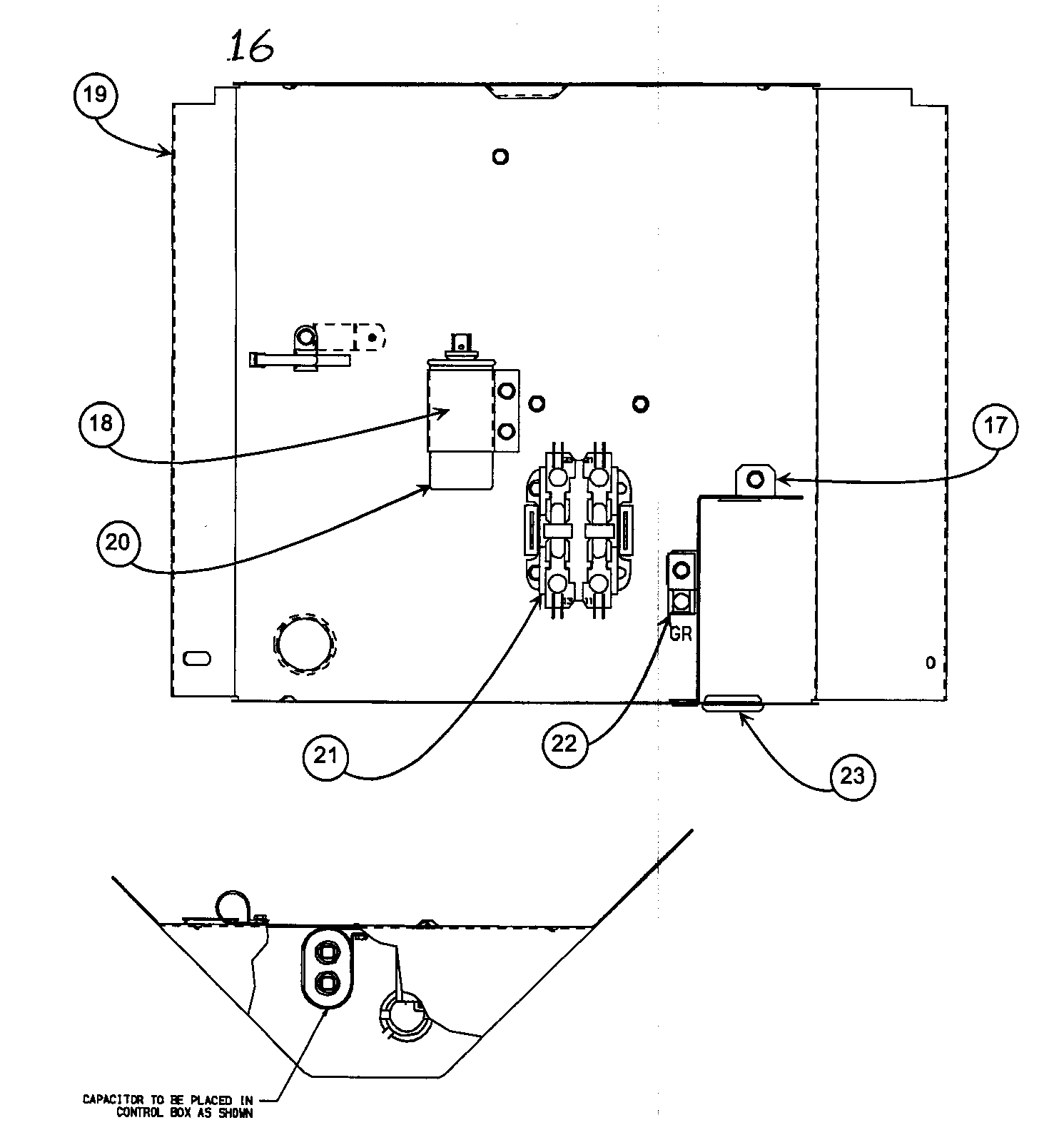

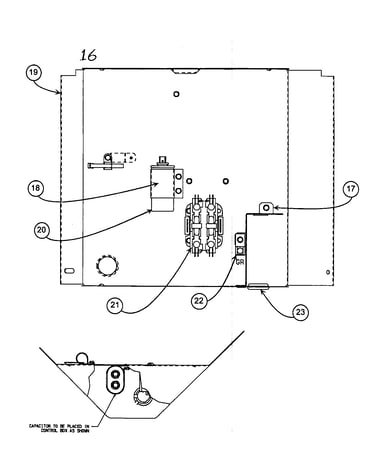

Cabinet parts 4 diagram

Contactor

Part #HN51KC024

The manufacturer no longer makes this part, and there's no substitute part

Relay HN67ZZ001
#NI

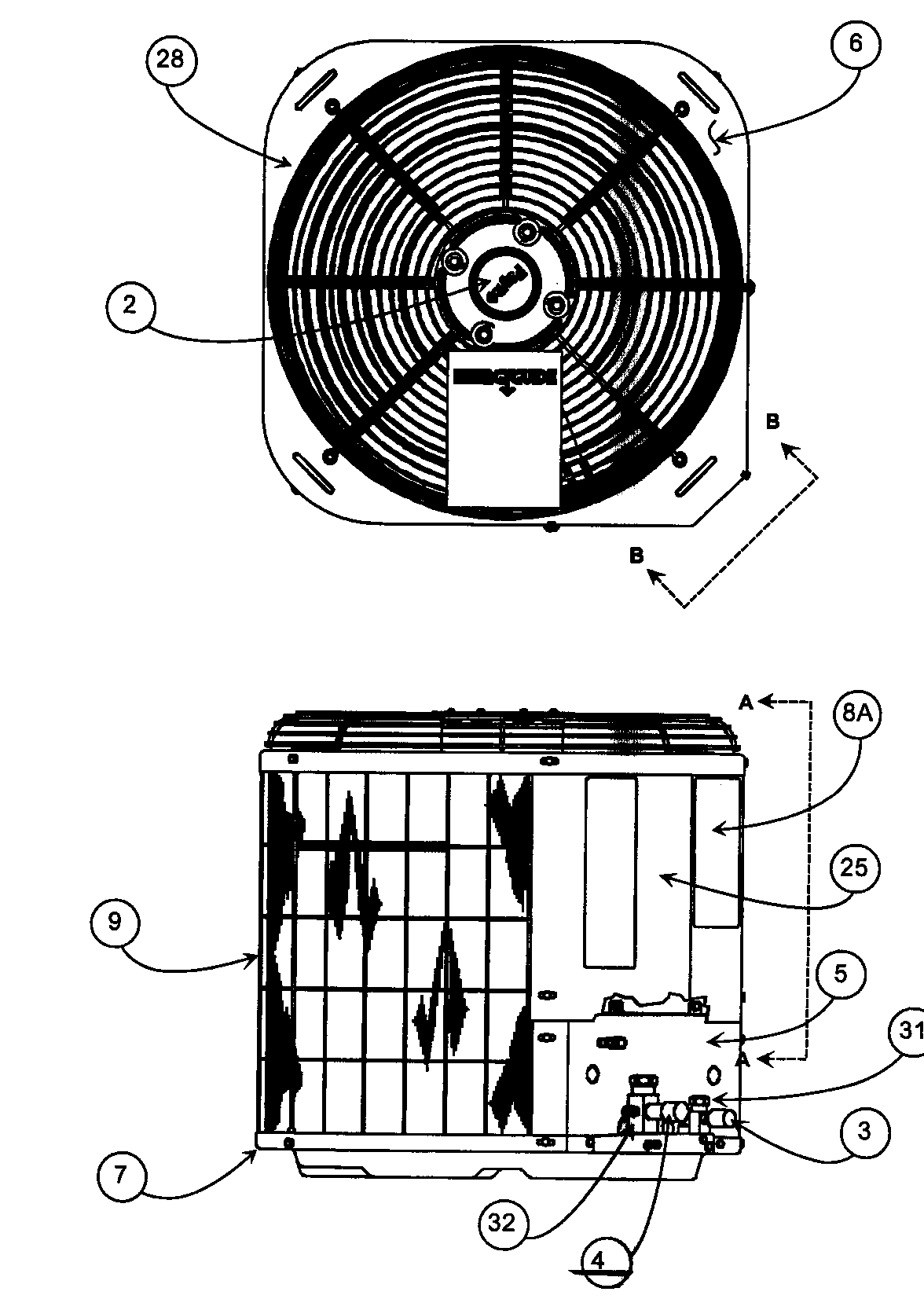

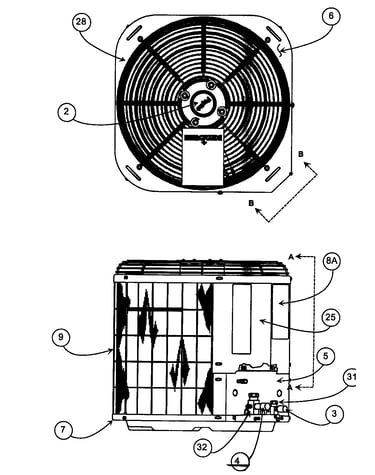

Cabinet parts 1 diagram

Relay

Part #HN67ZZ001

$110.84
In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc376e210a) HC37GE210
#29

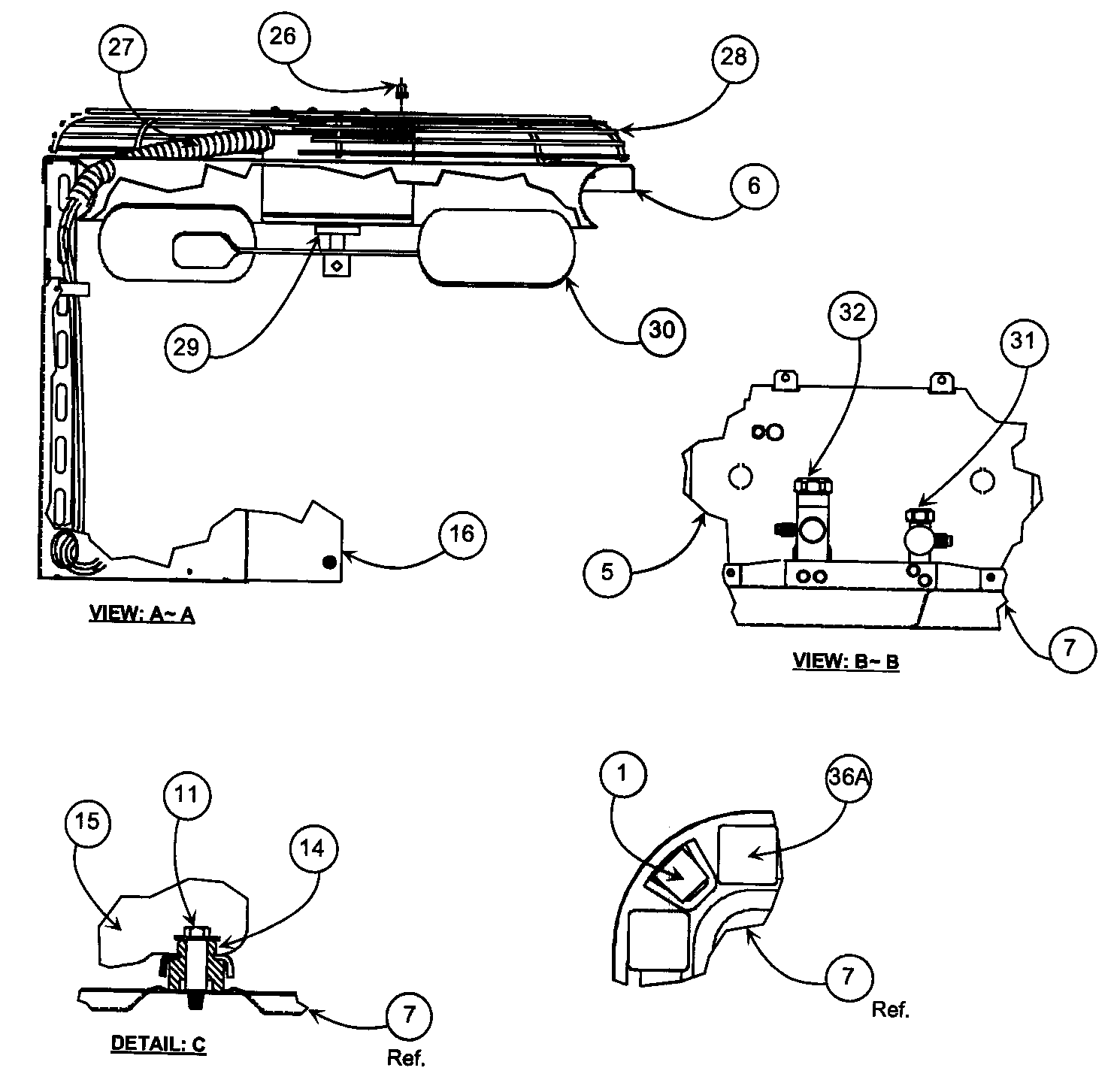

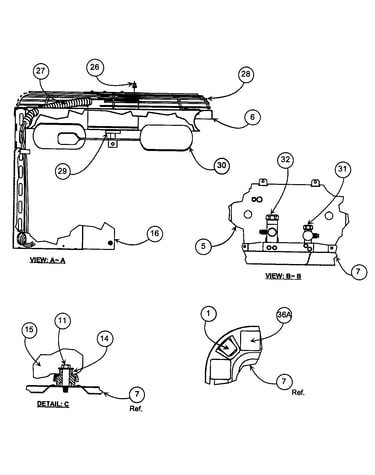

Cabinet parts 2 diagram

Central air conditioner condenser fan motor (replaces hc376e210a)

Part #HC37GE210

$557.77
In Stock
Fan LA01EA025
#30

Cabinet parts 2 diagram

Fan

Part #LA01EA025

$151.14
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#NI

Cabinet parts 1 diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Plug Assembly P298-001
#NI

Cabinet parts 1 diagram

Plug assembly

Part #P298-001

$45.89
In Stock
Fan Guard 330277-401
#28

Cabinet parts 1 diagram

Fan guard

Part #330277-401

Replaced by #323745-412

?
Manufacturer substitution
This part replaces 330277-401. Substitute parts can look different from the original.
$245.56 |
$10.00 OFF Phone Price : $255.56
In Stock
Sw Temp Ac HH18HA285
#NI

Cabinet parts 1 diagram

Sw temp ac

Part #HH18HA285

$22.27
In Stock
Label 324470-101
#8A

Cabinet parts 1 diagram

Label

Part #324470-101

$23.62
In Stock
Switch HK02ZA225
#NI

Cabinet parts 1 diagram

Switch

Part #HK02ZA225

$420.27
In Stock
