Craftsman 471461420 broadcast sprayer Parts
Here are the diagrams and repair parts for Craftsman 471461420 broadcast sprayer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 471461420 Broadcast Sprayer
Bypass valve 5143066 diagram
Ball
Part #5026014
The manufacturer no longer makes this part, and there's no substitute part

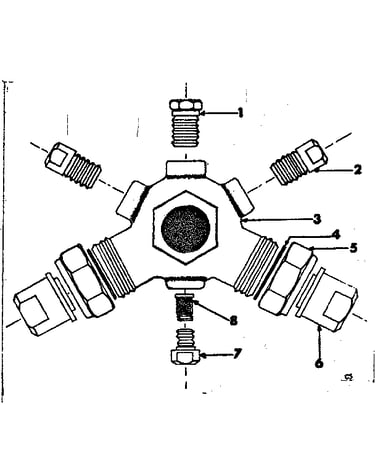

Boomless nozzle 5138475 diagram
Strainer Body
Part #5002336
The manufacturer no longer makes this part, and there's no substitute part
1/2 X 1 1/2 Machine Bolt (standard Hardware Item - Must Be Purchased Locally)
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Bypass valve 5143066 diagram
Body Cap
Part #5046063
The manufacturer no longer makes this part, and there's no substitute part
Boomless nozzle 5138475 diagram
Tip
Part #5138249
The manufacturer no longer makes this part, and there's no substitute part
Boomless nozzle 5138475 diagram
Pipe Plug Br
Part #5102020
The manufacturer no longer makes this part, and there's no substitute part

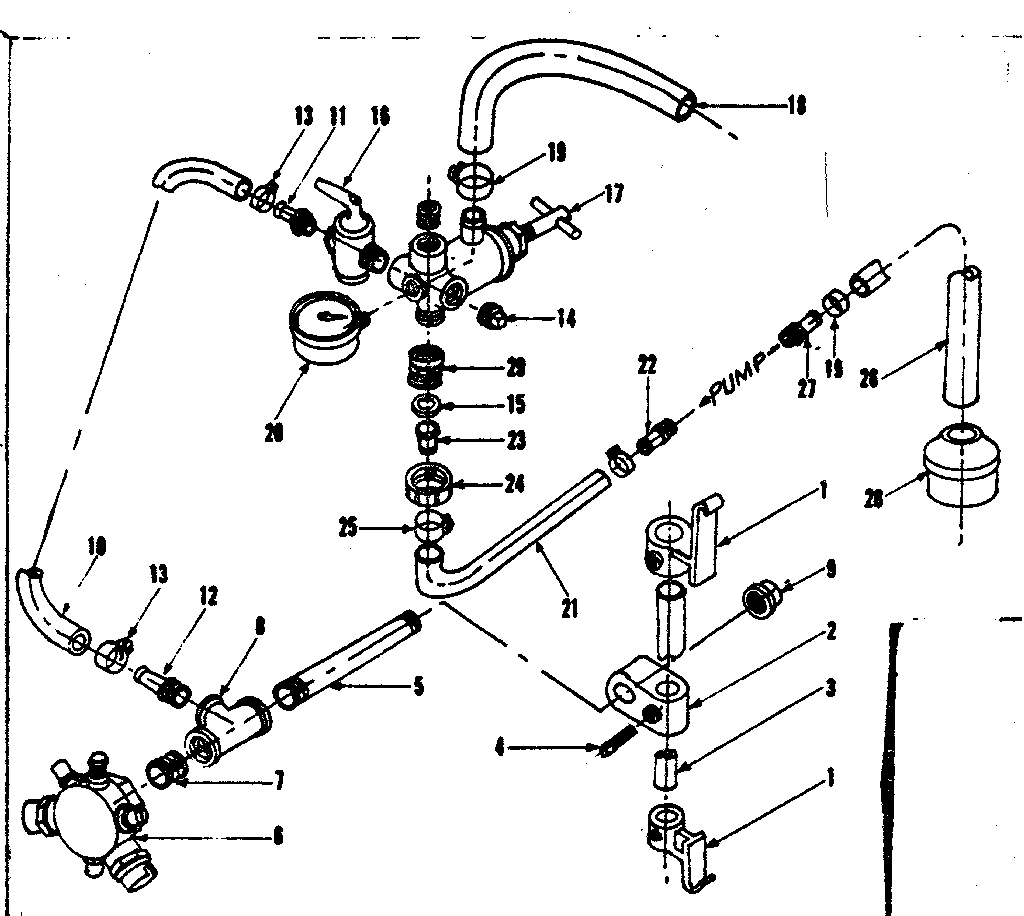

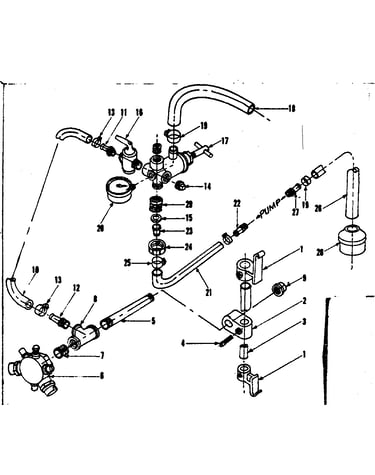

Replacement parts diagram
Screen
Part #5116110
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Hose Washer
Part #5016066
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Fitting
Part #5005023
The manufacturer no longer makes this part, and there's no substitute part
Clamp
Part #5051015
The manufacturer no longer makes this part, and there's no substitute part
