Kenmore
Countertop Microwave

Model # 56568480791 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 56568480791 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

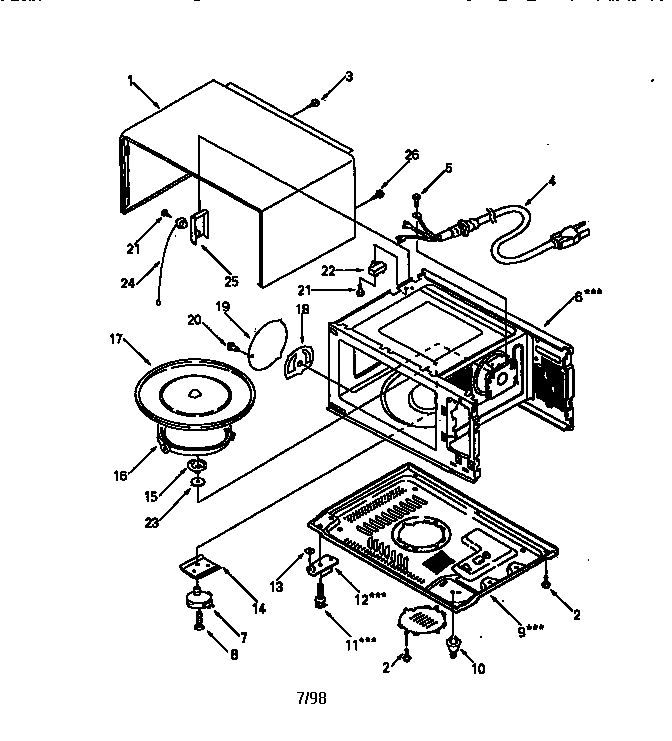

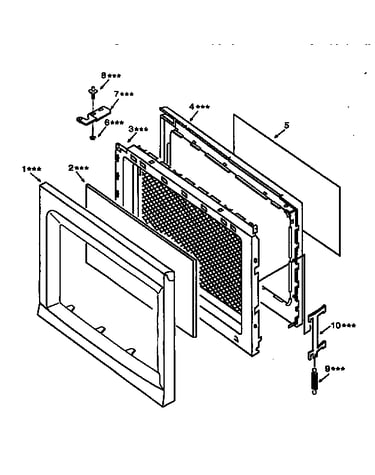

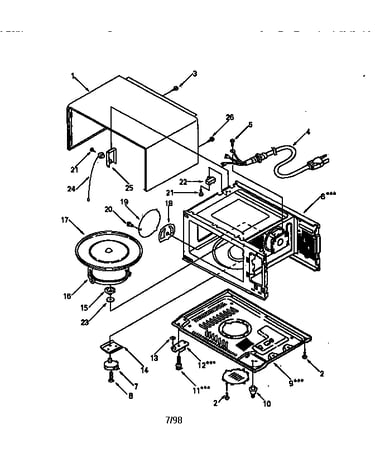

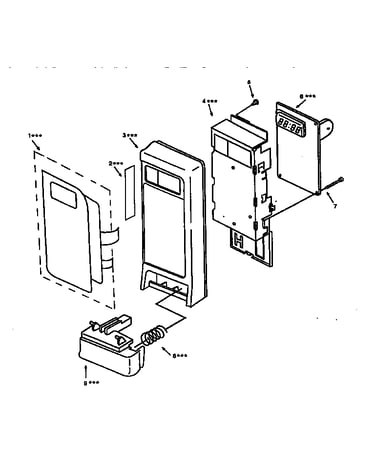

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |

Switch 617-152-4741
Switch

Part #617-152-4741

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 617-162-2362
#11

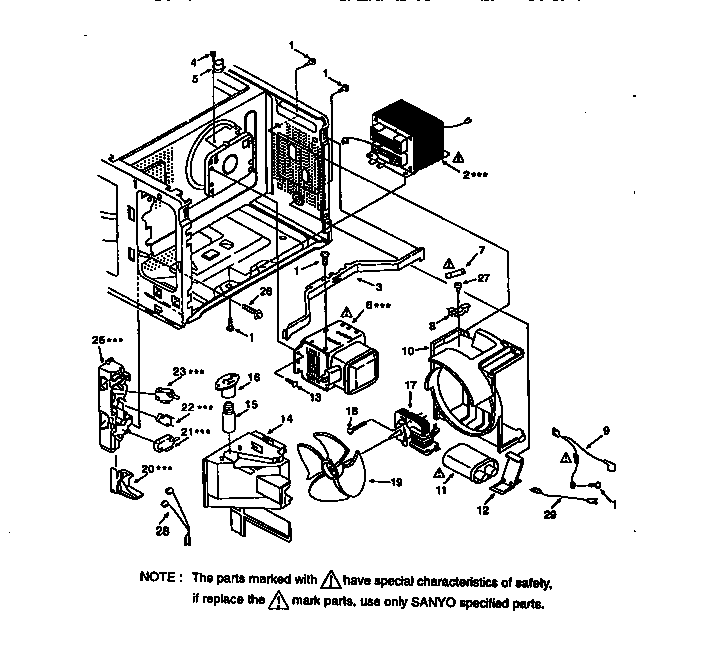

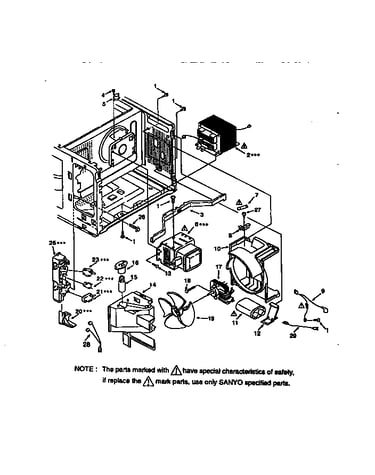

Switches and microwave diagram

Capacitor

Part #617-162-2362

The manufacturer no longer makes this part, and there's no substitute part

220 Ohm 5% 401-016-2505
220 ohm 5%

Part #401-016-2505

The manufacturer no longer makes this part, and there's no substitute part

3.3k 5% 401-018-3708
#R113

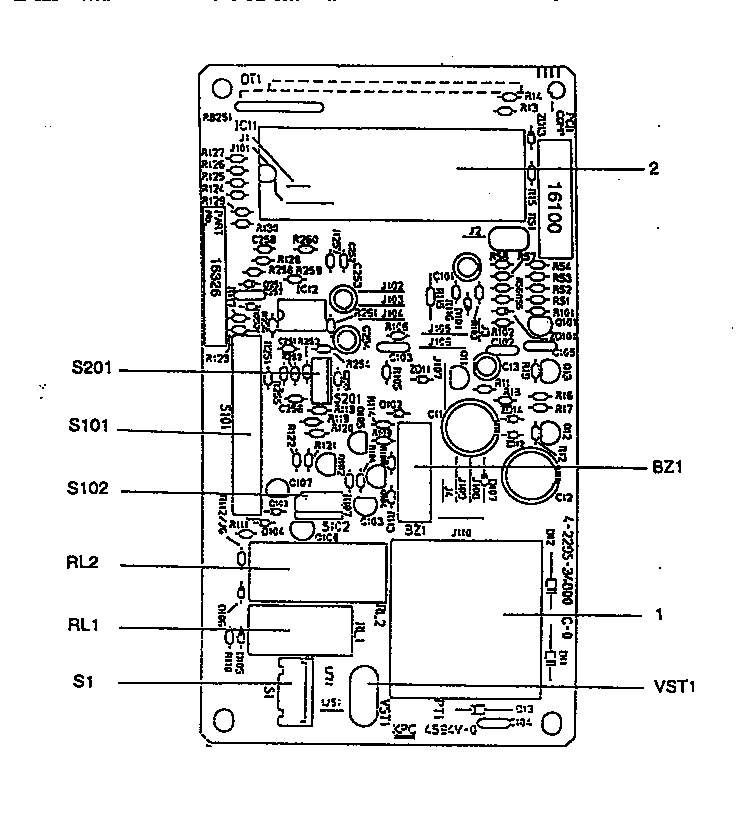

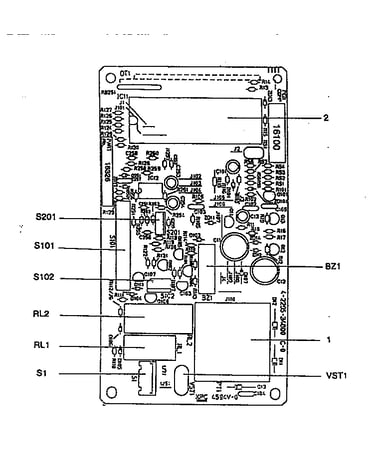

Power and control circuit board (part no 16326) diagram

3.3k 5%

Part #401-018-3708

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-020-2805
Resistor

Part #401-020-2805

The manufacturer no longer makes this part, and there's no substitute part

Res U2 401-018-2701
#R110

Power and control circuit board (part no 16326) diagram

Res u2

Part #401-018-2701

The manufacturer no longer makes this part, and there's no substitute part

Resistor 401-013-5202
Resistor

Part #401-013-5202

The manufacturer no longer makes this part, and there's no substitute part

1n4007-di 407-012-0309
1n4007-di

Part #407-012-0309

The manufacturer no longer makes this part, and there's no substitute part

Micro-switch 617-004-5575
#22

Switches and microwave diagram

Micro-switch

Part #617-004-5575

The manufacturer no longer makes this part, and there's no substitute part

Tr 2sa56a 405-004-3000
Tr 2sa56a

Part #405-004-3000

The manufacturer no longer makes this part, and there's no substitute part
