Model # AZ32H07E4BM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ32H07E4BM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
E-ring WP2X10002
#1432

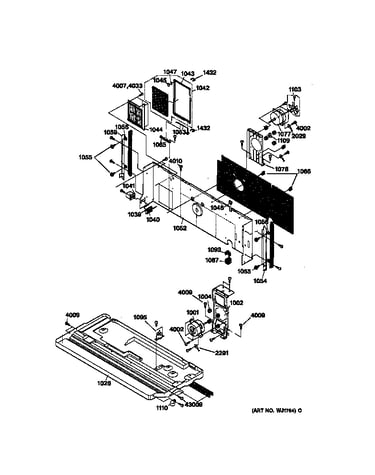

Interior diagram

E-ring

Part #WP2X10002

This item is not returnable
$2.29
In Stock
Filter Gu WJ5X10013
#1023

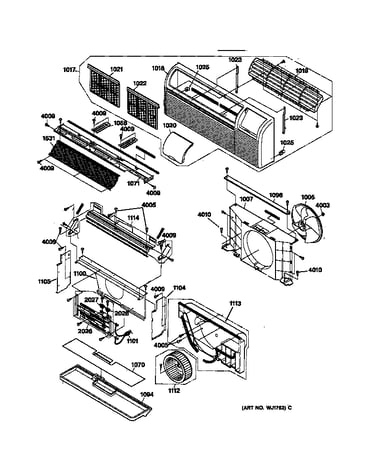

Cabinet diagram

Filter gu

Part #WJ5X10013

This item is not returnable
$2.29
In Stock
Spring WP2X10001
#1025

Cabinet diagram

Spring

Part #WP2X10001

This item is not returnable
$2.29
In Stock
Wire Fixi WJ3X10012
#1027

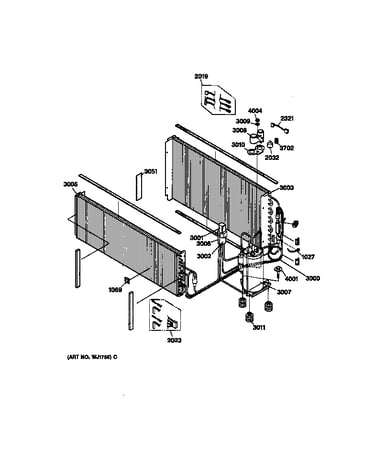

Condenser diagram

Wire fixi

Part #WJ3X10012

This item is not returnable
$2.29
In Stock
Knob Base WP7X10003
#1107

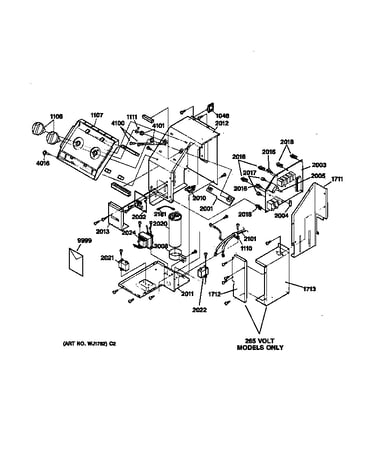

Controls diagram

Knob base

Part #WP7X10003

This item is not returnable
$2.29
In Stock
Damper Wi WP1X10003
#1053

Interior diagram

Damper wi

Part #WP1X10003

This item is not returnable
$2.29
In Stock
Spring Pr WJ2X10001

#NI

All parts diagram

Spring pr

Part #WJ2X10001

This item is not returnable
$4.49
In Stock
Special Screw WP1X10004
#1055

Interior diagram

Special screw

Part #WP1X10004

This item is not returnable
$2.29
In Stock
Tapping S WJ1X10057
#4033

Interior diagram

Tapping s

Part #WJ1X10057

This item is not returnable
$2.29
In Stock
Cord Holder WP1X10009
#1066

Interior diagram

Cord holder

Part #WP1X10009

This item is not returnable
$2.29
In Stock
