Kenmore 86781561 air conditioner blower evaporator Parts

Here are the diagrams and repair parts for Kenmore 86781561 air conditioner blower evaporator, as well as links to manuals and error code tables, if available.

Kenmore 86781561 air conditioner blower evaporator
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 86781561 Air Conditioner Blower Evaporator

  • 5 Mfd 440/37 for Kenmore 86781561 - Part TRCF5

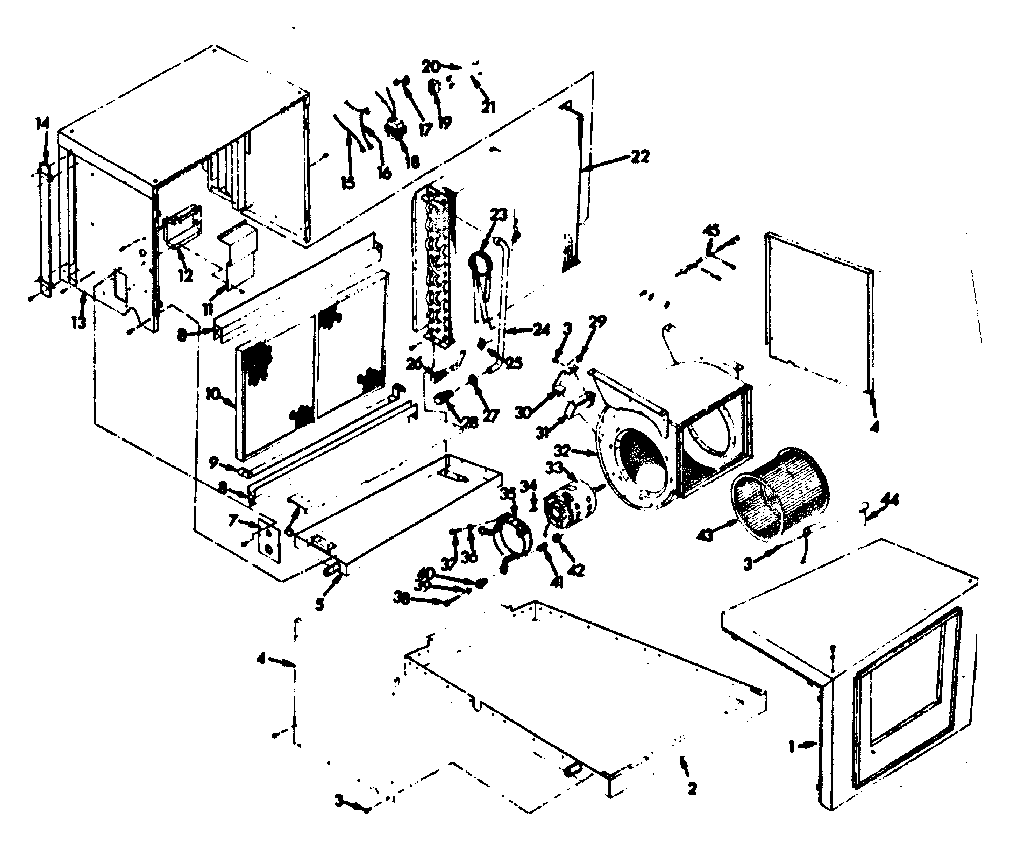

    Unit parts diagram

    Capacitor

    Part #78666

    Replaced by #TRCF5

    Info Icon
    Manufacturer substitution
    This part replaces 78666. Substitute parts can look different from the original.
    In Stock
    $29.15
    Minus Item
    Qty
    Plus Item
  • Transformer for Kenmore 86781561 - Part 88467

    Unit parts diagram

    Transformer

    Part #88467

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Run Capacitor for Kenmore 86781561 - Part 12907

    Unit parts diagram

    Capacitor

    Part #92646

    Replaced by #12907

    Info Icon
    Manufacturer substitution
    This part replaces 92646. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.76
    17% OFF Phone Price : $5.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Mount Kit for Kenmore 86781561 - Part 1050254

    Unit parts diagram

    Support

    Part #86023

    Replaced by #1050254

    Info Icon
    Manufacturer substitution
    This part replaces 86023. Substitute parts can look different from the original.
    In Stock
    $224.02
    Minus Item
    Qty
    Plus Item
  • Air Filter for Kenmore 86781561 - Part 64502

    Unit parts diagram

    Air Filter

    Part #64502

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Filter for Kenmore 86781561 - Part 64758

    Unit parts diagram

    Air Filter

    Part #64758

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for Kenmore 86781561 - Part 522539

    Unit parts diagram

    Cutoff Panel

    Part #88065

    Replaced by #522539

    Info Icon
    Manufacturer substitution
    This part replaces 88065. Substitute parts can look different from the original.
    In Stock
    $255.38
    Minus Item
    Qty
    Plus Item
  • Cut-off for Kenmore 86781561 - Part 67584

    Unit parts diagram

    Cut-off

    Part #67584

    Replaced by #67584

    Info Icon
    Manufacturer substitution
    This part replaces 67584. Substitute parts can look different from the original.
    In Stock
    $180.90
    Minus Item
    Qty
    Plus Item
  • Flat Washer for Kenmore 86781561 - Part STD551025

    Unit parts diagram

    Washer

    Part #446188

    Replaced by #STD551025

    Info Icon
    Manufacturer substitution
    This part replaces 446188. Substitute parts can look different from the original.
    In Stock
    $36.61
    Minus Item
    Qty
    Plus Item
  • Air Filter for Kenmore 86781561 - Part 64501

    Unit parts diagram

    Air Filter

    Part #64501

    The manufacturer no longer makes this part, and there's no substitute part
