Model #536816901 Official Craftsman 18" power reel lawn mower

Here are the diagrams and repair parts for Craftsman 536816901 18" power reel lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 108 parts

Snowblower Nut#87

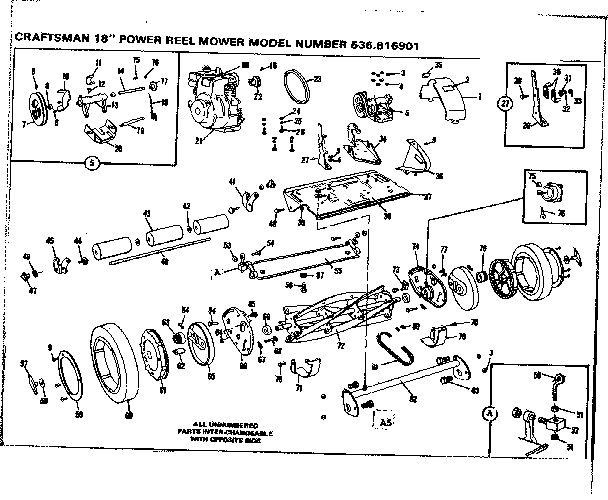

Reel assembly Diagram

Lock nut

Part #9424215
Replaced by #703251
?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
BEST SELLER
In Stock
$8.07 |
11% OFF
Phone Price: $9.07
Washer#31

Reel assembly Diagram

Washer

Part #120386

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut#3

Reel assembly Diagram

Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt#28

Reel assembly Diagram

Car bolt

Part #120518
Replaced by #703101
?
Manufacturer substitution
This part replaces 120518. Substitute parts can look different from the original.
This item is not returnable
In Stock
$6.89 |
13% OFF
Phone Price: $7.89
Lawn & Garden Equipment Washer#9

Handle assembly Diagram

Washer

Part #8728
Replaced by #783000MA
?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
In Stock
$5.67
Lock Nut#13

Handle assembly Diagram

Lock nut

Part #996907

The manufacturer no longer makes this part, and there's no substitute part

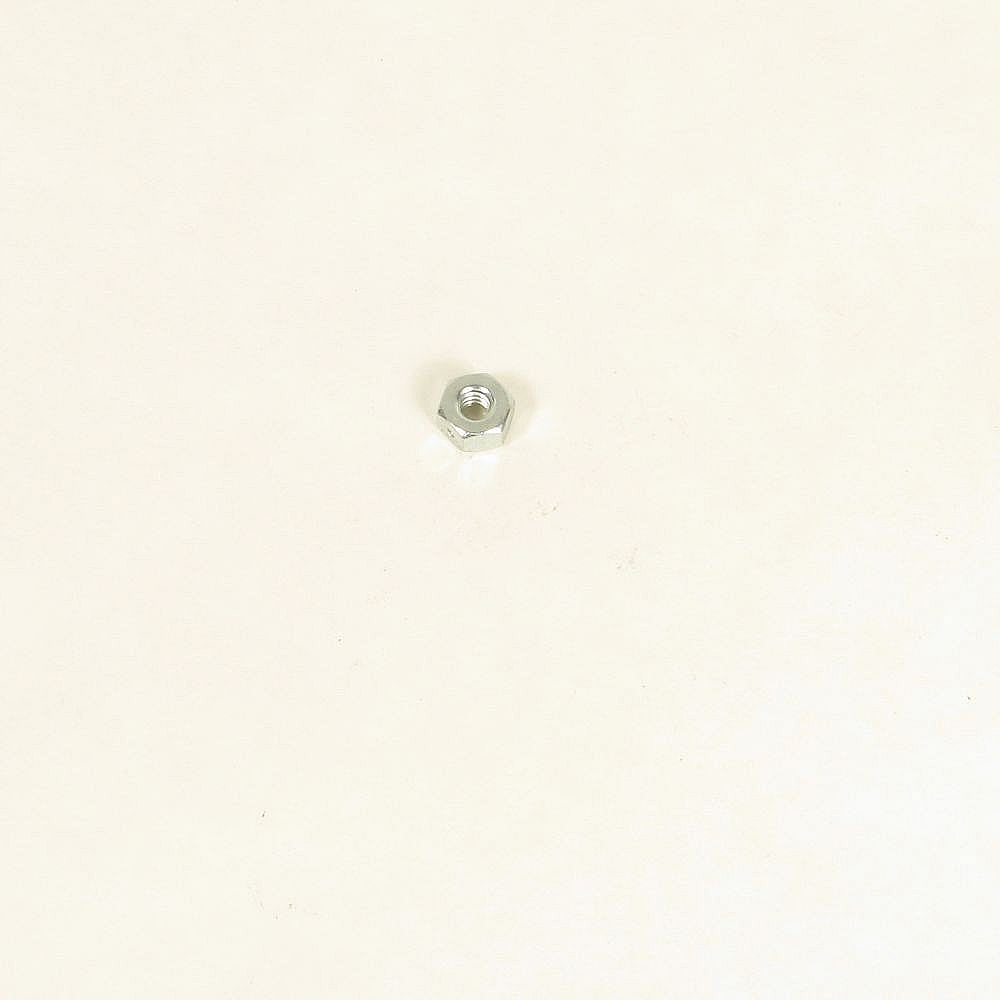

Lawn & Garden Equipment Lock Nut#4

Handle assembly Diagram

Lock nut

Part #997316
Replaced by #997316MA
?
Manufacturer substitution
This part replaces 997316. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.25
Split Lockwr#32

Reel assembly Diagram

Split lockwr

Part #120380

The manufacturer no longer makes this part, and there's no substitute part

Screw#68

Reel assembly Diagram

Screw

Part #46687

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer#4

Reel assembly Diagram

Washer

Part #446363
Replaced by #446363MA
?
Manufacturer substitution
This part replaces 446363. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.25
