Model # WSZ57L18DM07 Official Whirlpool freezer, upright or vertical

Here are the diagrams and repair parts for Official Whirlpool WSZ57L18DM07 freezer, upright or vertical, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Refrigerator Thermistor W10384183
#3

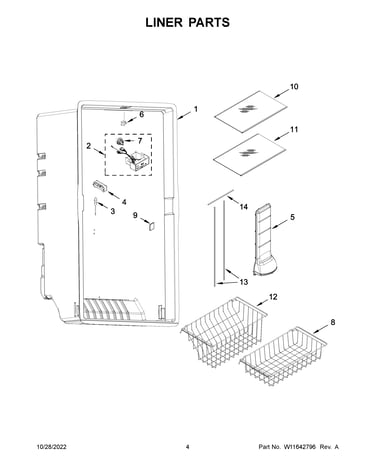

Liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Evaporator Fan Blade 2169142
#4

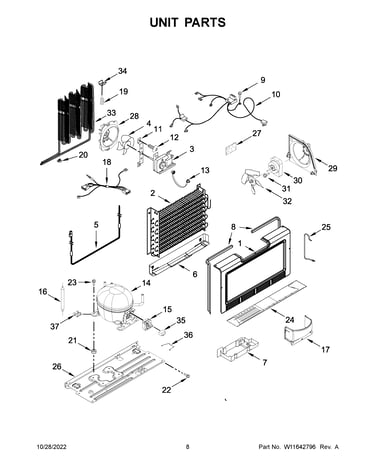

Unit parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$36.11 |
12% OFF Phone Price : $41.11
In Stock
Refrigerator Ice Maker Kit (replaces W11534202, Wpw10715708) W11510803
#NI

Optional parts (not included) diagram

Refrigerator ice maker kit (replaces w11534202, wpw10715708)

Part #W11510803

BEST SELLER
$108.60 |
8% OFF Phone Price : $118.60
In Stock
Refrigerator Touch-up Paint (white) 72017
#NI

Optional parts (not included) diagram

Refrigerator touch-up paint (white)

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930
#NI

Optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw W10460893
#9

Door parts diagram

Screw

Part #W10460893

Replaced by #WPW10661886

?
Manufacturer substitution
This part replaces W10460893. Substitute parts can look different from the original.
BEST SELLER
$9.21 |
10% OFF Phone Price : $10.21
In Stock
Drier Tube W10805035
#16

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
37% OFF MSRP : $39.00
In Stock
Screw 3-80675-105
#2

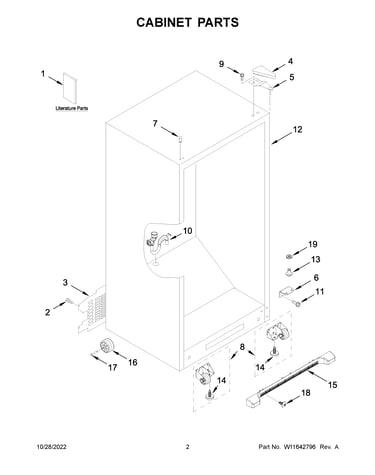

Cabinet parts diagram

Screw

Part #3-80675-105

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 3-80675-105. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cond Fan,mla W10909387
#30

Unit parts diagram

Cond fan,mla

Part #W10909387

Replaced by #W11127829

?
Manufacturer substitution
This part replaces W10909387. Substitute parts can look different from the original.
BEST SELLER
$108.20 |
8% OFF Phone Price : $118.20
In Stock
Brake Lower Foot W10141622
#14

Cabinet parts diagram

Brake lower foot

Part #W10141622

Replaced by #WPW10141622

?
Manufacturer substitution
This part replaces W10141622. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
