Model # 113234620 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 113234620 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Lock Washer, 5/16-in, 8-pack STD551131
#15

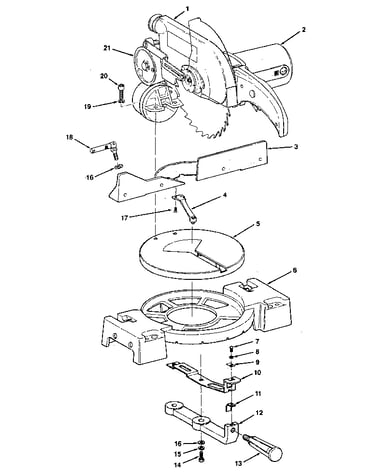

Figure 1 diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Miter Handle 816669
#13

Figure 1 diagram

Miter saw miter handle

Part #816669

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 816742
#32

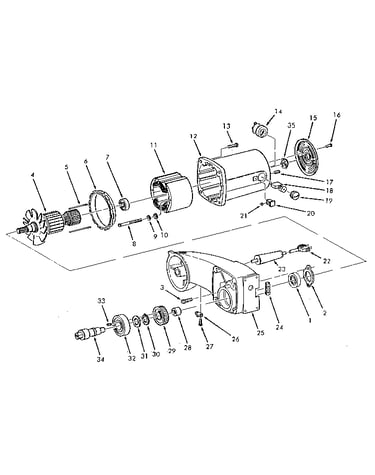

Motor and arm assembly 816689-1 diagram

Ball bearing

Part #816742

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Pivot Clamp Bolt 816863
#14

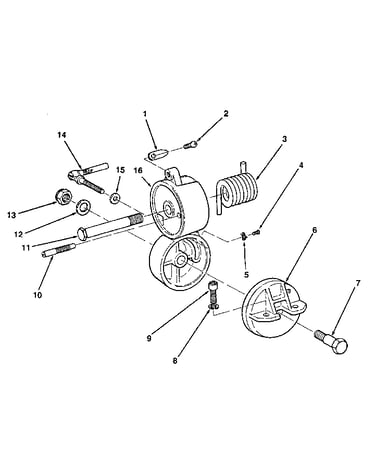

Figure 3-pivot assembly diagram

Miter saw pivot clamp bolt

Part #816863

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, M5-0.8 X 20 816755
Power tool screw, m5-0.8 x 20

Part #816755

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag Clamp 816812
#22

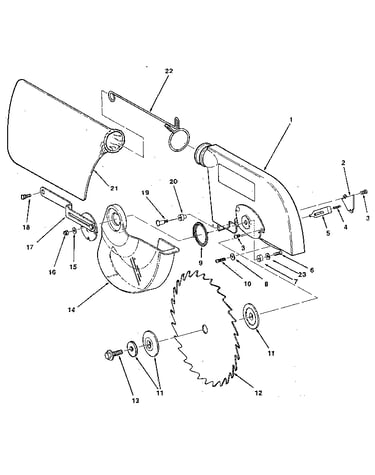

Figure 4. blade & blade guard asm. diagram

Miter saw dust bag clamp

Part #816812

The manufacturer no longer makes this part, and there's no substitute part

Spacer 816849-1
#7

Figure 4. blade & blade guard asm. diagram

Spacer

Part #816849-1

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Dust Bag 816811
#21

Figure 4. blade & blade guard asm. diagram

Miter saw dust bag

Part #816811

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Collar Set 507759
#11

Figure 4. blade & blade guard asm. diagram

Miter saw blade collar set

Part #507759

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 816723
Lock nut

Part #816723

The manufacturer no longer makes this part, and there's no substitute part
