Model # 130200 TO 130299 (1769-01 - 1769-01 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 130200-TO-130299-1769-01-1769-01 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Spark Plug 298809
#5

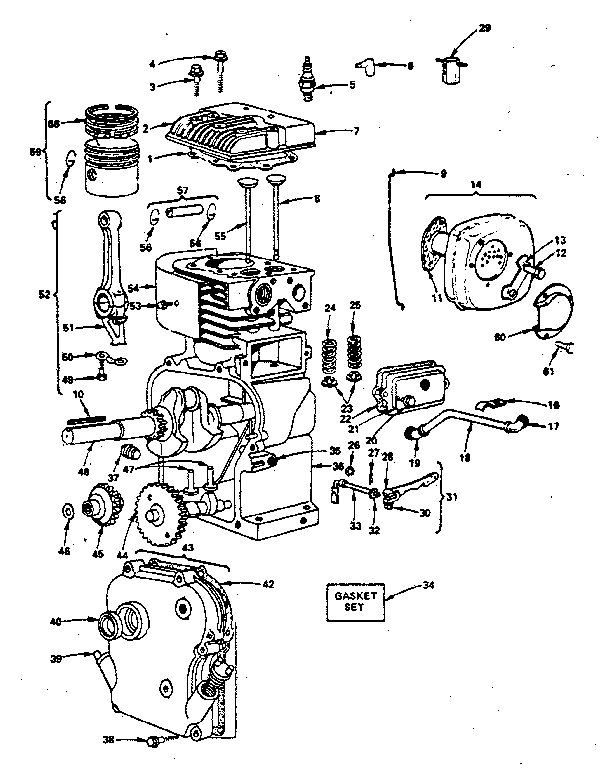

Cylinder & crankcase diagram

Spark plug

Part #298809

Replaced by #796112S

?
Manufacturer substitution
This part replaces 298809. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.37 |
23% OFF Phone Price : $4.37
In Stock
Key 222698
#3

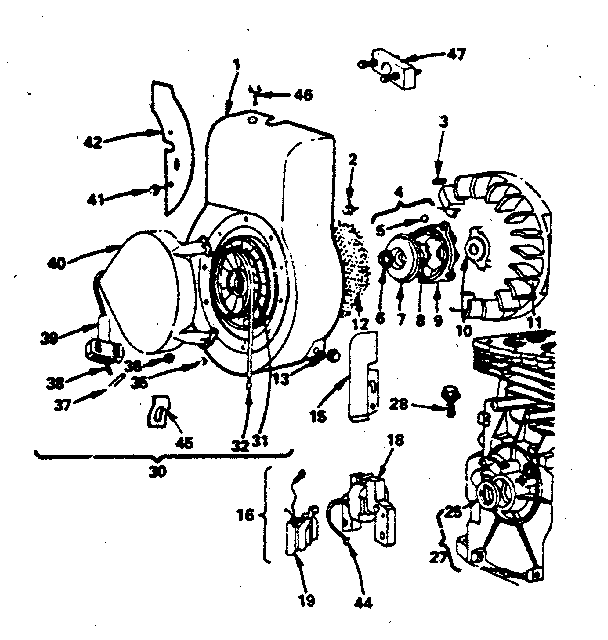

Starter diagram

Key

Part #222698

Replaced by #222698S

?
Manufacturer substitution
This part replaces 222698. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Elbow Spacer Plug 66538
#6

Cylinder & crankcase diagram

Elbow spacer plug

Part #66538

Replaced by #66538S

?
Manufacturer substitution
This part replaces 66538. Substitute parts can look different from the original.
This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Terminal Cable 221798
#44

Starter diagram

Terminal cable

Part #221798

Replaced by #493880S

?
Manufacturer substitution
This part replaces 221798. Substitute parts can look different from the original.
This item is not returnable
$4.75 |
17% OFF Phone Price : $5.75
In Stock
Breather Grommet 67838
#17

Cylinder & crankcase diagram

Breather grommet

Part #67838

Replaced by #692189

?
Manufacturer substitution
This part replaces 67838. Substitute parts can look different from the original.
This item is not returnable
$7.59 |
12% OFF Phone Price : $8.59
In Stock
Oil Seal 299819
#25

Starter diagram

Oil seal

Part #299819

Replaced by #299819S

?
Manufacturer substitution
This part replaces 299819. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Governor Spring 260695
#43

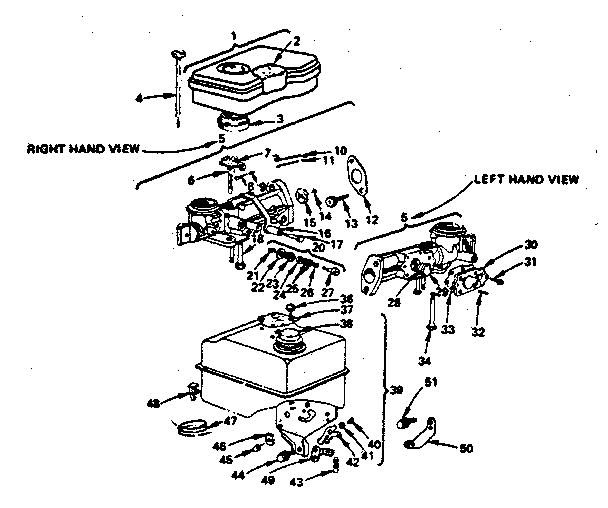

Carburetor diagram

Governor spring

Part #260695

Replaced by #796260

?
Manufacturer substitution
This part replaces 260695. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Oil Filter Plug 66768
#39

Cylinder & crankcase diagram

Oil filter plug

Part #66768

Replaced by #281658S

?
Manufacturer substitution
This part replaces 66768. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Screw 93705
Screw

Part #93705

Replaced by #690661

?
Manufacturer substitution
This part replaces 93705. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm 270026
#33

Carburetor diagram

Lawn & garden equipment engine carburetor diaphragm

Part #270026

This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
