GE
Countertop Microwave

Model # JEM616001 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM616001 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

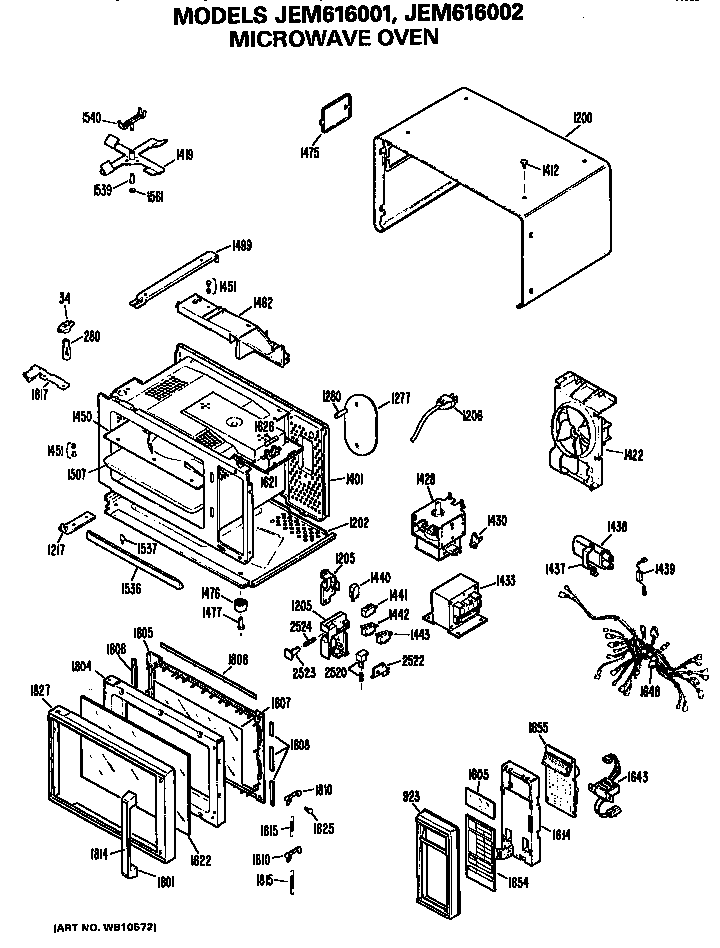

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Monitor Switch WB24X5228

#1445

All parts diagram

Monitor switch

Part #WB24X5228

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X5228. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Diode WB27X350

#1439

All parts diagram

Diode

Part #WB27X350

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X350. Substitute parts can look different from the original.
BEST SELLER
$84.28 |
6% OFF Phone Price : $89.28
In Stock
Cookbook Jem 49-4753

#9999

All parts diagram

Cookbook jem

Part #49-4753

Replaced by #49-4859

?
Manufacturer substitution
This part replaces 49-4753. Substitute parts can look different from the original.
$26.99
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

77622-201-01 WB3X679

#1668

All parts diagram

77622-201-01

Part #WB3X679

The manufacturer no longer makes this part, and there's no substitute part

Ferrite WB2X4702

#1808

All parts diagram

Ferrite

Part #WB2X4702

The manufacturer no longer makes this part, and there's no substitute part

Foot WB2X7374

#1476

All parts diagram

Foot

Part #WB2X7374

The manufacturer no longer makes this part, and there's no substitute part

Cover Cord Holder WB2X4683

#1227

All parts diagram

Cover cord holder

Part #WB2X4683

The manufacturer no longer makes this part, and there's no substitute part

Wdgrn Otr Cs WB56X1775

#1200

All parts diagram

Wdgrn otr cs

Part #WB56X1775

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness WB18X251

#1648

All parts diagram

Wire harness

Part #WB18X251

The manufacturer no longer makes this part, and there's no substitute part
