Kenmore
Room Air Conditioner

Model #25367050 Kenmore 115-v coldspot air conditioner

Here are the diagrams and repair parts for Kenmore 25367050 115-v coldspot air conditioner, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 66 parts

    Nut

    #13

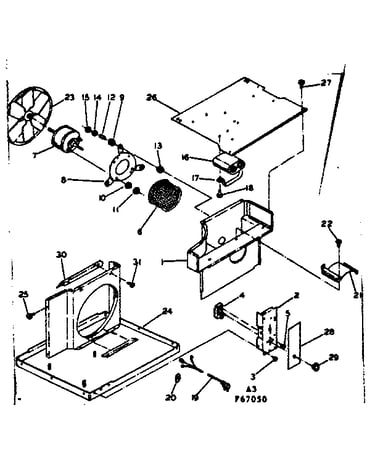

    Electrical system & air handling parts Diagram

    Nut

    Part #5304401788
    ?
    Manufacturer substitution
    This part replaces 100510. Substitute parts can look different from the original.
    This part replaces 100510
    $7.82

    In Stock

    Nut

    #11

    Electrical system & air handling parts Diagram

    Nut

    Part #100798

    The manufacturer no longer makes this part, and there's no substitute part

    Refrigerator Wire Harness Clamp

    #20

    Electrical system & air handling parts Diagram

    Refrigerator wire harness clamp

    Part #5303001199
    ?
    Manufacturer substitution
    This part replaces 88727. Substitute parts can look different from the original.
    This part replaces 88727
    $37.01

    In Stock

    Capacitor

    #16

    Electrical system & air handling parts Diagram

    Capacitor

    Part #474975

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #14

    Electrical system & air handling parts Diagram

    Washer

    Part #5300037109
    ?
    Manufacturer substitution
    This part replaces 100260. Substitute parts can look different from the original.
    This part replaces 100260
    This item is not returnable
    $2.29

    In Stock

    Refrigerator Screw

    #9

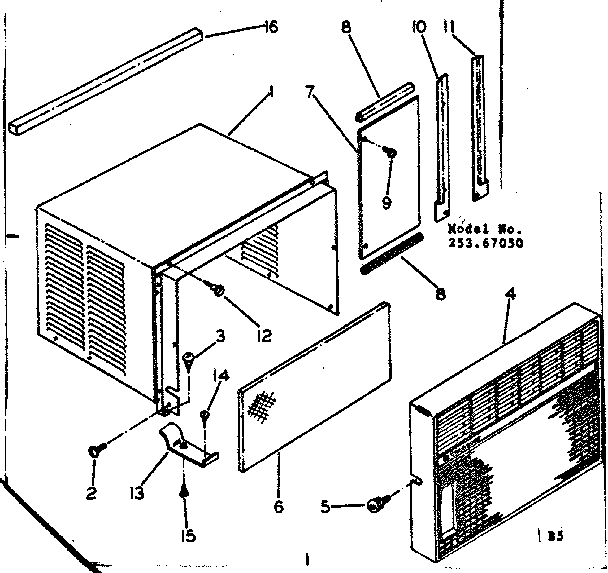

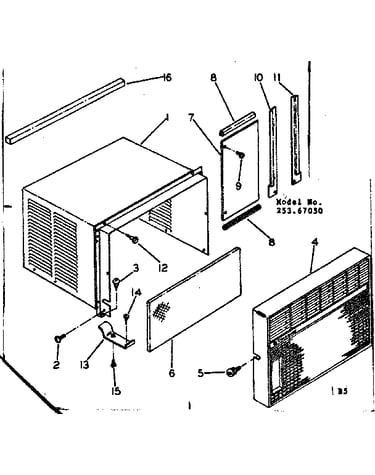

    Cabinet & front parts Diagram

    Refrigerator screw

    Part #08003581
    ?
    Manufacturer substitution
    This part replaces 100819. Substitute parts can look different from the original.
    This part replaces 100819
    This item is not returnable
    $2.16

    In Stock

    Refrigerator Compressor Grommet

    #10

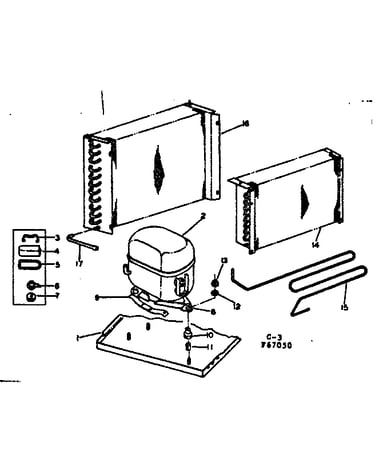

    Unit parts Diagram

    Refrigerator compressor grommet

    Part #218513300
    ?
    Manufacturer substitution
    This part replaces 126340. Substitute parts can look different from the original.
    This part replaces 126340
    $18.55 |
    36% OFF MSRP:$29.00

    In Stock

    (NOT REQUIRED) SPRING, OVERLOAD

    #1

    Unit parts Diagram

    (not required) spring, overload

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

    STARTING CAPACITOR TO CORRECT STRTNG DIFFICULTY ONLY JRE4-0075-PAA-206

    #16A

    Electrical system & air handling parts Diagram

    Starting capacitor to correct strtng difficulty only jre4-0075-paa-206

    Part #47225

    The manufacturer no longer makes this part, and there's no substitute part

    Relay

    #16B

    Electrical system & air handling parts Diagram

    Relay

    Part #479278

    The manufacturer no longer makes this part, and there's no substitute part
