Model # IMAC Official Apple computer

Here are the diagrams and repair parts for Official Apple IMAC computer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

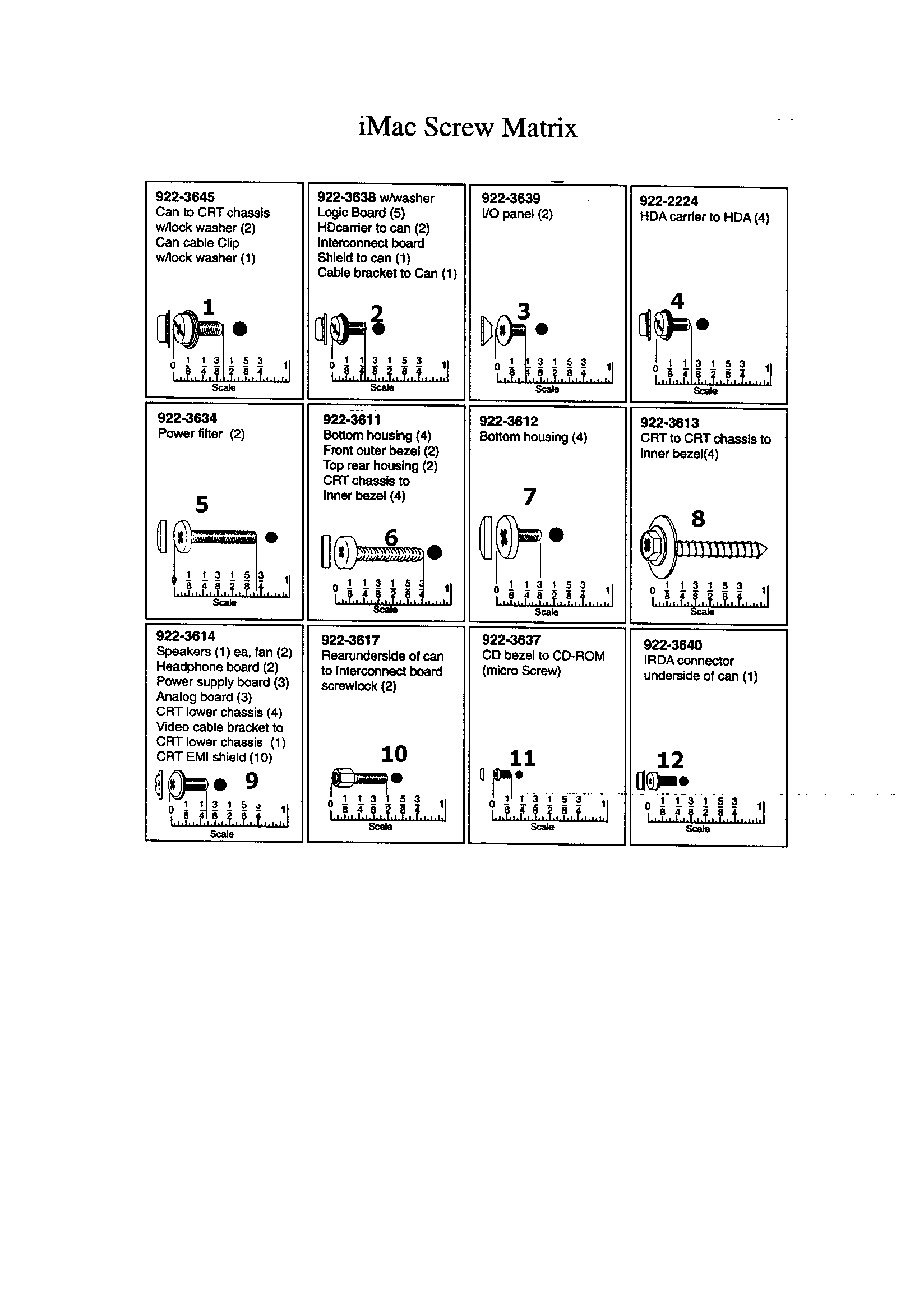

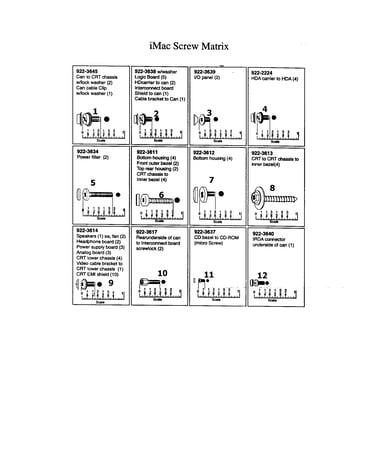

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Lower Front Panel, Blueberry 922-3740
#2A

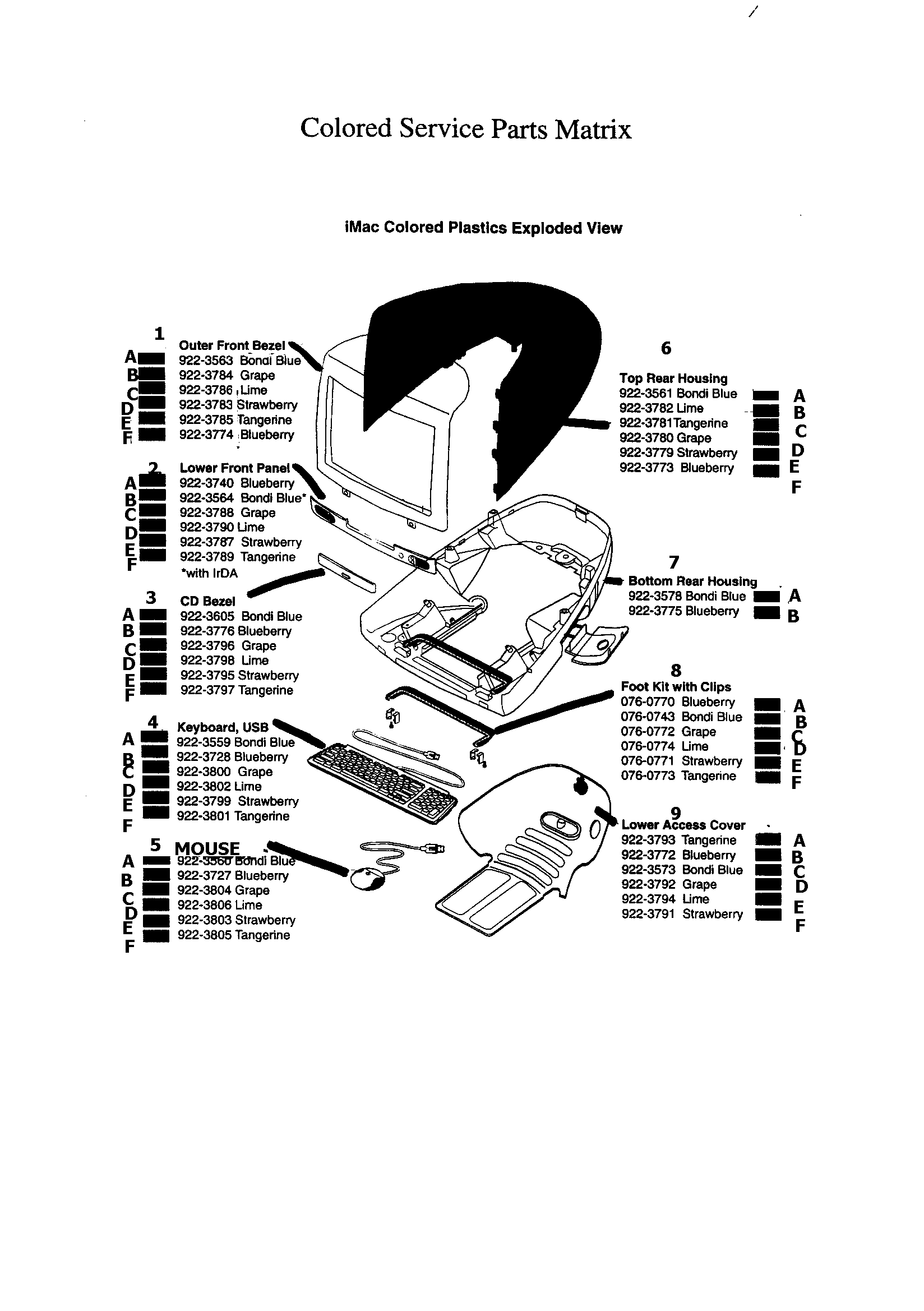

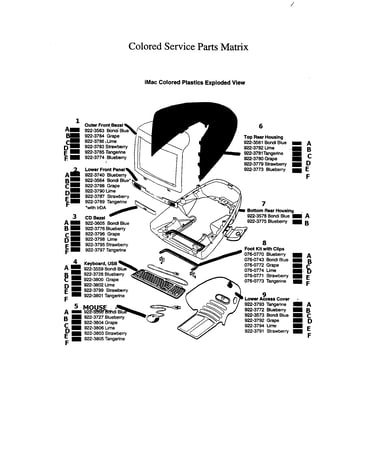

Colored service parts matrix diagram

Lower front panel, blueberry

Part #922-3740

The manufacturer no longer makes this part, and there's no substitute part

Lower Front Panel, Grape 922-3788
#2C

Colored service parts matrix diagram

Lower front panel, grape

Part #922-3788

The manufacturer no longer makes this part, and there's no substitute part

Sdram, So-dimm, 32mb 661-2079
#15

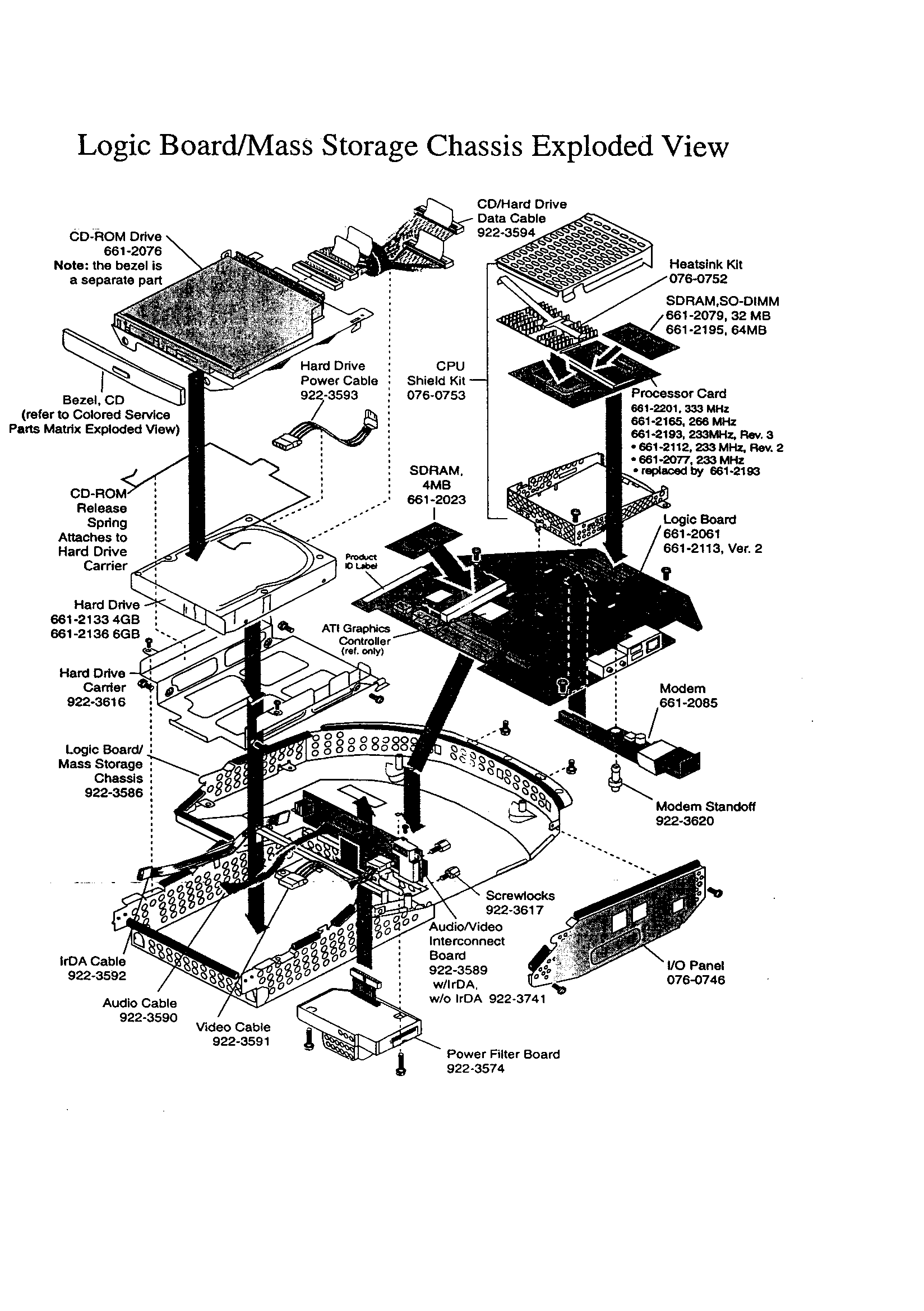

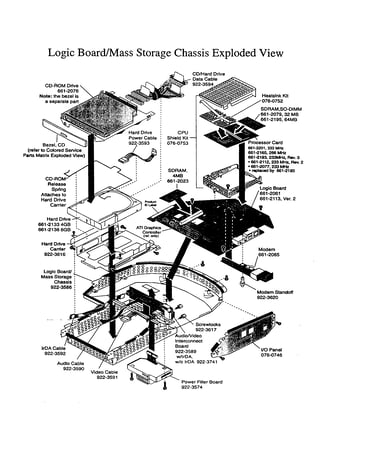

Logic board/mass storage chassis diagram

Sdram, so-dimm, 32mb

Part #661-2079

The manufacturer no longer makes this part, and there's no substitute part

Lower Access Cover, Grape 922-3792
#9D

Colored service parts matrix diagram

Lower access cover, grape

Part #922-3792

The manufacturer no longer makes this part, and there's no substitute part

Cd Bezel, Grape 922-3796
#3C

Colored service parts matrix diagram

Cd bezel, grape

Part #922-3796

The manufacturer no longer makes this part, and there's no substitute part

Audio Cable, Rev 2 922-3836
#19A

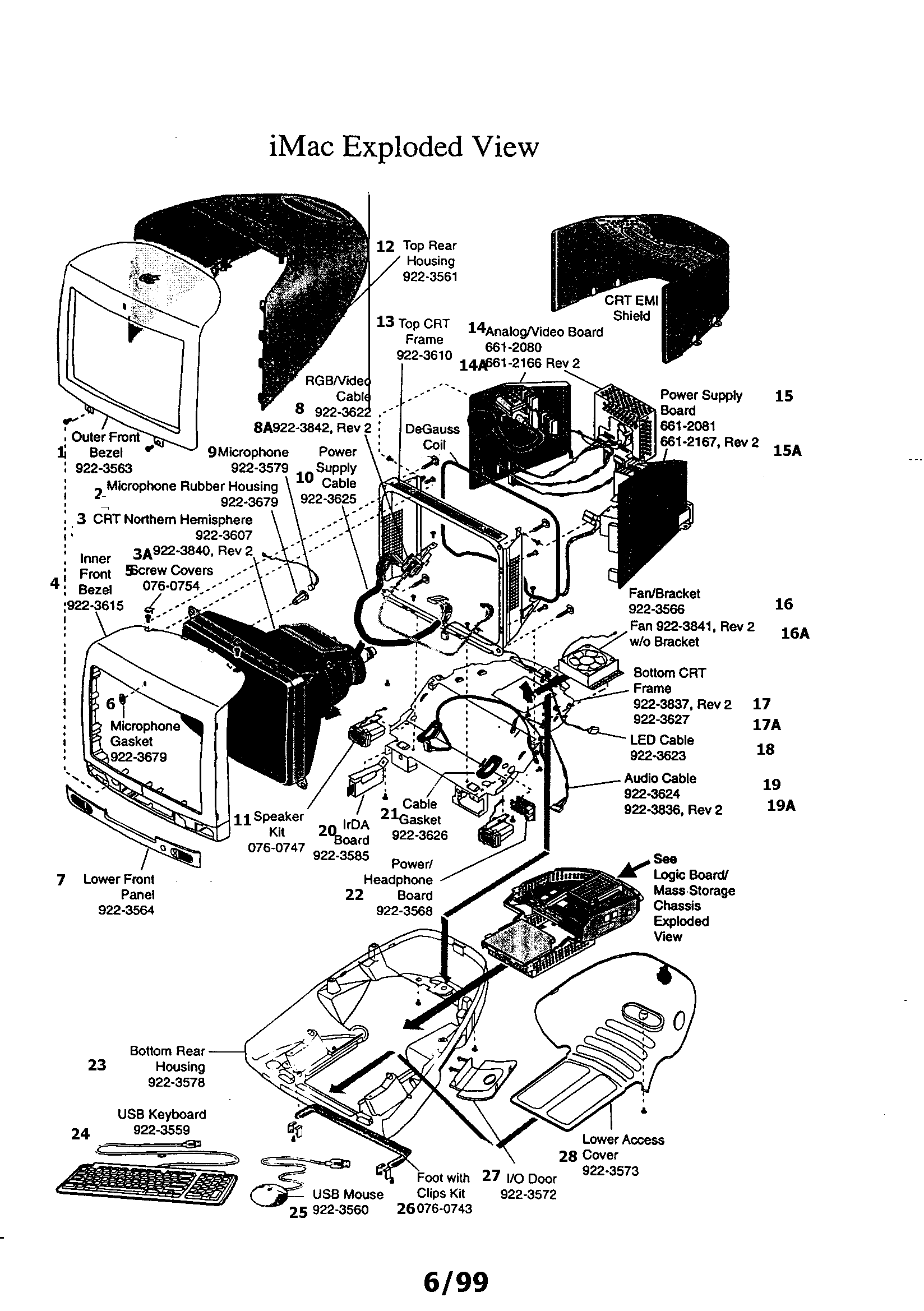

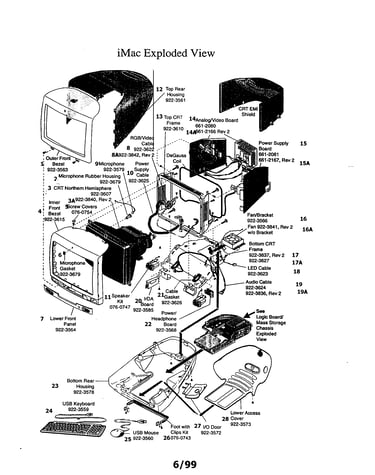

Imac exploded view diagram

Audio cable, rev 2

Part #922-3836

The manufacturer no longer makes this part, and there's no substitute part

Rgb/video Cable 922-3622
#8

Imac exploded view diagram

Rgb/video cable

Part #922-3622

The manufacturer no longer makes this part, and there's no substitute part

Led Cable 922-3623
#18

Imac exploded view diagram

Led cable

Part #922-3623

The manufacturer no longer makes this part, and there's no substitute part

Outer Front Bezel, Tangerine 922-3785
#1E

Colored service parts matrix diagram

Outer front bezel, tangerine

Part #922-3785

The manufacturer no longer makes this part, and there's no substitute part

Audio/video Interconnect Board W/irda 922-3589
#12

Logic board/mass storage chassis diagram

Audio/video interconnect board w/irda

Part #922-3589

The manufacturer no longer makes this part, and there's no substitute part
