Model # 415162100 Official Kenmore gas grill

Here are the diagrams and repair parts for Official Kenmore 415162100 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Burner 4505074
#10

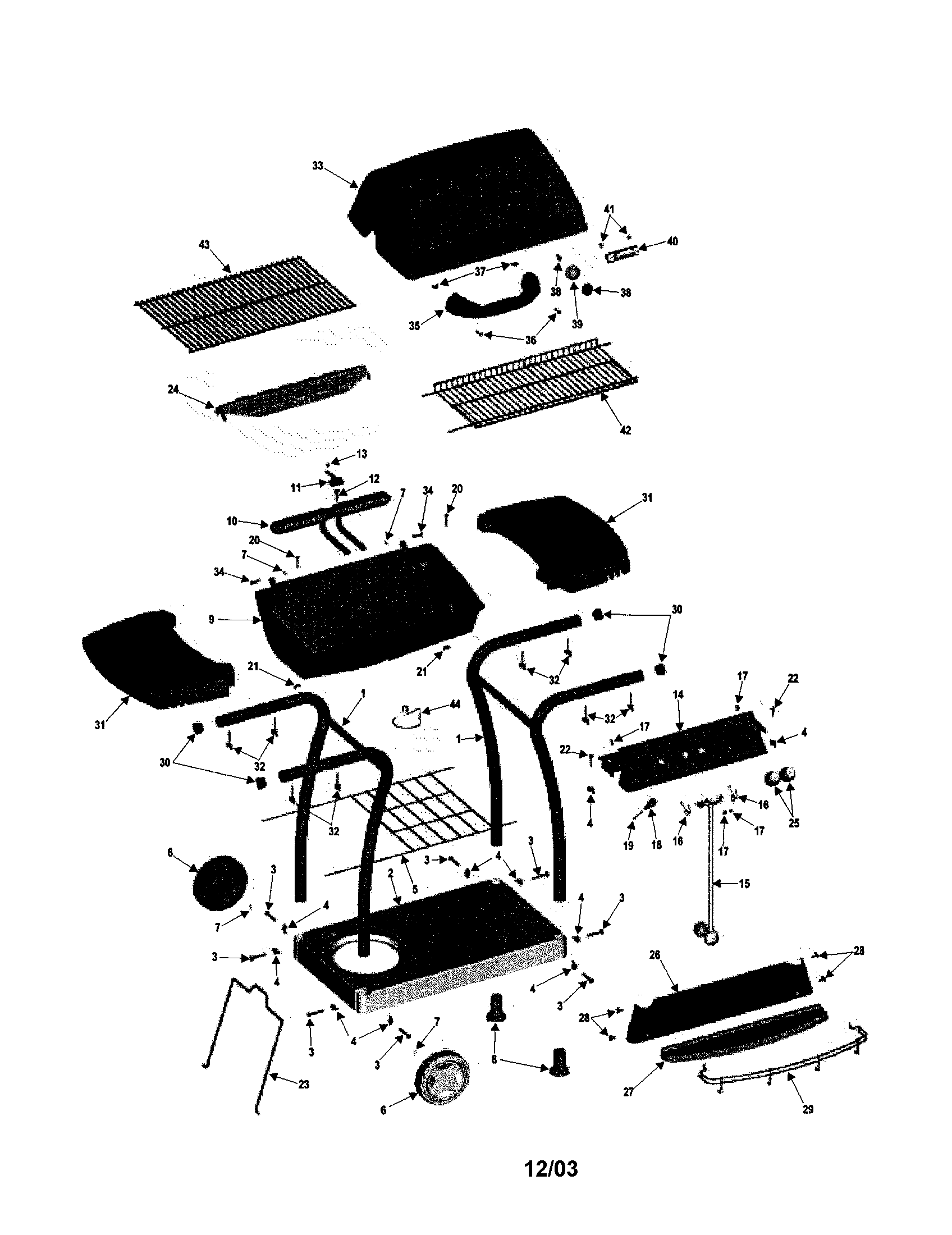

Gas grill diagram

Burner

Part #4505074

Replaced by #4505084

?
Manufacturer substitution
This part replaces 4505074. Substitute parts can look different from the original.
BEST SELLER
$24.62
17% OFF Phone Price : $29.62
In Stock
Gas Grill Igniter 5156119
#12

Gas grill diagram

Gas grill igniter

Part #5156119

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter Wire 4153196
#19

Gas grill diagram

Gas grill igniter wire

Part #4153196

This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Gas Grill Igniter 4153713
#18

Gas grill diagram

Gas grill igniter

Part #4153713

This item is not returnable
$5.69
15% OFF Phone Price : $6.69
In Stock
Gas Grill Lid Hinge Pin 4156513
#34

Gas grill diagram

Gas grill lid hinge pin

Part #4156513

This item is not returnable
In Stock
Bezel 4157169
#39

Gas grill diagram

Bezel

Part #4157169

Replaced by #G404-0034-W1

?
Manufacturer substitution
This part replaces 4157169. Substitute parts can look different from the original.
This item is not returnable
In Stock
Gas Grill Wing Nut, 2-pack 4080063
#37

Gas grill diagram

Gas grill wing nut, 2-pack

Part #4080063

This item is not returnable
In Stock
Gas Grill Screw 4080043
#17

Gas grill diagram

Gas grill screw

Part #4080043

This item is not returnable
$2.89
26% OFF Phone Price : $3.89
In Stock
Gas Grill Gas Collector Box 4500278
#11

Gas grill diagram

Gas grill gas collector box

Part #4500278

This item is not returnable
$2.89
26% OFF Phone Price : $3.89
In Stock
Clip 5156607
#44

Gas grill diagram

Clip

Part #5156607

Replaced by #80011874

?
Manufacturer substitution
This part replaces 5156607. Substitute parts can look different from the original.
This item is not returnable
In Stock
