Craftsman
Angle Grinder

Model # 17211501 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 17211501 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

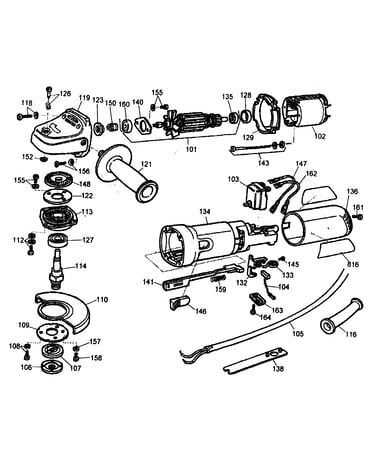

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |

Bearing 42975100
#160

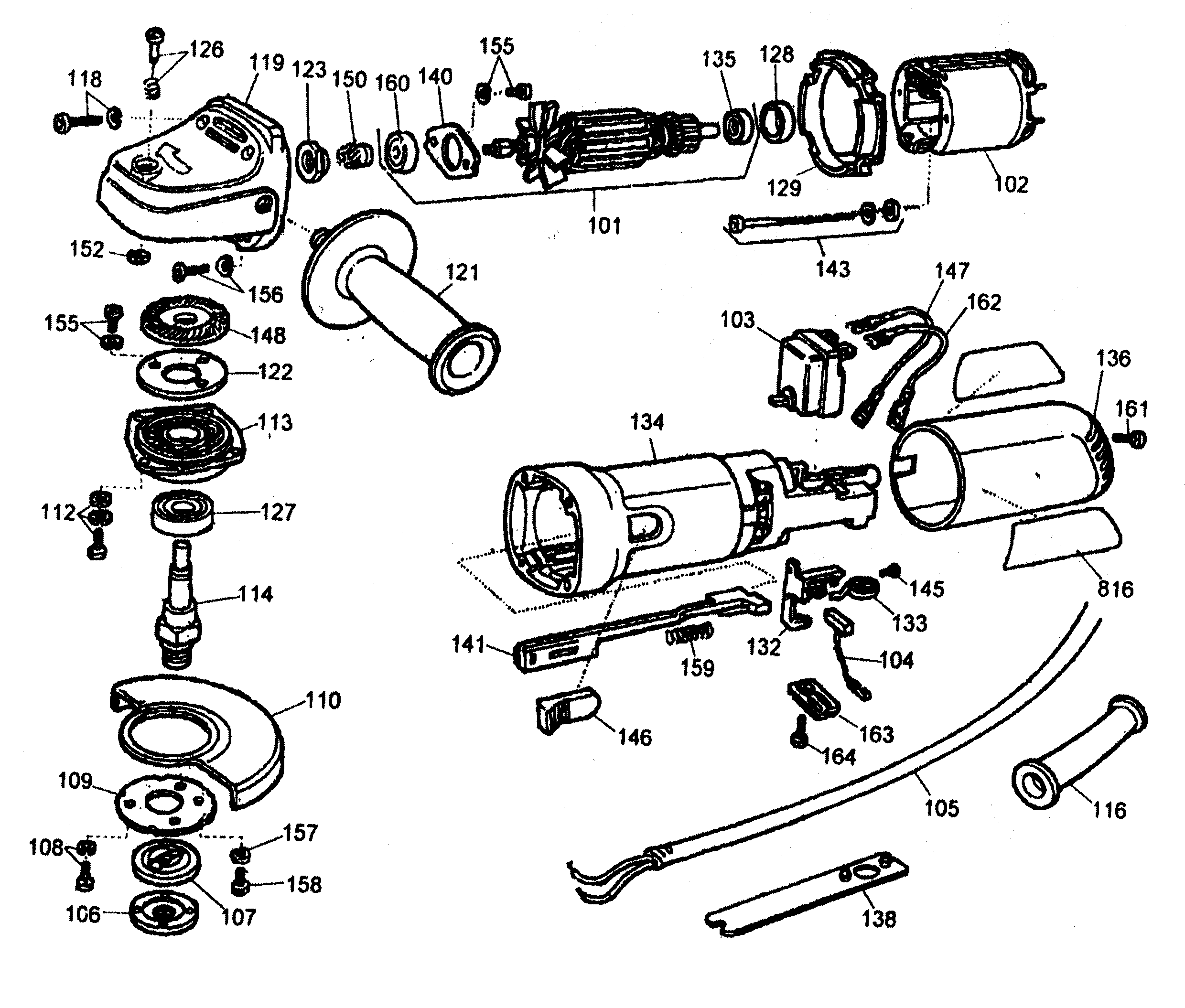

Grinder diagram

Bearing

Part #42975100

The manufacturer no longer makes this part, and there's no substitute part

Spring 42978100
#133

Grinder diagram

Spring

Part #42978100

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 42974600
#128

Grinder diagram

Sleeve

Part #42974600

The manufacturer no longer makes this part, and there's no substitute part

Screw 42978400
#161

Grinder diagram

Screw

Part #42978400

The manufacturer no longer makes this part, and there's no substitute part

Flange 42978900
#140

Grinder diagram

Flange

Part #42978900

The manufacturer no longer makes this part, and there's no substitute part

Screw 42979500
#164

Grinder diagram

Screw

Part #42979500

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Cutting Wheel Flange, Inner 42977000
#107

Grinder diagram

Angle grinder cutting wheel flange, inner

Part #42977000

The manufacturer no longer makes this part, and there's no substitute part

Spindle Lo 42975700
#126

Grinder diagram

Spindle lo

Part #42975700

The manufacturer no longer makes this part, and there's no substitute part

Holder 42978000
#132

Grinder diagram

Holder

Part #42978000

The manufacturer no longer makes this part, and there's no substitute part

Bearing 42974800
#135

Grinder diagram

Bearing

Part #42974800

The manufacturer no longer makes this part, and there's no substitute part
