Model # DCD790D2 TYPE 1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DCD790D2-TYPE-1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Grease N017298
#800

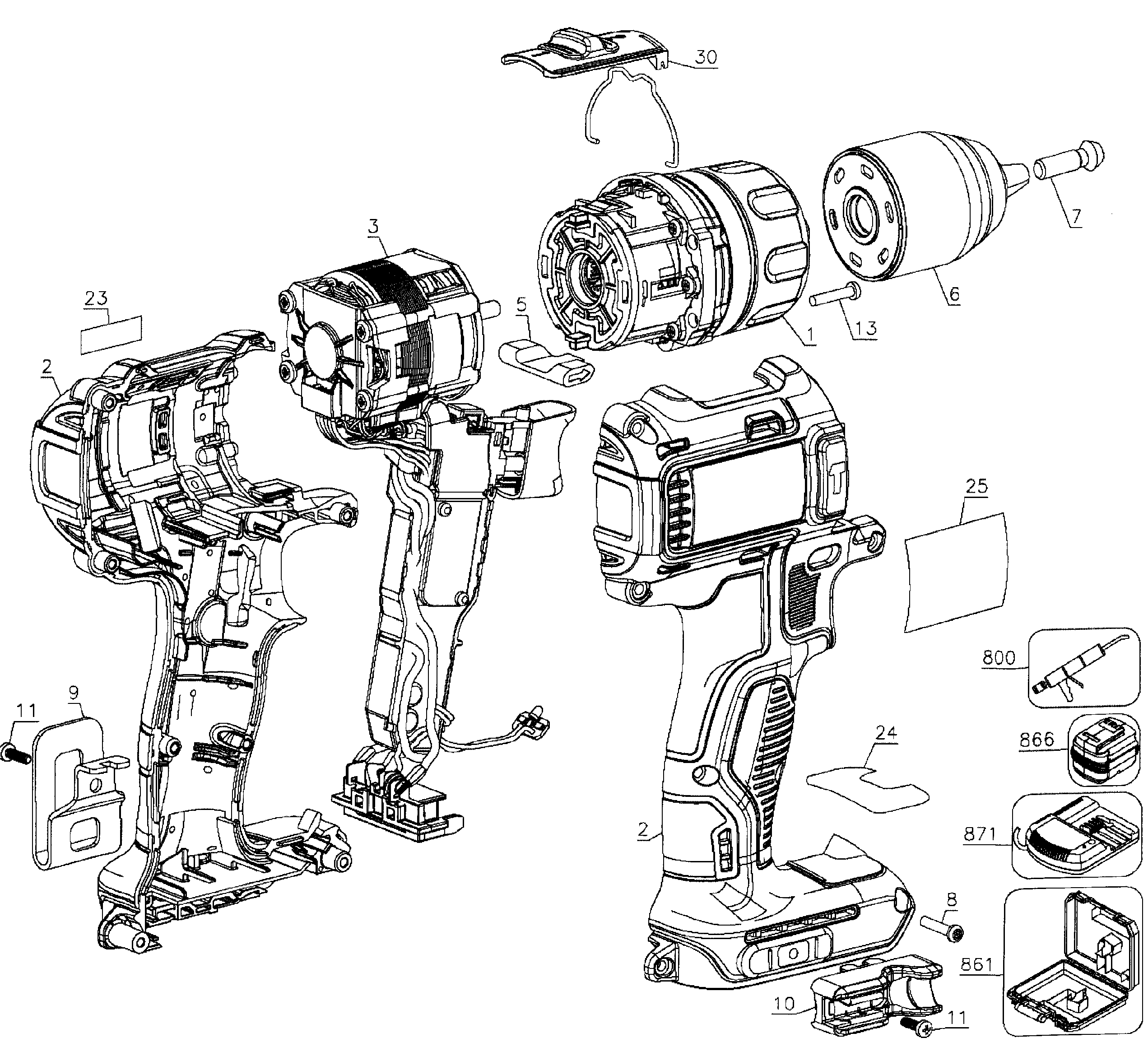

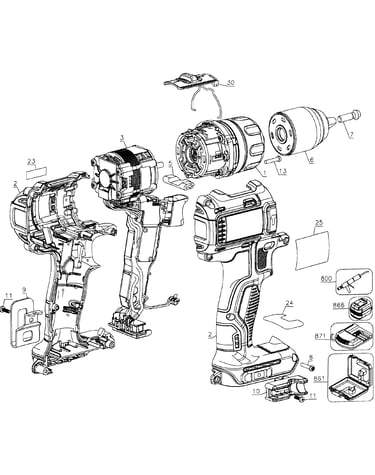

Drill assy diagram

Grease

Part #N017298

The manufacturer no longer makes this part, and there's no substitute part

Kitbox N197072
#861

Drill assy diagram

Kitbox

Part #N197072

The manufacturer no longer makes this part, and there's no substitute part

Label N238200
#24

Drill assy diagram

Label

Part #N238200

The manufacturer no longer makes this part, and there's no substitute part

Button N079835
#5

Drill assy diagram

Button

Part #N079835

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw N092854
#7

Drill assy diagram

Drill chuck screw

Part #N092854

The manufacturer no longer makes this part, and there's no substitute part

Screw N130792
#13

Drill assy diagram

Screw

Part #N130792

The manufacturer no longer makes this part, and there's no substitute part

Label N238000
#23

Drill assy diagram

Label

Part #N238000

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Keyless Chuck N196034
#6

Drill assy diagram

Drill/driver keyless chuck

Part #N196034

The manufacturer no longer makes this part, and there's no substitute part

Label N202920
#25

Drill assy diagram

Label

Part #N202920

The manufacturer no longer makes this part, and there's no substitute part

Screw N042665
#11

Drill assy diagram

Screw

Part #N042665

The manufacturer no longer makes this part, and there's no substitute part
