Model # AMV18DAM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AMV18DAM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Ame18 Uc/i 49-7238

#9999

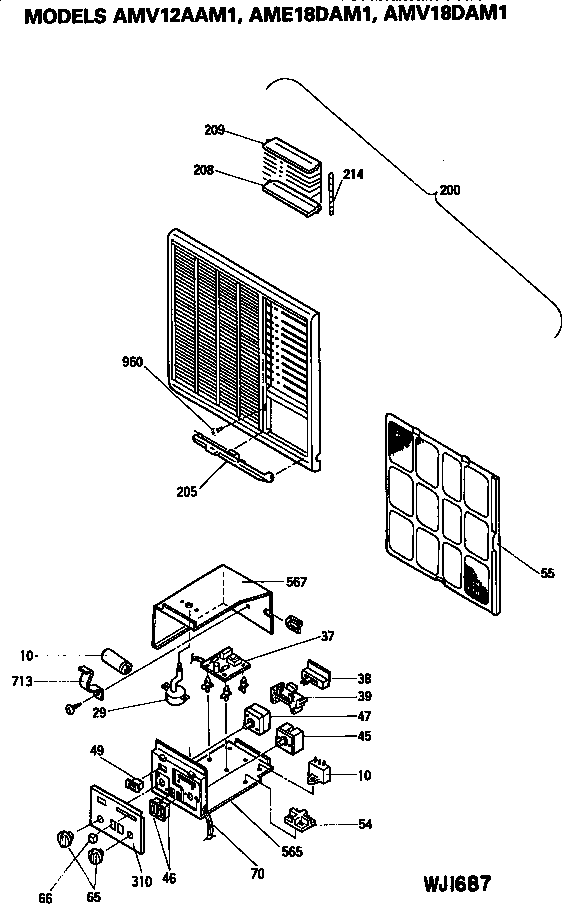

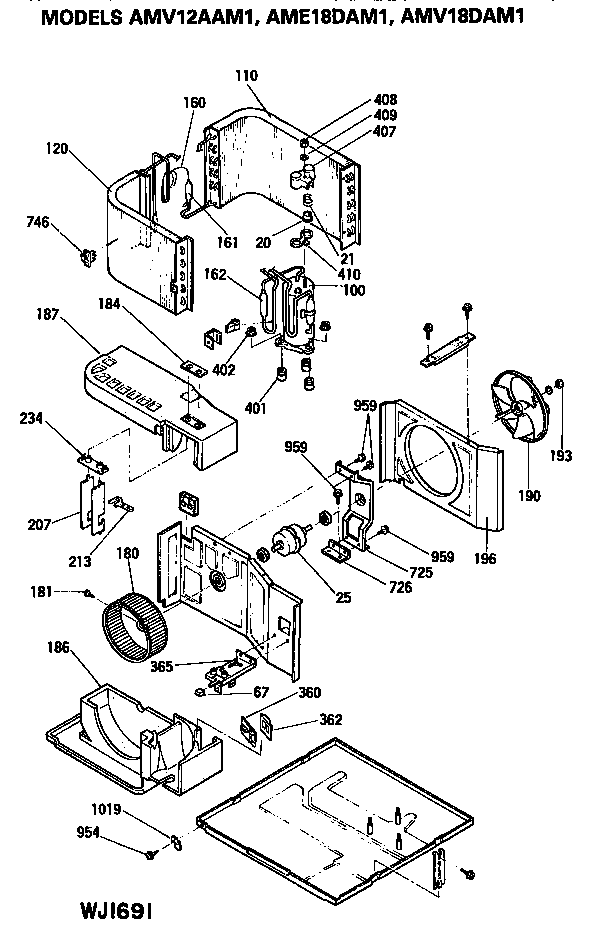

All parts diagram

Ame18 uc/i

Part #49-7238

Replaced by #49-7270

?
Manufacturer substitution
This part replaces 49-7238. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Uc & Install 49-7237

#9999

All parts diagram

Uc & install

Part #49-7237

Replaced by #49-7265

?
Manufacturer substitution
This part replaces 49-7237. Substitute parts can look different from the original.
$8.49
In Stock
Mini Package Rack 31-8645

#9999

All parts diagram

Mini package rack

Part #31-8645

Replaced by #31-8818

?
Manufacturer substitution
This part replaces 31-8645. Substitute parts can look different from the original.
$39.49
In Stock
Mini Package Rack 31-8644

#9999

All parts diagram

Mini package rack

Part #31-8644

Replaced by #31-8818

?
Manufacturer substitution
This part replaces 31-8644. Substitute parts can look different from the original.
$39.49
In Stock
Uc & Install 49-7236

#9999

All parts diagram

Uc & install

Part #49-7236

Replaced by #49-7263

?
Manufacturer substitution
This part replaces 49-7236. Substitute parts can look different from the original.
$8.49
In Stock
Filter WJ85X154

#55

All parts diagram

Filter

Part #WJ85X154

The manufacturer no longer makes this part, and there's no substitute part

Knob Vent WJ12X214

#67

All parts diagram

Knob vent

Part #WJ12X214

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel WJ74X150

#180

All parts diagram

Air conditioner blower wheel

Part #WJ74X150

The manufacturer no longer makes this part, and there's no substitute part

Outdoor Fan WJ73X160

#190

All parts diagram

Outdoor fan

Part #WJ73X160

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WJ7X959

#310

All parts diagram

Escutcheon

Part #WJ7X959

The manufacturer no longer makes this part, and there's no substitute part
