Model # ROS10 Official Bosch sander

Here are the diagrams and repair parts for Official Bosch ROS10 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Prot Cover 2609100633
#30

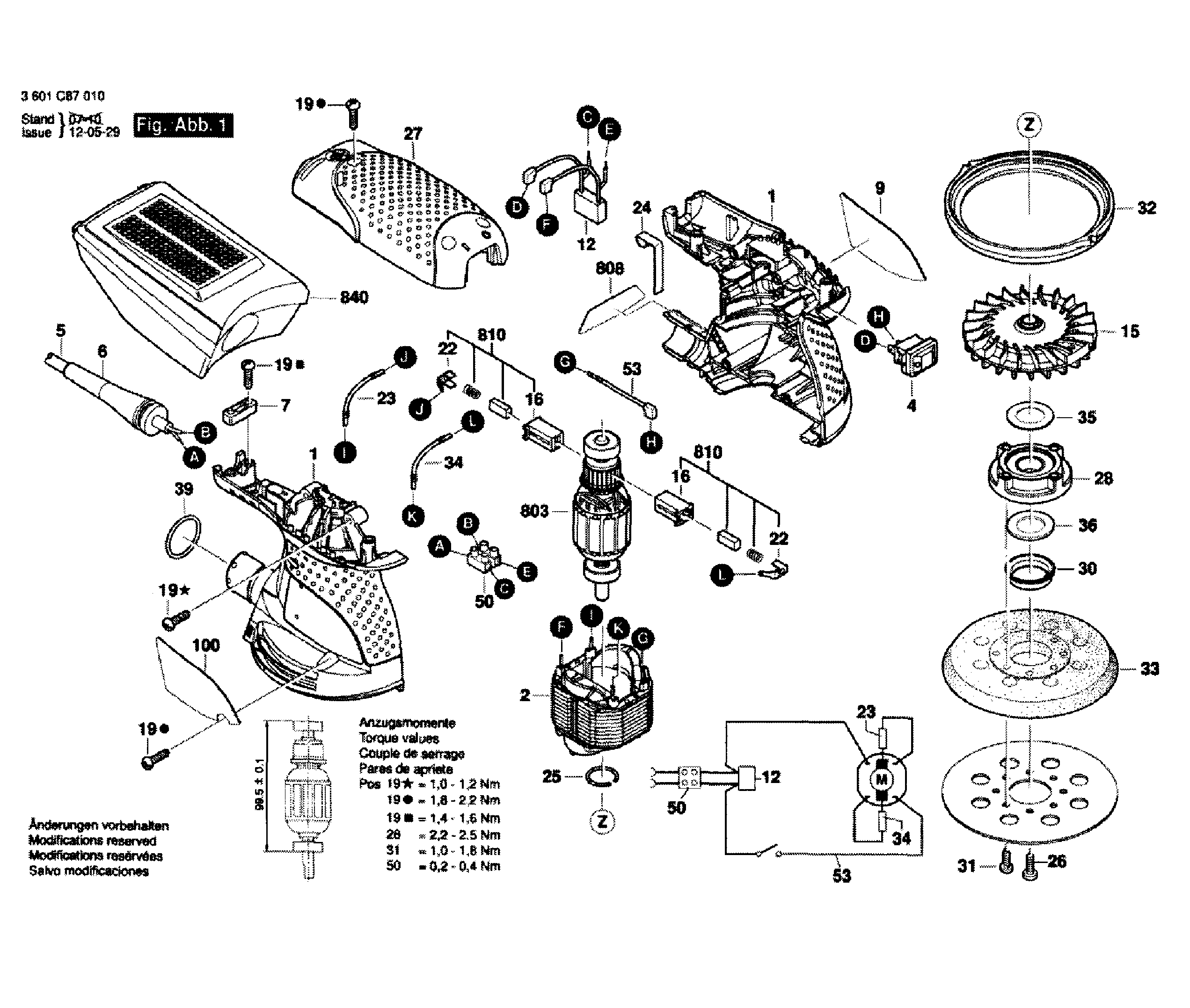

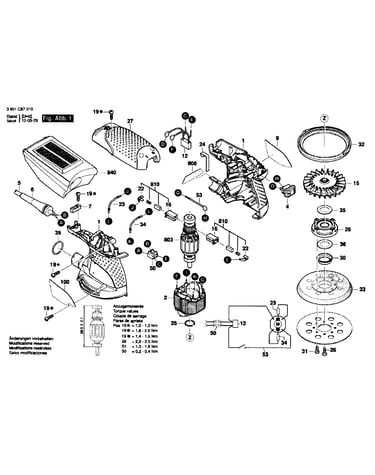

Sander diagram

Prot cover

Part #2609100633

The manufacturer no longer makes this part, and there's no substitute part

Dust Tank 2609199179
#840

Sander diagram

Dust tank

Part #2609199179

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 2610918116
#26

Sander diagram

Washer screw

Part #2610918116

The manufacturer no longer makes this part, and there's no substitute part

Cable 2609120284
#53

Sander diagram

Cable

Part #2609120284

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 2604460186
#5

Sander diagram

Power cord

Part #2604460186

The manufacturer no longer makes this part, and there's no substitute part

Screw 2610915161
#31

Sander diagram

Screw

Part #2610915161

The manufacturer no longer makes this part, and there's no substitute part

Carbon Brush Set 2609120199
#810

Sander diagram

Carbon brush set

Part #2609120199

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2609131735
#808

Sander diagram

Nameplate

Part #2609131735

The manufacturer no longer makes this part, and there's no substitute part

O-ring 1610210045
#39

Sander diagram

O-ring

Part #1610210045

The manufacturer no longer makes this part, and there's no substitute part

Housing 2609100614
#1

Sander diagram

Housing

Part #2609100614

The manufacturer no longer makes this part, and there's no substitute part
