Electric Walk-Behind Mower

Model # 18A-V17-800 Official MTD electric lawn mower

Here are the diagrams and repair parts for Official MTD 18A-V17-800 electric lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |
Knob Assembly 720-0241
#54

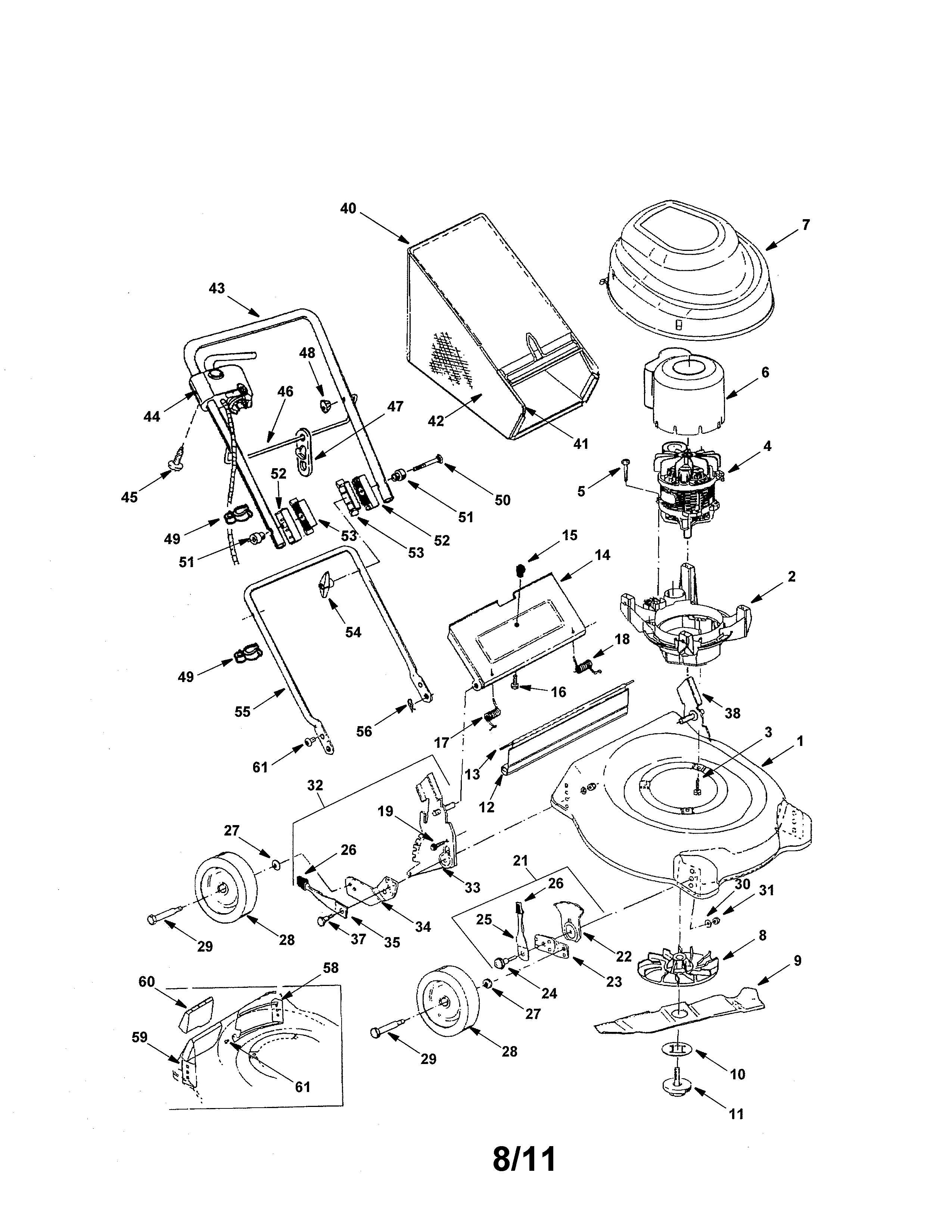

Electric mower diagram

Knob assembly

Part #720-0241

Replaced by #720-04072A

?
Manufacturer substitution
This part replaces 720-0241. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.77 |
48% OFF MSRP : $11.00
In Stock
Lawn & Garden Equipment Wing Nut (replaces 01002925, 920-0279) 720-0279
#48

Electric mower diagram

Lawn & garden equipment wing nut (replaces 01002925, 920-0279)

Part #720-0279

This item is not returnable
$6.87 |
13% OFF Phone Price : $7.87
In Stock
Lawn & Garden Equipment Hex Screw 710-0896
#19

Electric mower diagram

Lawn & garden equipment hex screw

Part #710-0896

This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Washer (replaces 936-0105) 736-0105
#27

Electric mower diagram

Lawn & garden equipment washer (replaces 936-0105)

Part #736-0105

This item is not returnable
$5.83
In Stock
Restraint-co 726-0368
#47

Electric mower diagram

Restraint-co

Part #726-0368

$7.98
In Stock
Lawn & Garden Equipment Screw 710-0192
#16

Electric mower diagram

Lawn & garden equipment screw

Part #710-0192

This item is not returnable
$5.69
In Stock
Spring 732-0417A
#35

Electric mower diagram

Spring

Part #732-0417A

$14.55
In Stock
Lawn & Garden Equipment Hex Nut 712-0798
#31

Electric mower diagram

Lawn & garden equipment hex nut

Part #712-0798

This item is not returnable
$5.69
In Stock
Lawn & Garden Equipment Screw 710-1017
#61

Electric mower diagram

Lawn & garden equipment screw

Part #710-1017

This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Lawn Mower Shoulder Screw (replaces 938-0102) 738-0102
#29

Electric mower diagram

Lawn mower shoulder screw (replaces 938-0102)

Part #738-0102

$13.57
In Stock
