Model # 143131122 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143131122 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |

Screw 28820
#90

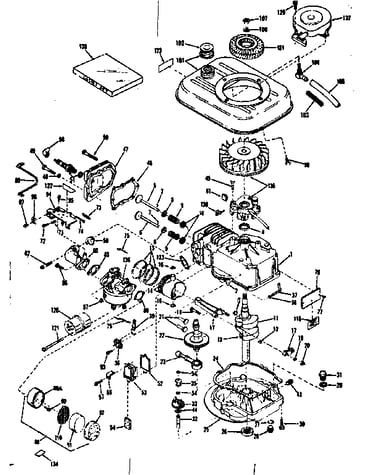

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#33

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Pump Assembly 29914
#23

Basic engine diagram

Pump assembly

Part #29914

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#56

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part

Intake Pipe 31384
#60

Basic engine diagram

Intake pipe

Part #31384

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

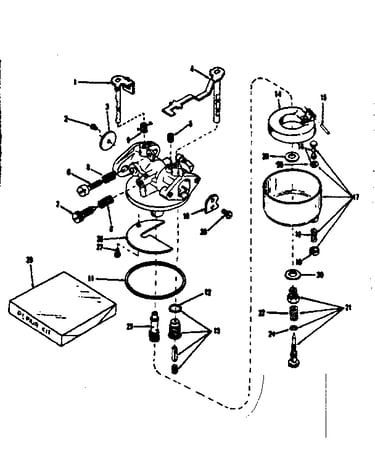

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#32

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Cap 30998
#102

Basic engine diagram

Cap

Part #30998

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#85

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Pin 26727
#2

Basic engine diagram

Pin

Part #26727

The manufacturer no longer makes this part, and there's no substitute part
