Dacor
Built-In Microwave

Model # DCM24R Official Dacor microwave

Here are the diagrams and repair parts for Official Dacor DCM24R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

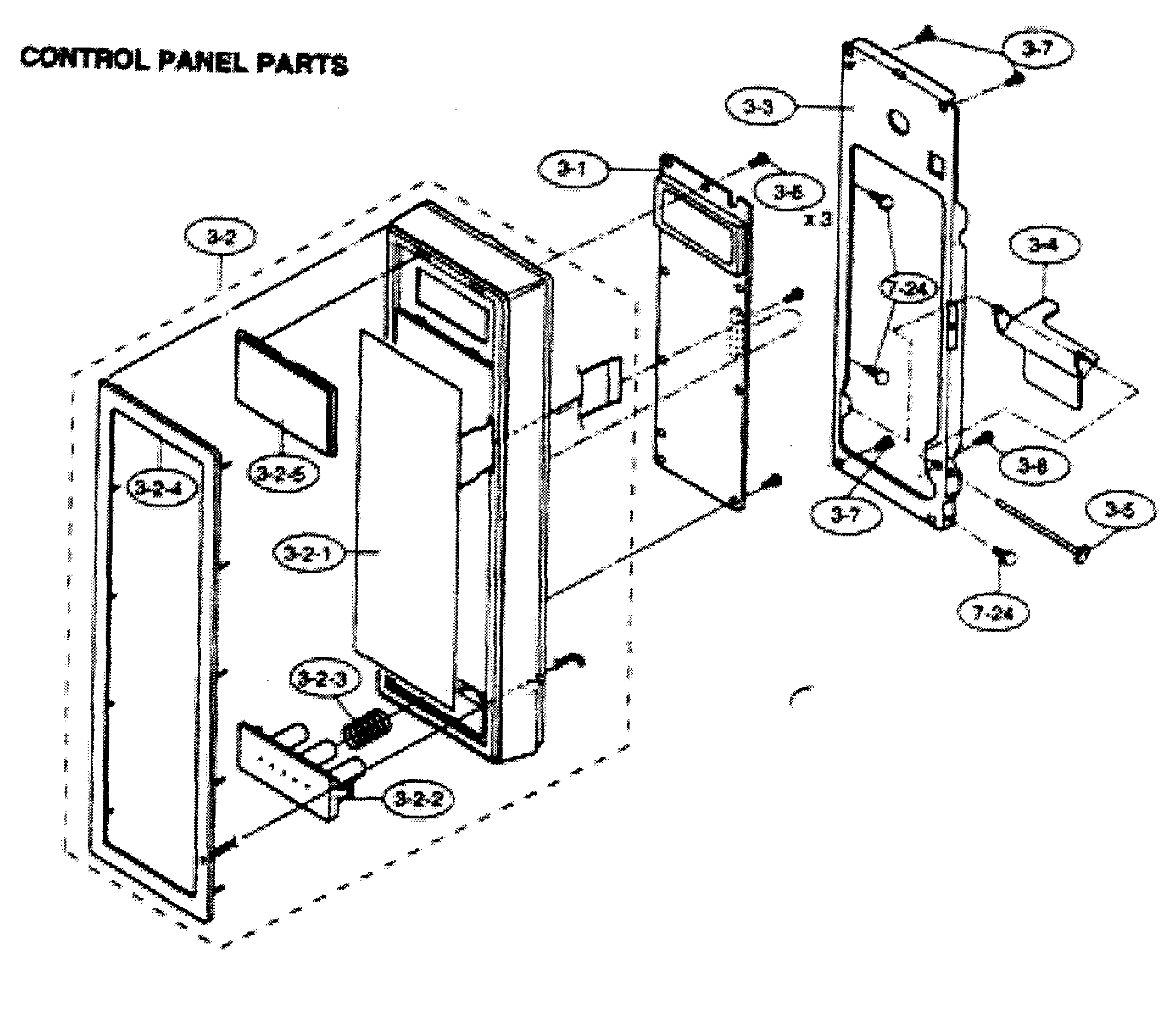

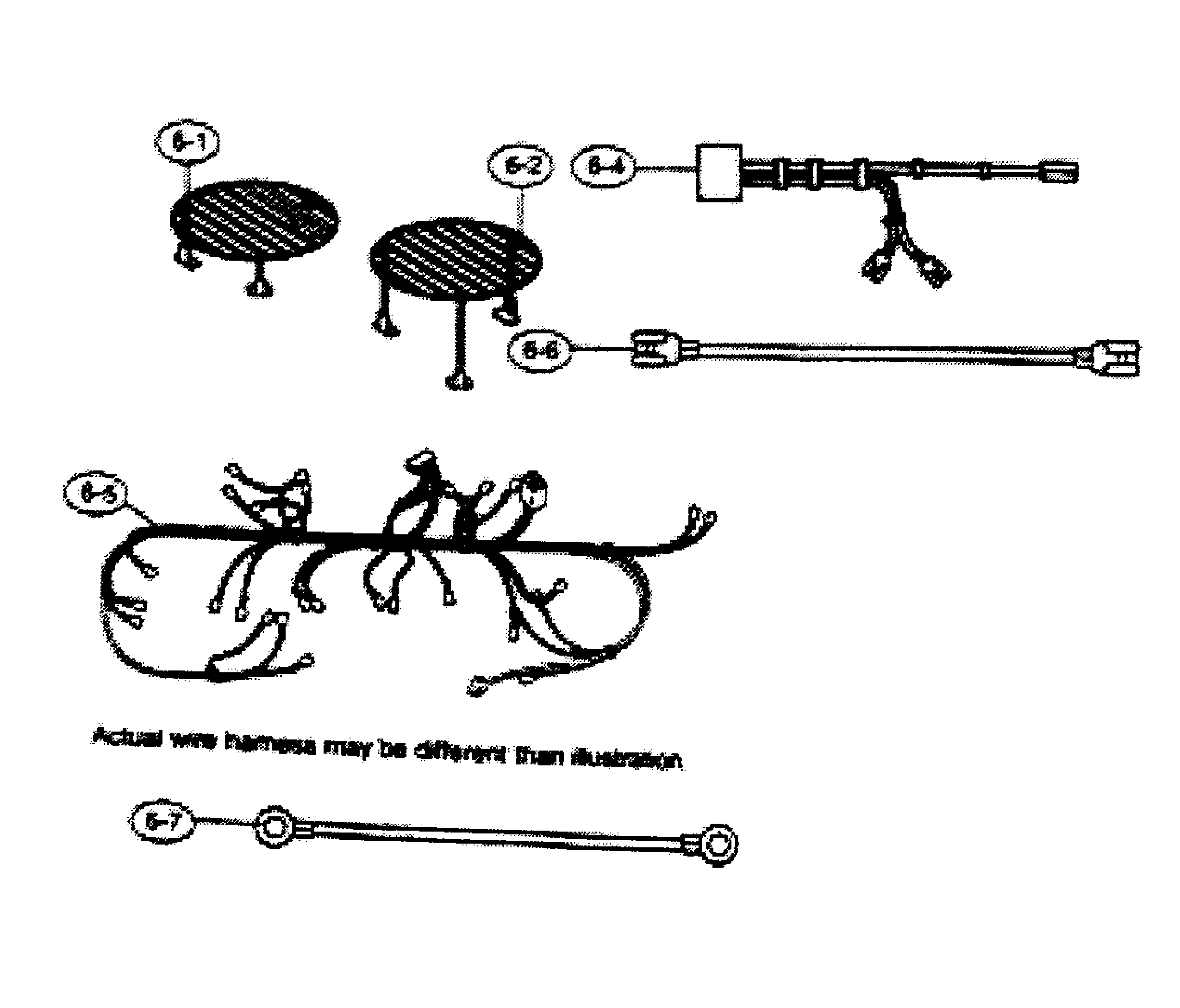

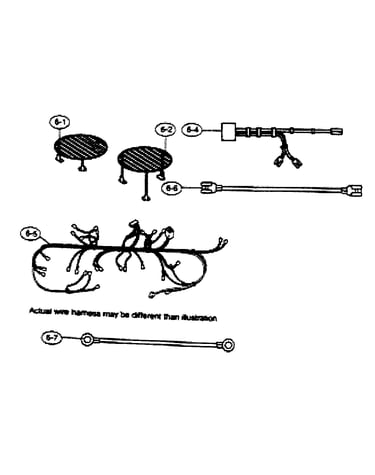

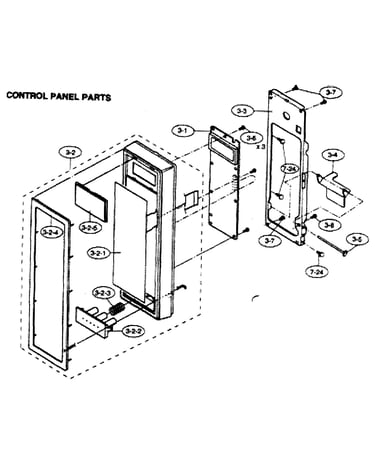

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |

Wave Cover 66490
#423

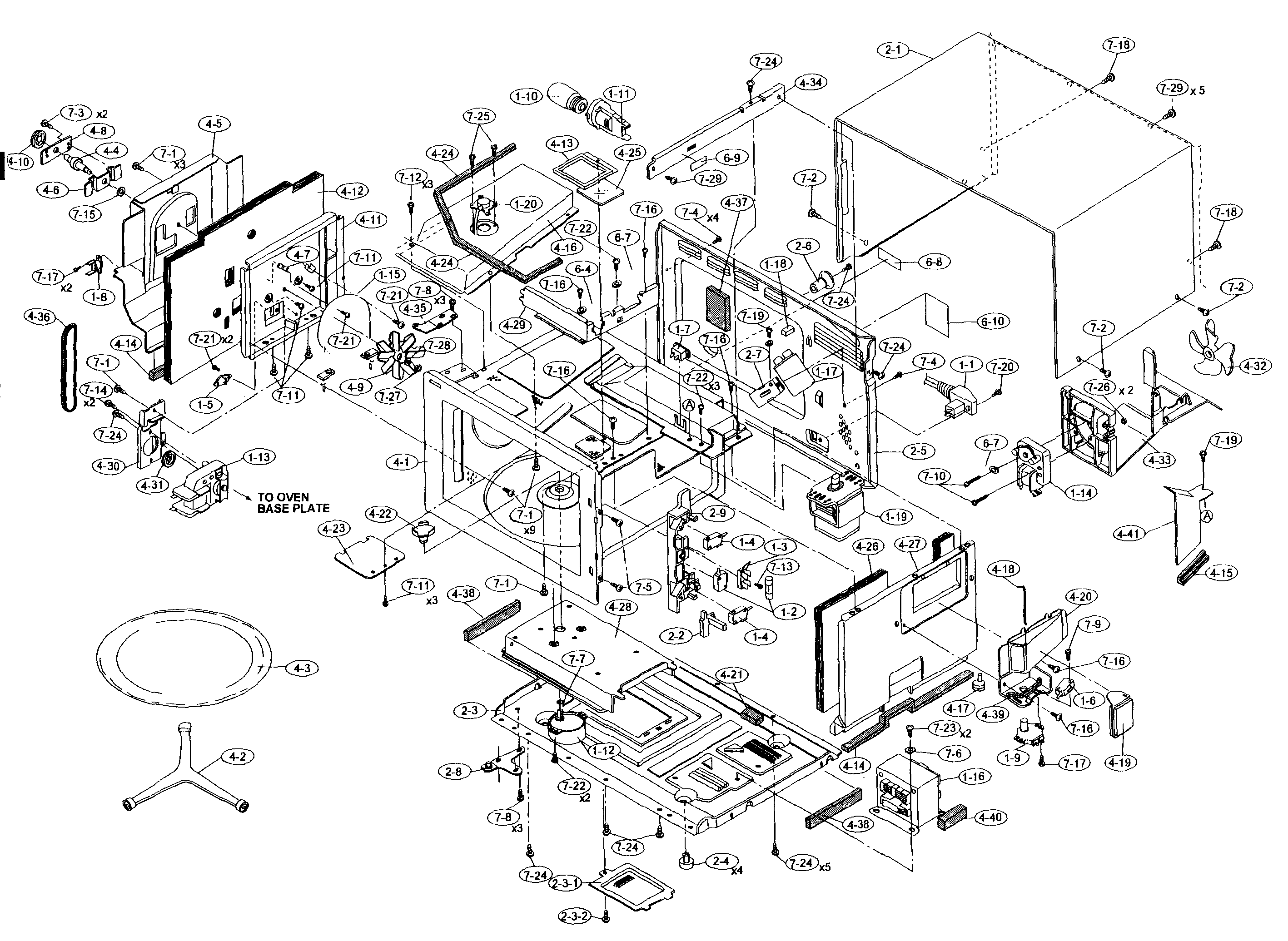

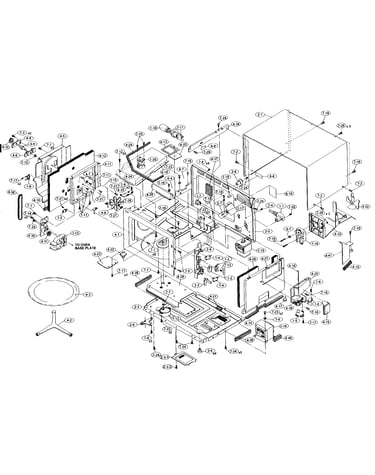

Cabinet parts diagram

Wave cover

Part #66490

In Stock
Screw 66424
#76

Cabinet parts diagram

Screw

Part #66424

This item is not returnable
In Stock
Cushion 66526
#513

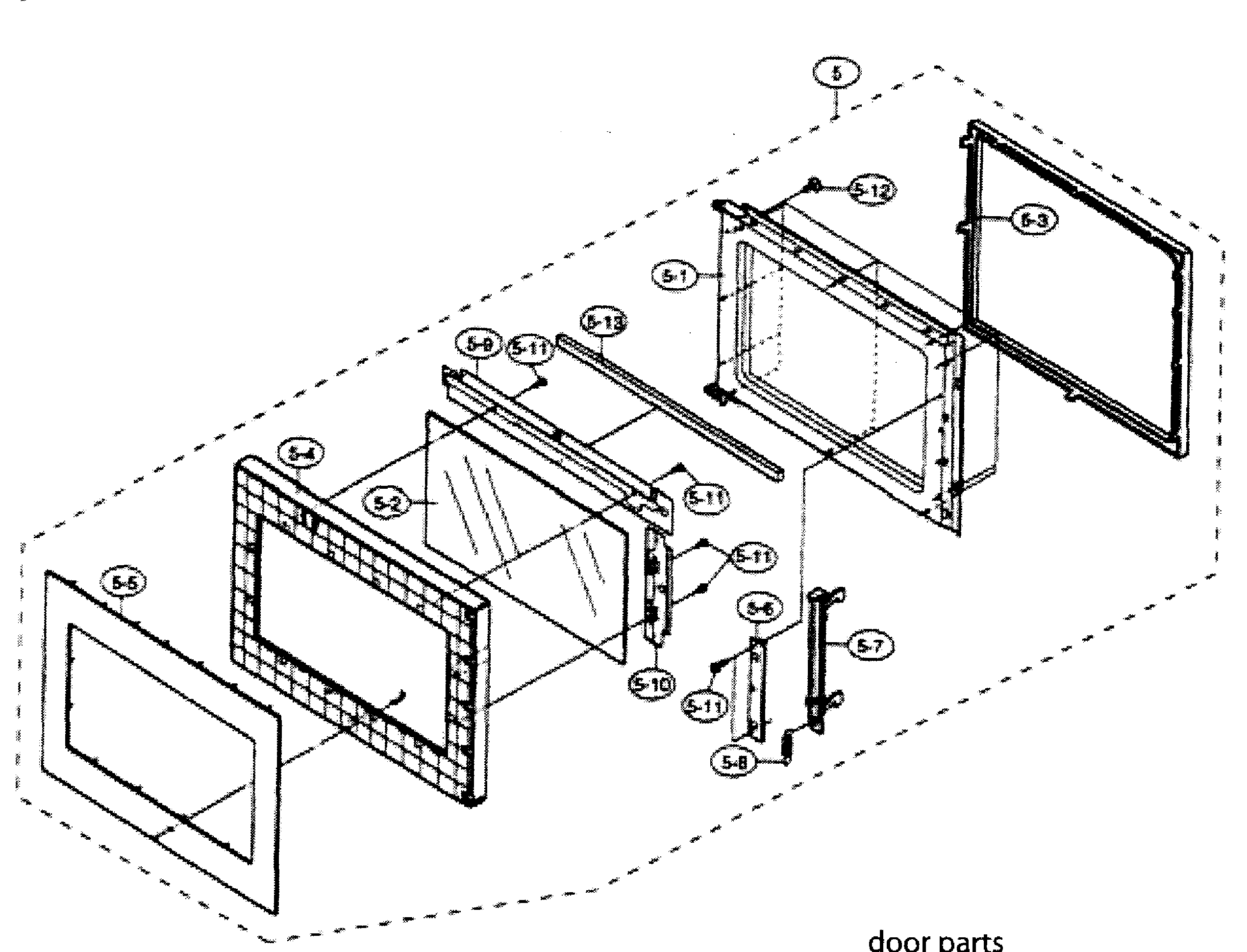

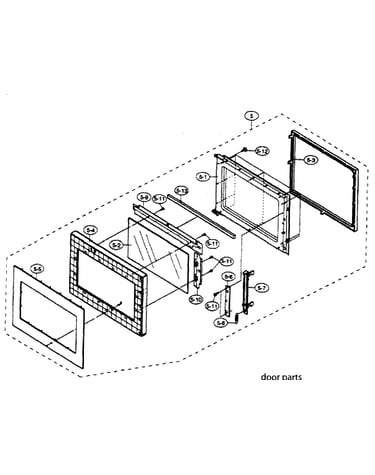

Door assy diagram

Cushion

Part #66526

This item is not returnable
In Stock
Low Hinge 66399
#28

Cabinet parts diagram

Low hinge

Part #66399

This item is not returnable
In Stock
Magnetron 66387
#119

Cabinet parts diagram

Magnetron

Part #66387

The manufacturer no longer makes this part, and there's no substitute part

Cushion 106395
#438

Cabinet parts diagram

Cushion

Part #106395

This item is not returnable
In Stock
Washer 66446
#728

Cabinet parts diagram

Washer

Part #66446

This item is not returnable
In Stock
Cushion 66479
#414

Cabinet parts diagram

Cushion

Part #66479

This item is not returnable
In Stock
Screw 66435
#716

Cabinet parts diagram

Screw

Part #66435

In Stock
Light Glass 66492
#425

Cabinet parts diagram

Light glass

Part #66492

This item is not returnable
In Stock
