Maytag
Countertop Microwave

Model # MMC5086AAW Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMC5086AAW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
"capacitor, H" R0131109
#18

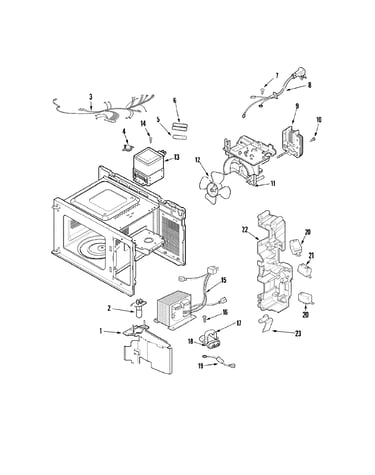

Interior controls diagram

"capacitor, h"

Part #R0131109

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces R0131109. Substitute parts can look different from the original.
$85.65 |
14% OFF MSRP : $100.00
In Stock
Diode Cable R0131079
#19

Interior controls diagram

Diode cable

Part #R0131079

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces R0131079. Substitute parts can look different from the original.
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
"motor, Turn" 53001094
#15

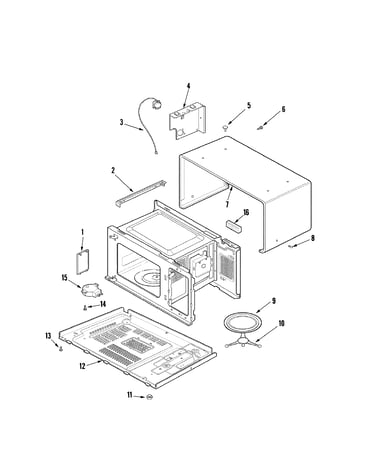

Cavity diagram

"motor, turn"

Part #53001094

Replaced by #WPW10159107

?
Manufacturer substitution
This part replaces 53001094. Substitute parts can look different from the original.
$79.16 |
6% OFF Phone Price : $84.16
In Stock
Screw R0131029
Screw

Part #R0131029

$13.11
In Stock
"switch, Micr" R0131108
#21

Interior controls diagram

"switch, micr"

Part #R0131108

Replaced by #4392027

?
Manufacturer substitution
This part replaces R0131108. Substitute parts can look different from the original.
$69.11 |
20% OFF MSRP : $86.00
In Stock
Lamp Oven Burner R9900373
#2

Interior controls diagram

Lamp oven burner

Part #R9900373

Replaced by #WP8183592

?
Manufacturer substitution
This part replaces R9900373. Substitute parts can look different from the original.
$24.11 |
17% OFF Phone Price : $29.11
In Stock
Magnetron R9900549
#13

Interior controls diagram

Magnetron

Part #R9900549

The manufacturer no longer makes this part, and there's no substitute part

Screw, Tap T R9800411
#10

Interior controls diagram

Screw, tap t

Part #R9800411

The manufacturer no longer makes this part, and there's no substitute part

Button (wht) 53001077
#10A

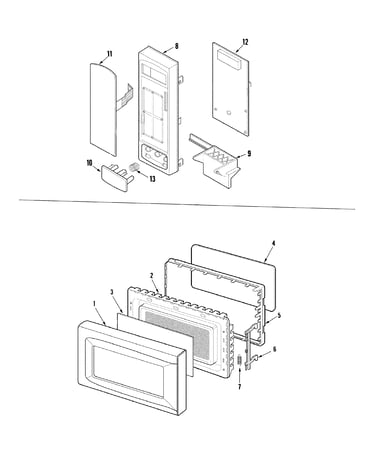

Control/door diagram

Button (wht)

Part #53001077

The manufacturer no longer makes this part, and there's no substitute part
