Kenmore 106628531 17.1 cubic foot coldspot freezer Parts
Here are the diagrams and repair parts for Kenmore 106628531 17.1 cubic foot coldspot freezer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

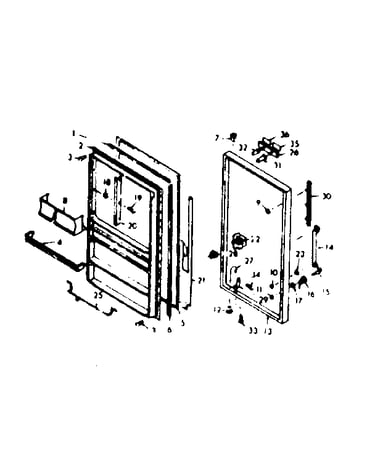

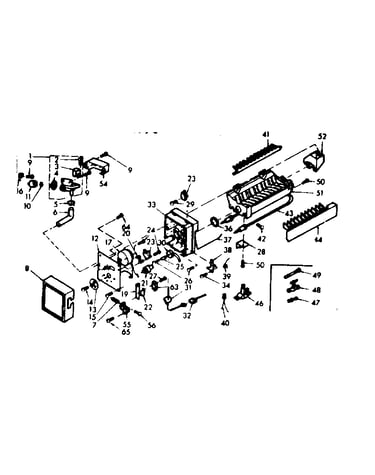

SELECT DIAGRAM
Browse Parts for 106628531 Freestanding Freezers

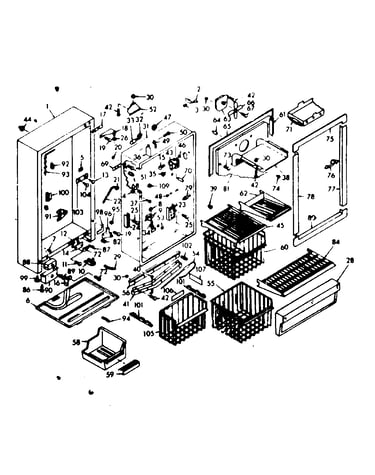

Cabinet parts diagram
Basket
Part #654501
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hinge
Part #655693
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Lens
Part #654507
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Grommet
Part #534348
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Crossover
Part #547745
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Touch Up Kit
Part #72024
The manufacturer no longer makes this part, and there's no substitute part

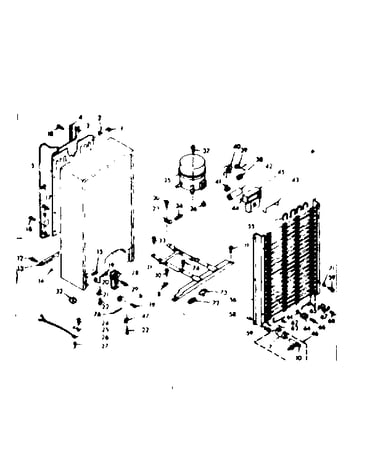

Unit parts diagram
Case
Part #531339
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Panel
Part #658741
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Heater
Part #531660
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Drain Pan
Part #517082
The manufacturer no longer makes this part, and there's no substitute part
