Amana PTH09300J/P1169124R packaged terminal air conditioner Parts

Name: Amana PTH09300J/P1169124R Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: PTH09300J/P1169124R
Availability: InStock

Here are the diagrams and repair parts for Amana PTH09300J/P1169124R packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

By Part

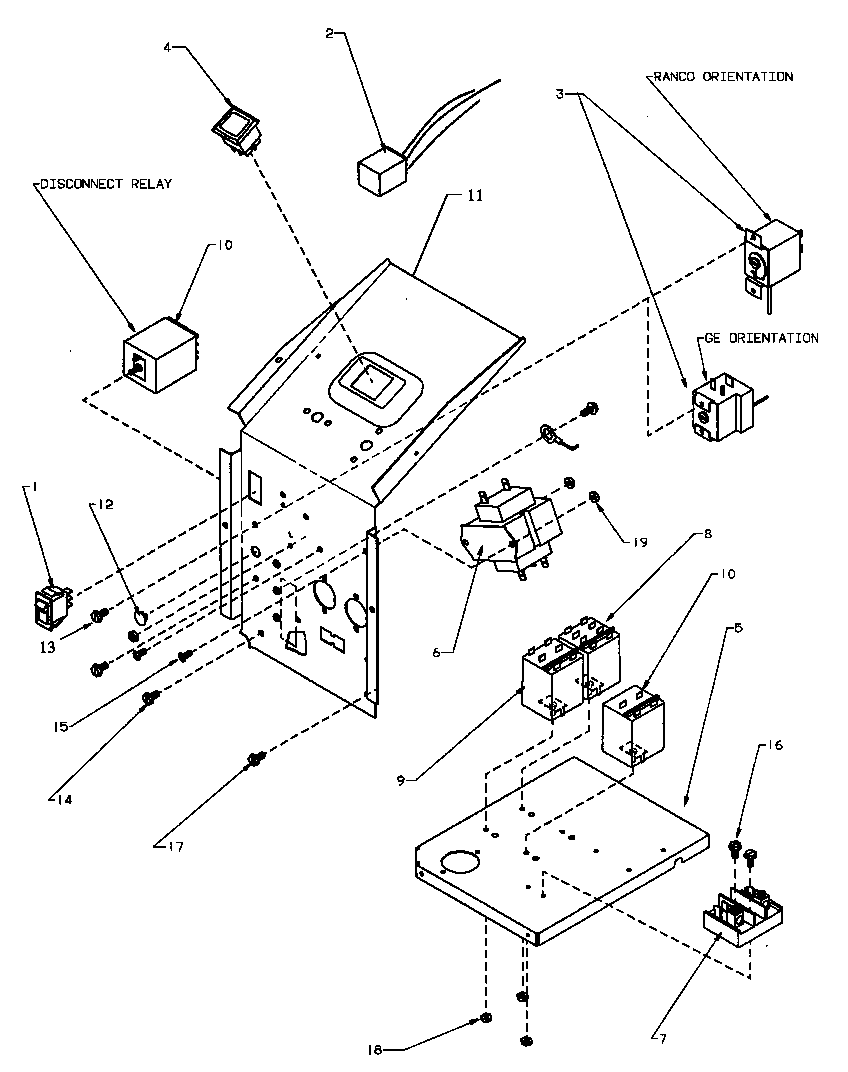

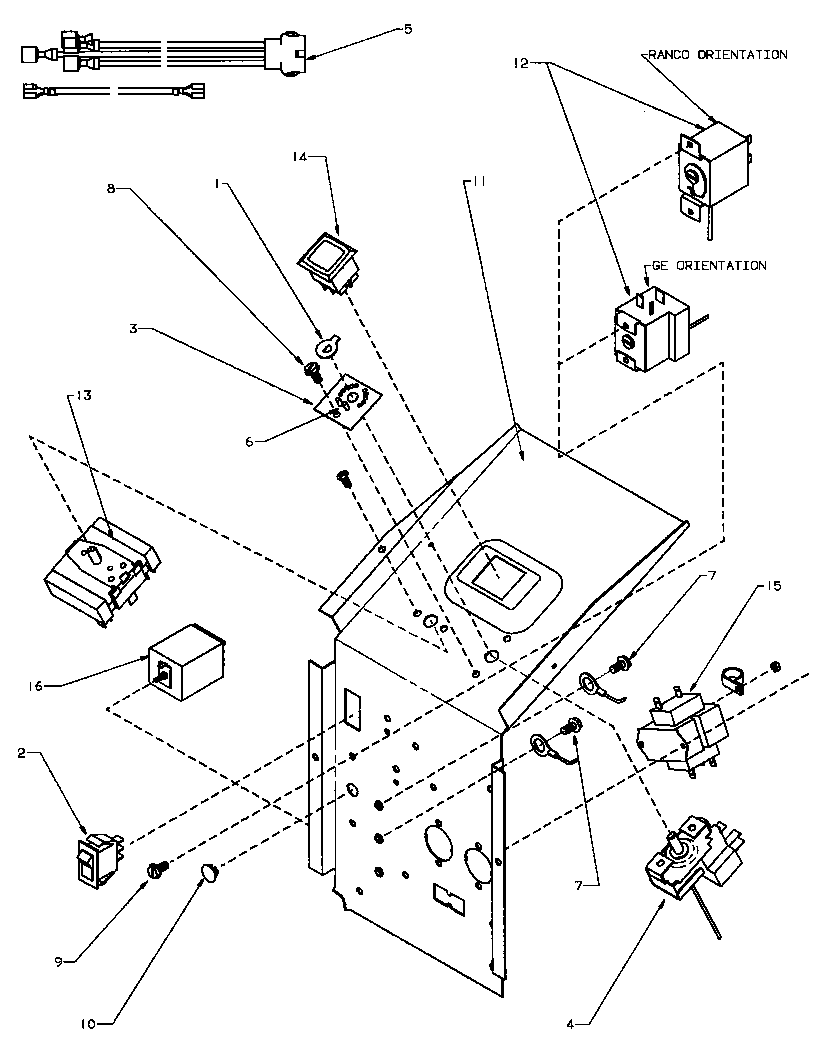

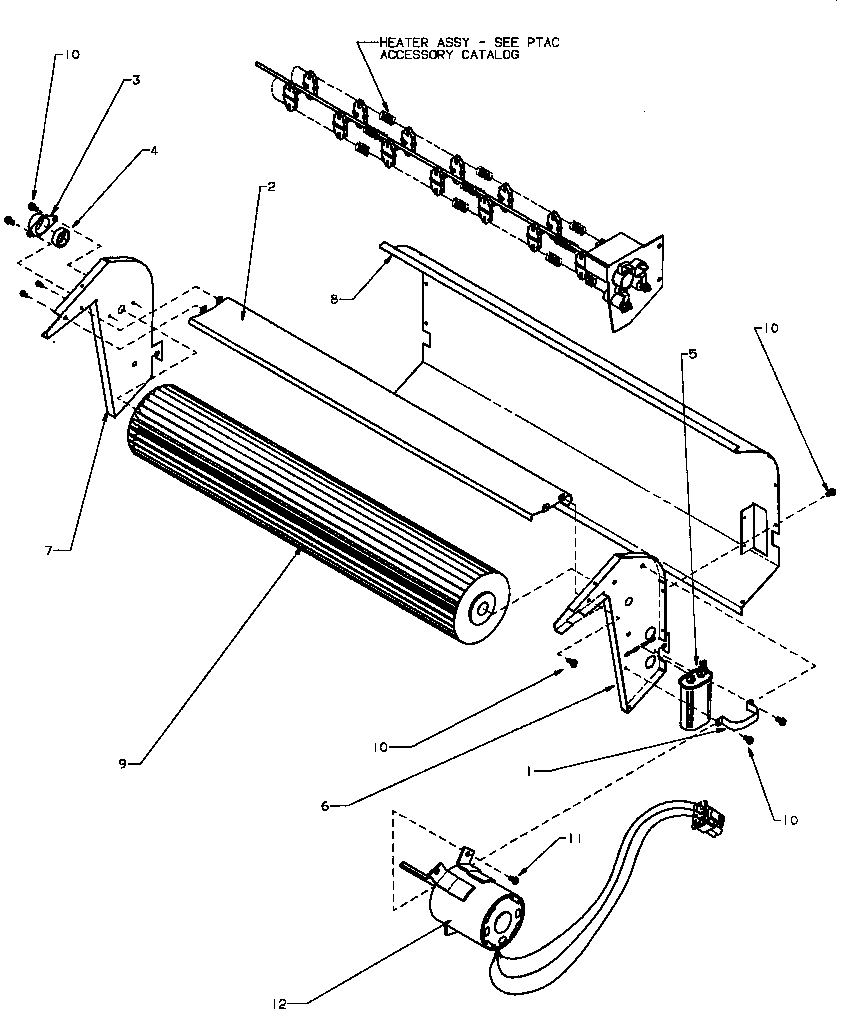

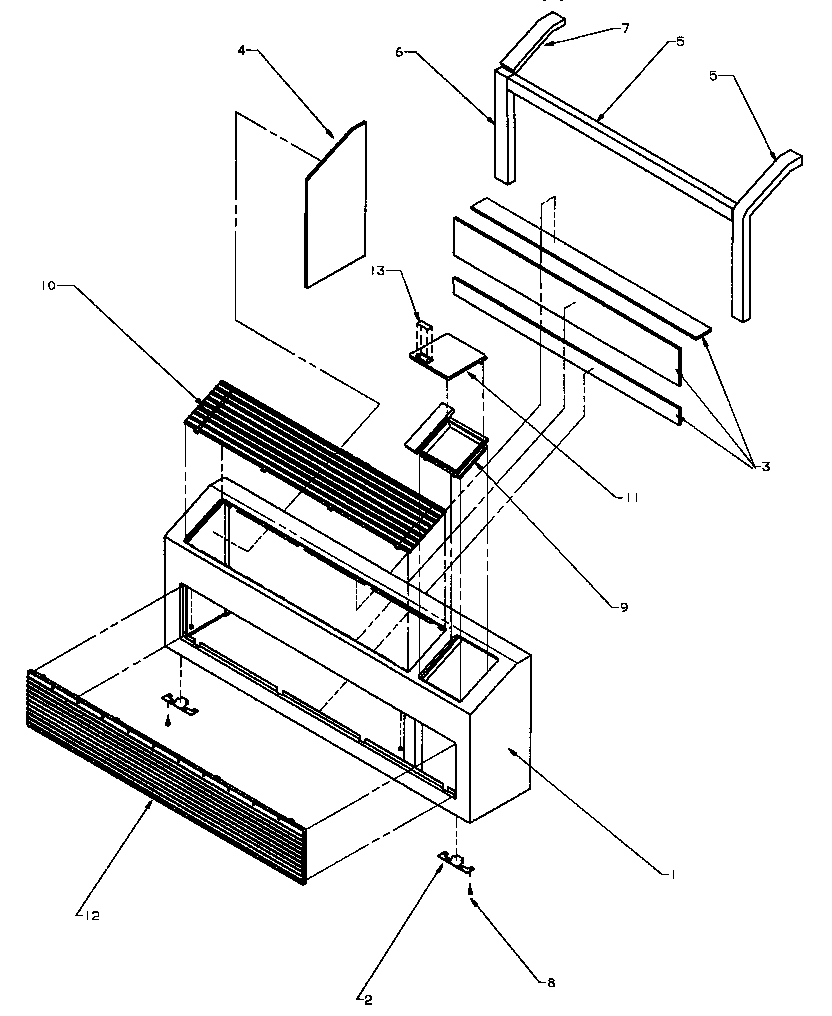

SELECT DIAGRAM

Browse Parts forPTH09300J/P1169124R Packaged Terminal Air Conditioner

Screw
Part #M0211216
Replaced by #WP90767
Manufacturer substitution
This part replaces M0211216. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty

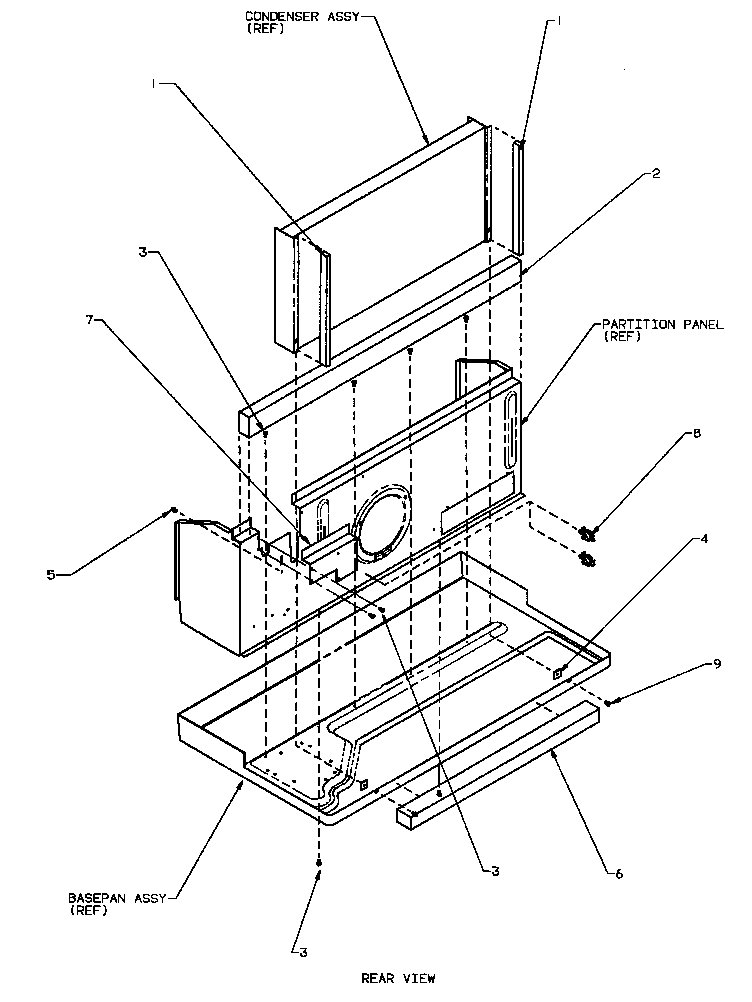

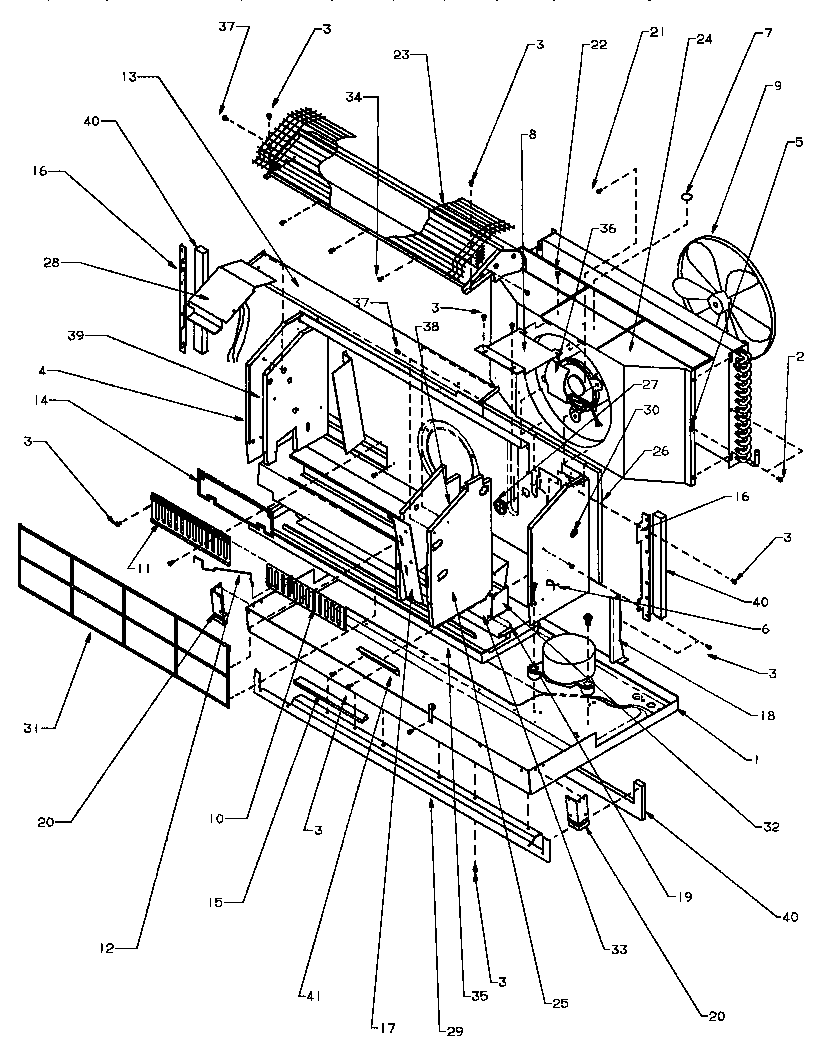

Chassis assembly diagram
Screw
Part #M0216716
Replaced by #WP90767
Manufacturer substitution
This part replaces M0216716. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Chassis assembly diagram
Frame Screw
Part #M0241116
Replaced by #WP693995
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
In Stock
$38.72
Qty

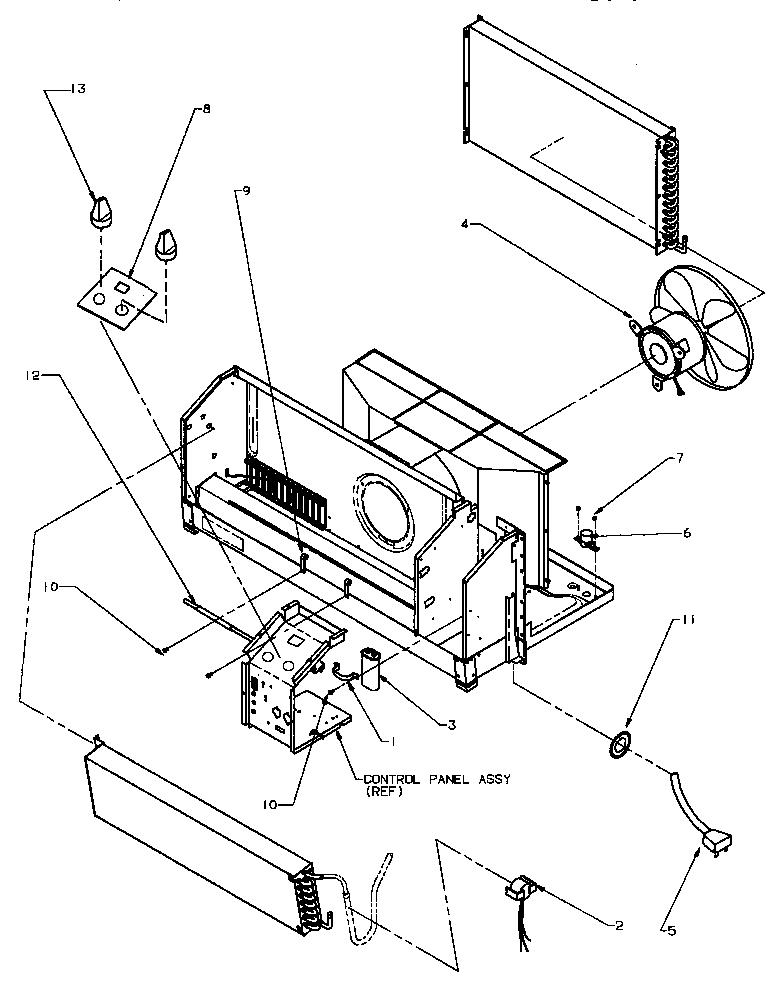

Miscellaneous chassis assembly parts diagram
Grommet
Part #M0282015
Replaced by #WP487939
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.82
17% OFF Phone Price : $5.82
Qty
Chassis assembly diagram
Screw
Part #M0211217
Replaced by #WP489464
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.67
12% OFF Phone Price : $8.67
Qty
Terminal Nut
Part #A3436601
Replaced by #WP776338
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
In Stock
$42.74
Qty

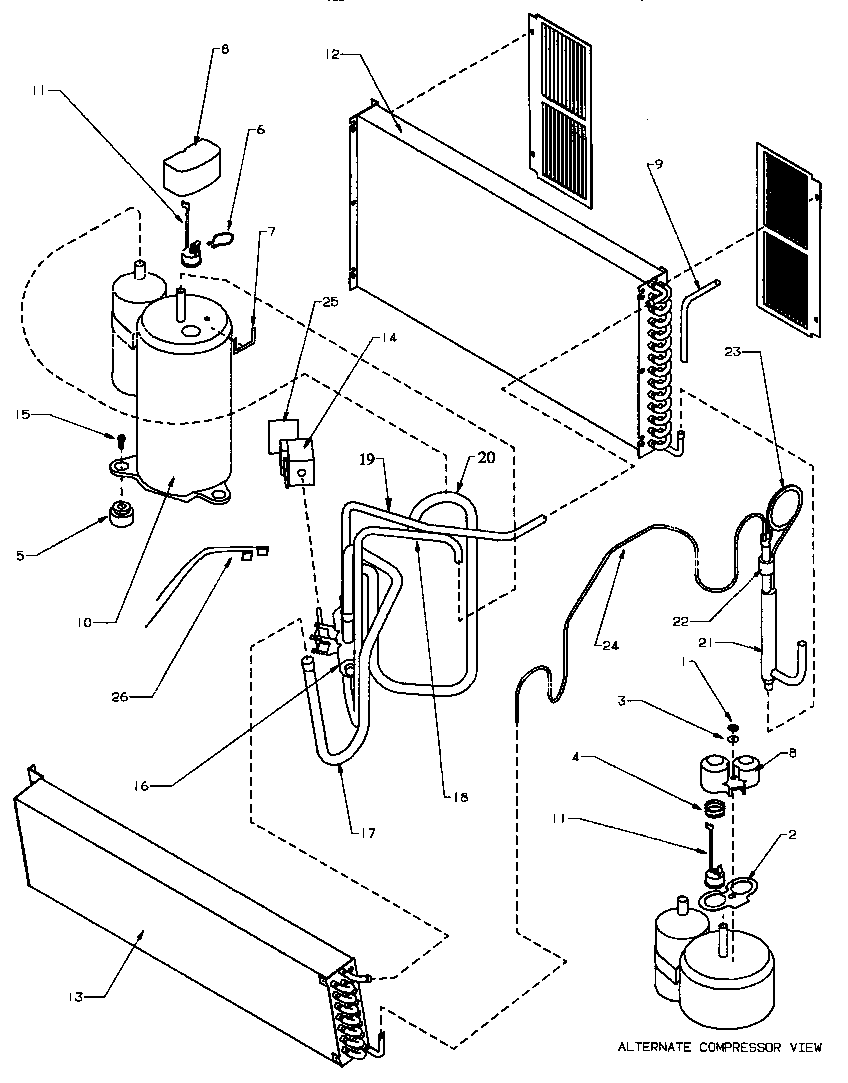

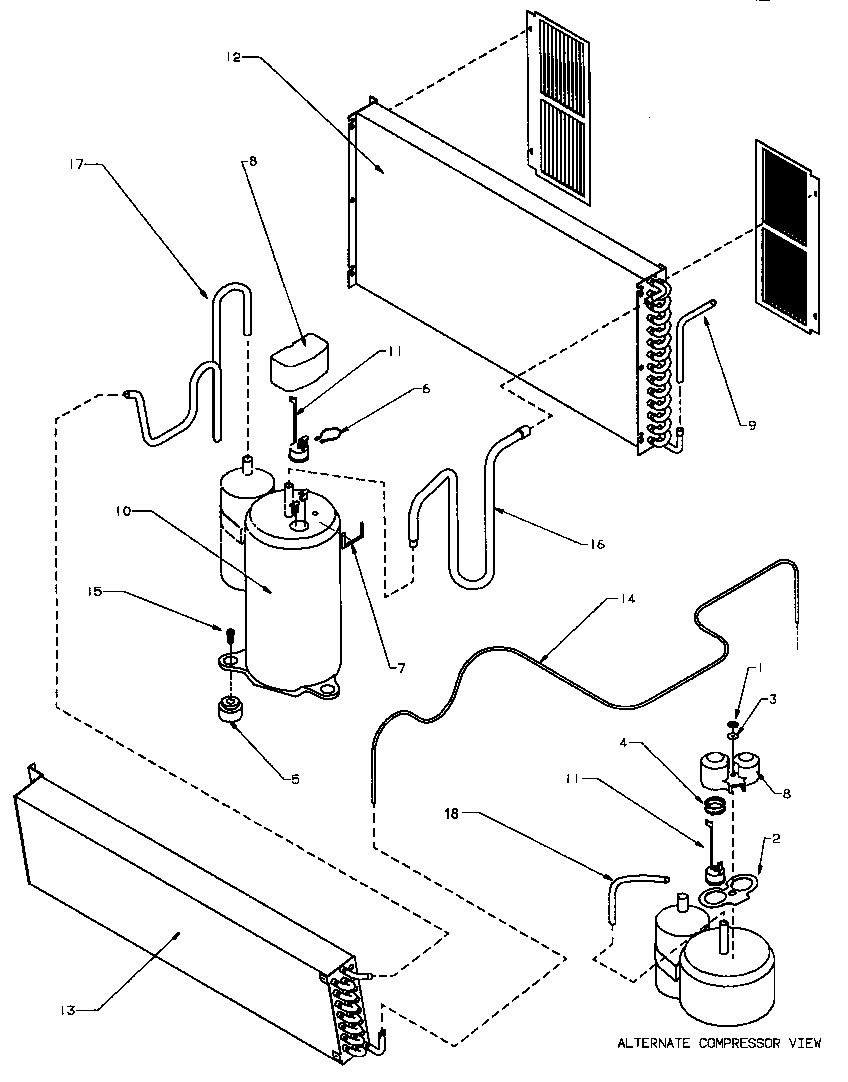

Refrigeration system-heat pump models diagram
Strainer
Part #B1257807
Replaced by #B1257808
Manufacturer substitution
This part replaces B1257807. Substitute parts can look different from the original.
In Stock
$46.78
Qty
Use M0253612
Part #M0253651
Replaced by #M0253610
Manufacturer substitution
This part replaces M0253651. Substitute parts can look different from the original.
In Stock
$28.02
Qty
Refrigeration system-heat pump models diagram
Tube-capillary, Evap Side (used With Toshiba 2p14s3r236a
Part #10630001
The manufacturer no longer makes this part, and there's no substitute part
Plug
Part #M0310011
The manufacturer no longer makes this part, and there's no substitute part
