Frigidaire
Room Air Conditioner

Model # FRP77PTV3A0 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FRP77PTV3A0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

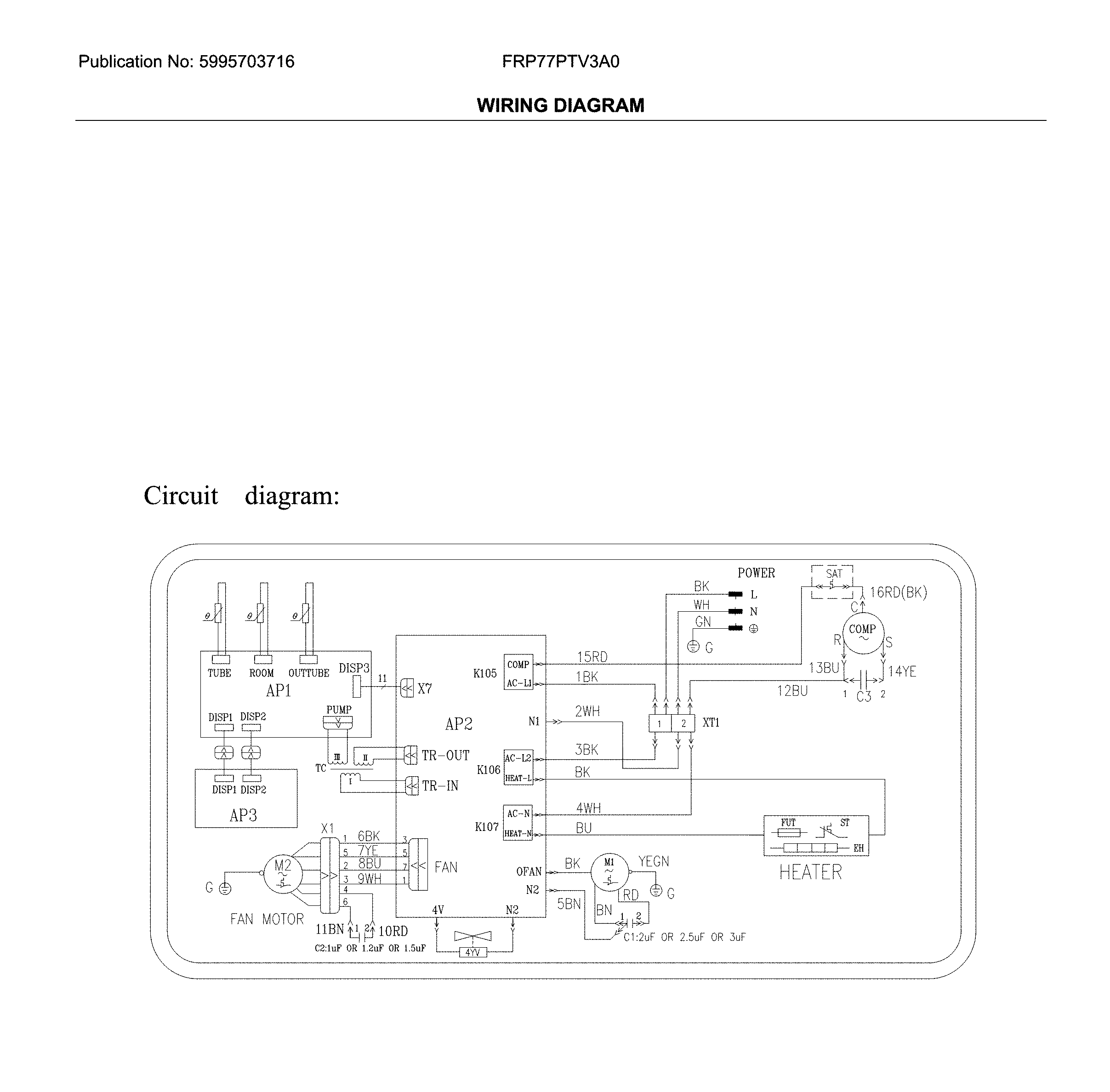

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Front Panel 5304483945
#27

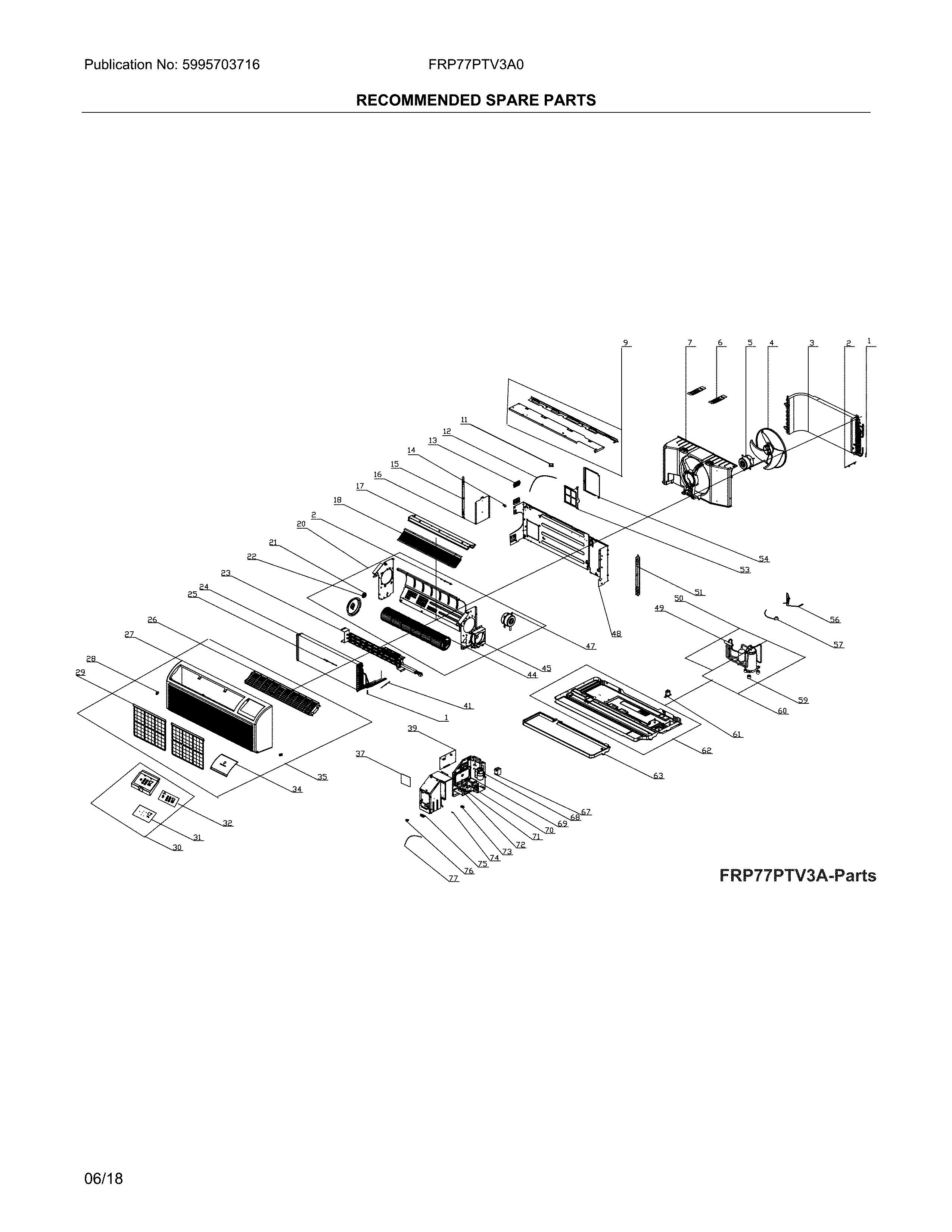

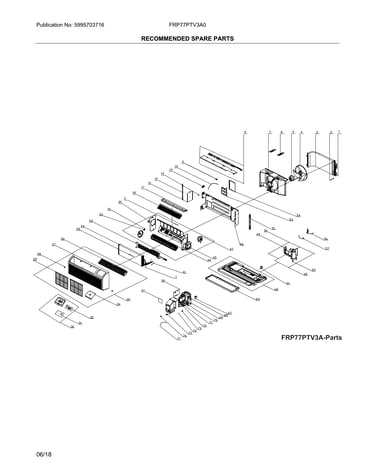

Recommeneded spare parts diagram

Room air conditioner front panel

Part #5304483945

$153.86
In Stock
Grille 5304483944
#26

Recommeneded spare parts diagram

Grille

Part #5304483944

$109.76
In Stock
Membrane 5304483948
#31

Recommeneded spare parts diagram

Membrane

Part #5304483948

$23.56
In Stock
Heater 5304485177
#23

Recommeneded spare parts diagram

Heater

Part #5304485177

$288.96
In Stock
Support 5304500776
#15

Recommeneded spare parts diagram

Support

Part #5304500776

$13.70
In Stock
Room Air Conditioner Electronic Control Board 5304483972
#37

Recommeneded spare parts diagram

Room air conditioner electronic control board

Part #5304483972

$172.48
In Stock
Transformer 5304485188
#69

Recommeneded spare parts diagram

Transformer

Part #5304485188

$97.14
In Stock
Thermistor 5304459793
#41

Recommeneded spare parts diagram

Thermistor

Part #5304459793

$49.53
In Stock
Capacitor 5304508681
#71

Recommeneded spare parts diagram

Capacitor

Part #5304508681

$20.84
In Stock
Fuse 5304510771
#74

Recommeneded spare parts diagram

Fuse

Part #5304510771

$8.22
In Stock
